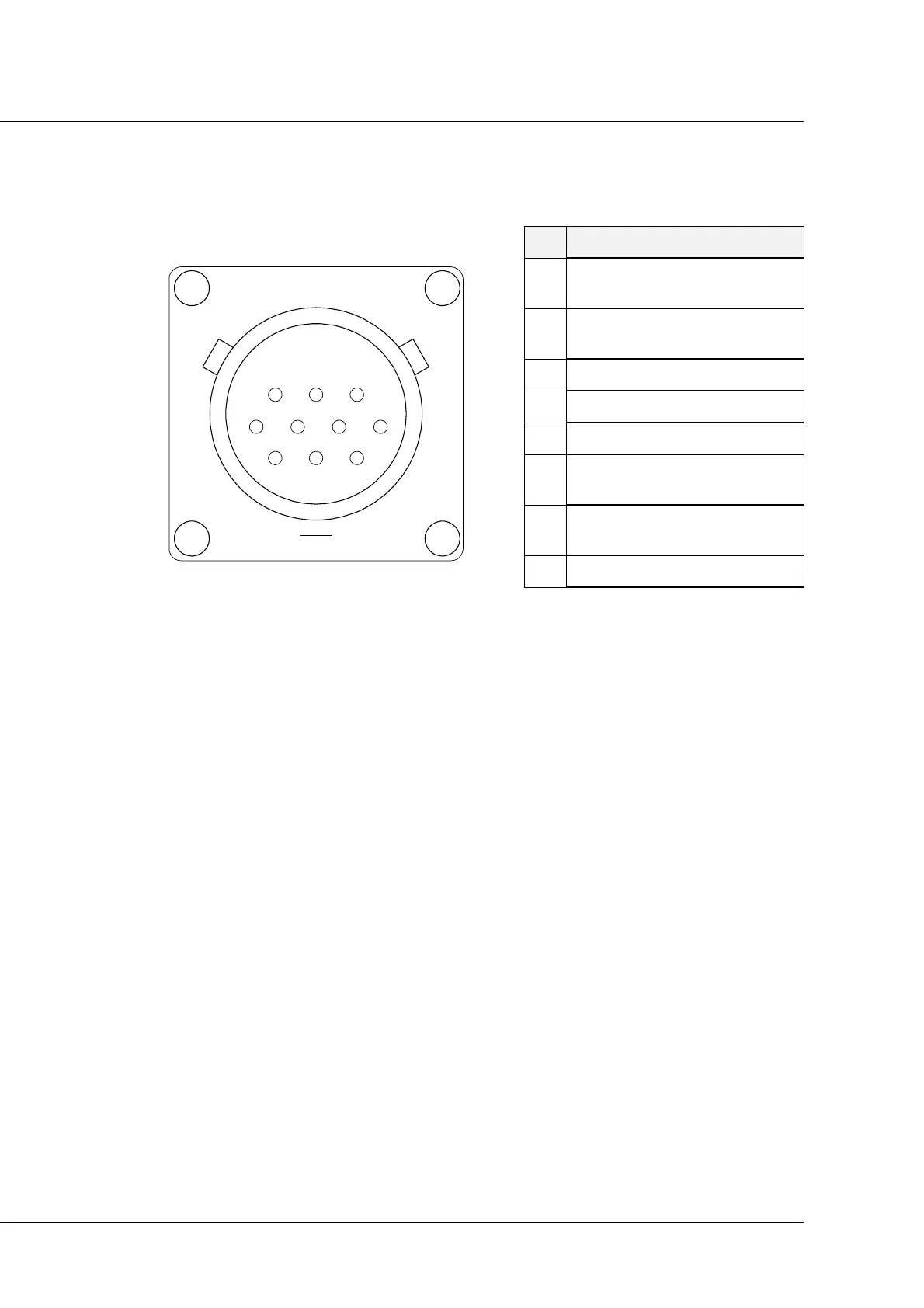

4.10.1 ES332 Sensor Connector + Thermal alarm
PIN DESCRIPTION
AOUTPUT S2
(Tool released)
BOUTPUT S1+S4
(Tool locked)
C OUTPUT S5 (no tool)
D 24V CC sensor feed: S1, S2, S5
E 0V sensor feed: S1, S2, S4, S5
F Motor thermal alarm
BIMETALLIC N.C. 130°C
G Motor thermal alarm
BIMETALLIC N.C. 130°C
J OUTPUT S2 (Tool released)
HAB
FED
GK J C
