6.5.1 Tool holder cone
The axial force exerted on the tool holder by the locking system is maintained constant
for a minimum duration of 1.000.000 tool change cycles.
1 Tool Change Cycle = Tool Locked / Tool Released / Tool Locked.
All electrospindles of the manufacturer are equipped with a mechanical reaction
system that neutralises the axial force of the piston on the shaft during the tool
change phase, thus guaranteeing the integrity of the precision bearings.

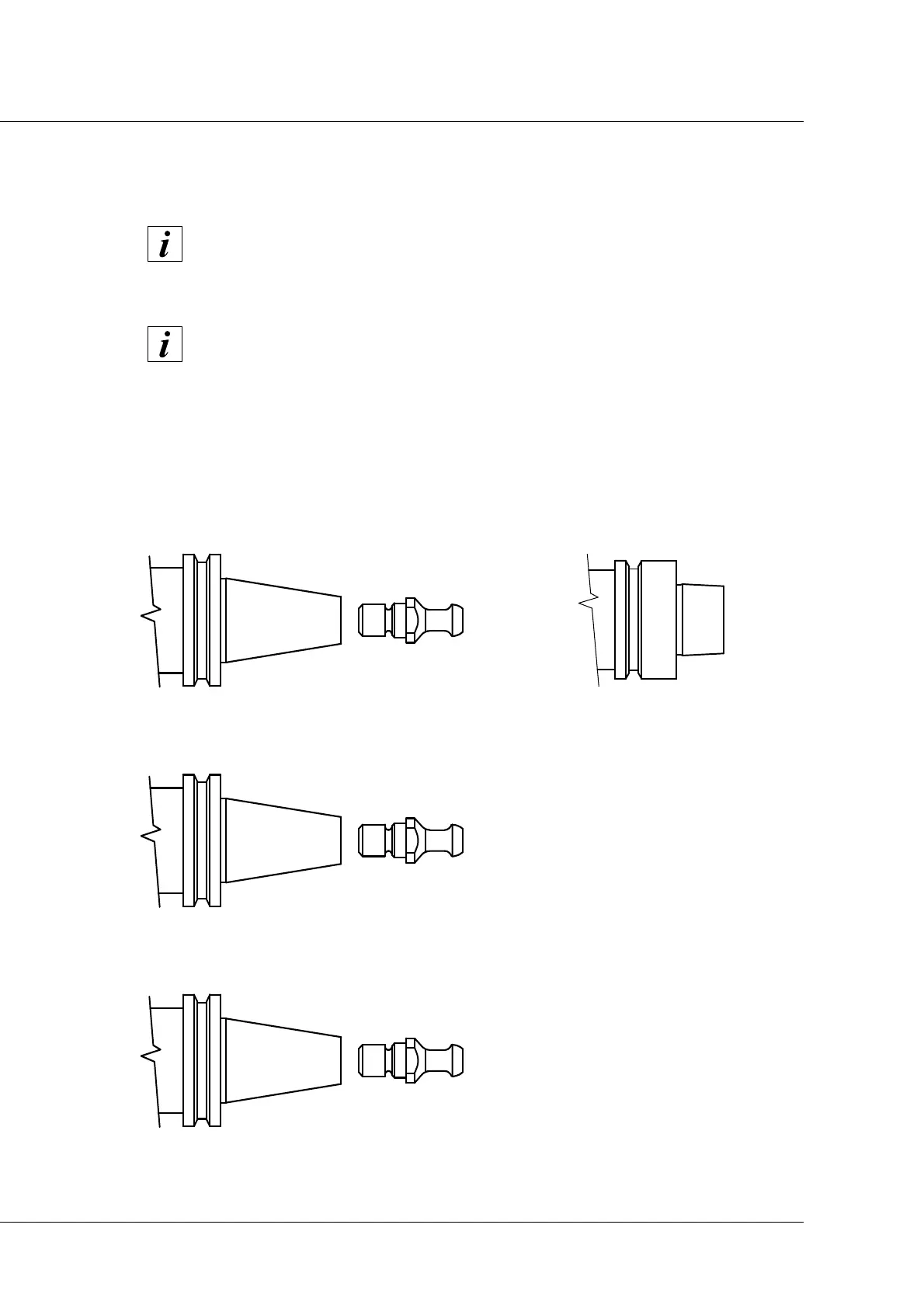

CONE ISO30
DIN69871
HSD SCREW
DOWEL
0804H0009
HSK CONE
DIN69893
CONE ISO30
DIN69871
SCREW
DOWEL
MAS 403 PT1
CONE ISO30
DIN69871
SCREW
DOWEL
BT30
