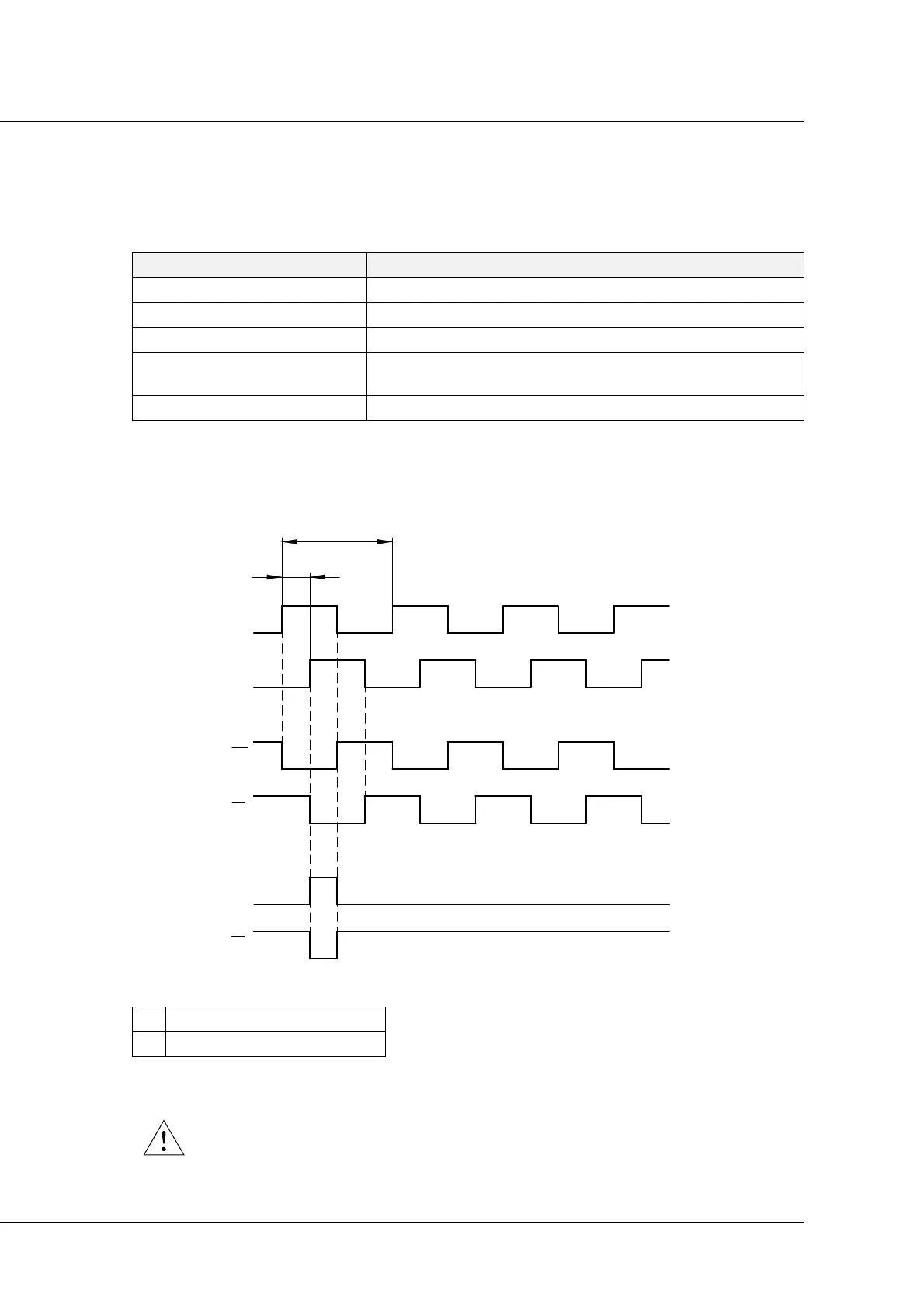

6.9.3 Lenord+Bauer Square Wave Encoder technical
specifications
Lenord+Bauer Square Wave Encoder Signals
CHARACTERISTICS VALUE
Rated power supply 5V DC +/- 5%
Operating temperature -30°C ÷ +85°C (-22°F ÷ +185°F)
Max. operating altitude 2000m (6500ft)
Signal input 1024 impulses per rev. + zero mark
(256 impulses multiplied x4 internally)
Signal output TTL electrical levels compatible (0V, +5V line driver)
T Period
D Phase displacement (D=T/4)
A voltage level higher than the one specified (5V ±5%) may damage the encoder
reader.
D
T
Z
Z
B
B
A
A
5 V
0 V
5 V
0 V
5 V
0 V
5 V
0 V
5 V
0 V
5 V
0 V
