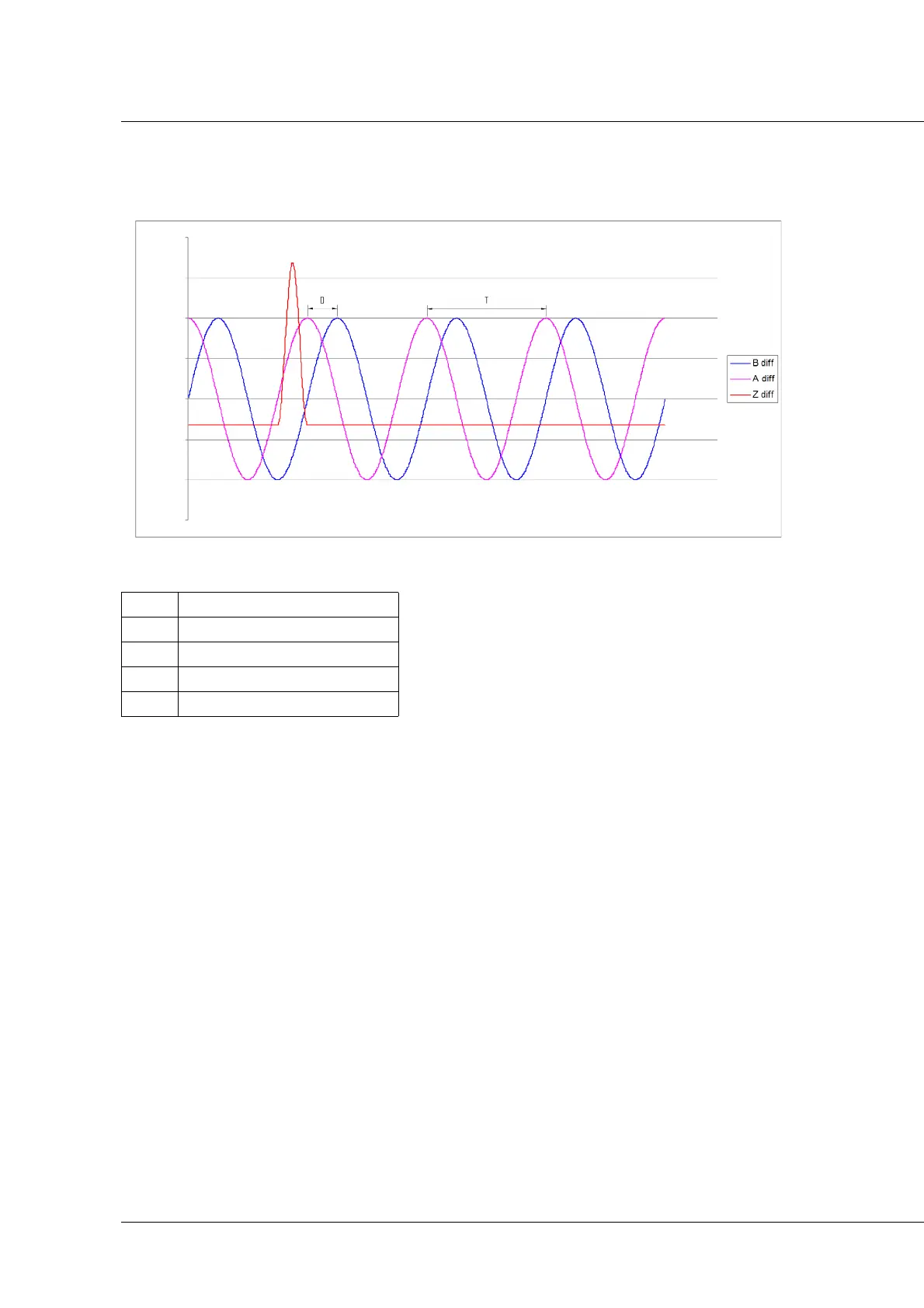

Trend of differential signals over time:
TPeriod
D Phase displacement (D=T/4)
A diff. (A) - (A-)
B diff. (B) - (B-)
Z diff. (Z) - (Z-)
1
0,75
0,5
0,25
0
-0,75
-0,5
-0,25
