3 System Architecture
3.1 System Architecture
3.1.1 Components of the Single-Row 1200 mm Wide Aisle
Containment
Overview
The single-row 1200 mm wide aisle containment can be a cold or hot aisle containment that
involves the following components: IT cabinet, network cabinet, PDC (refer to the precision
PDC or integrated UPS cabinet), air conditioner, battery cabinet, skylight, end door, and cable
trough. Figure 3-1 shows the components of a cold aisle containment.

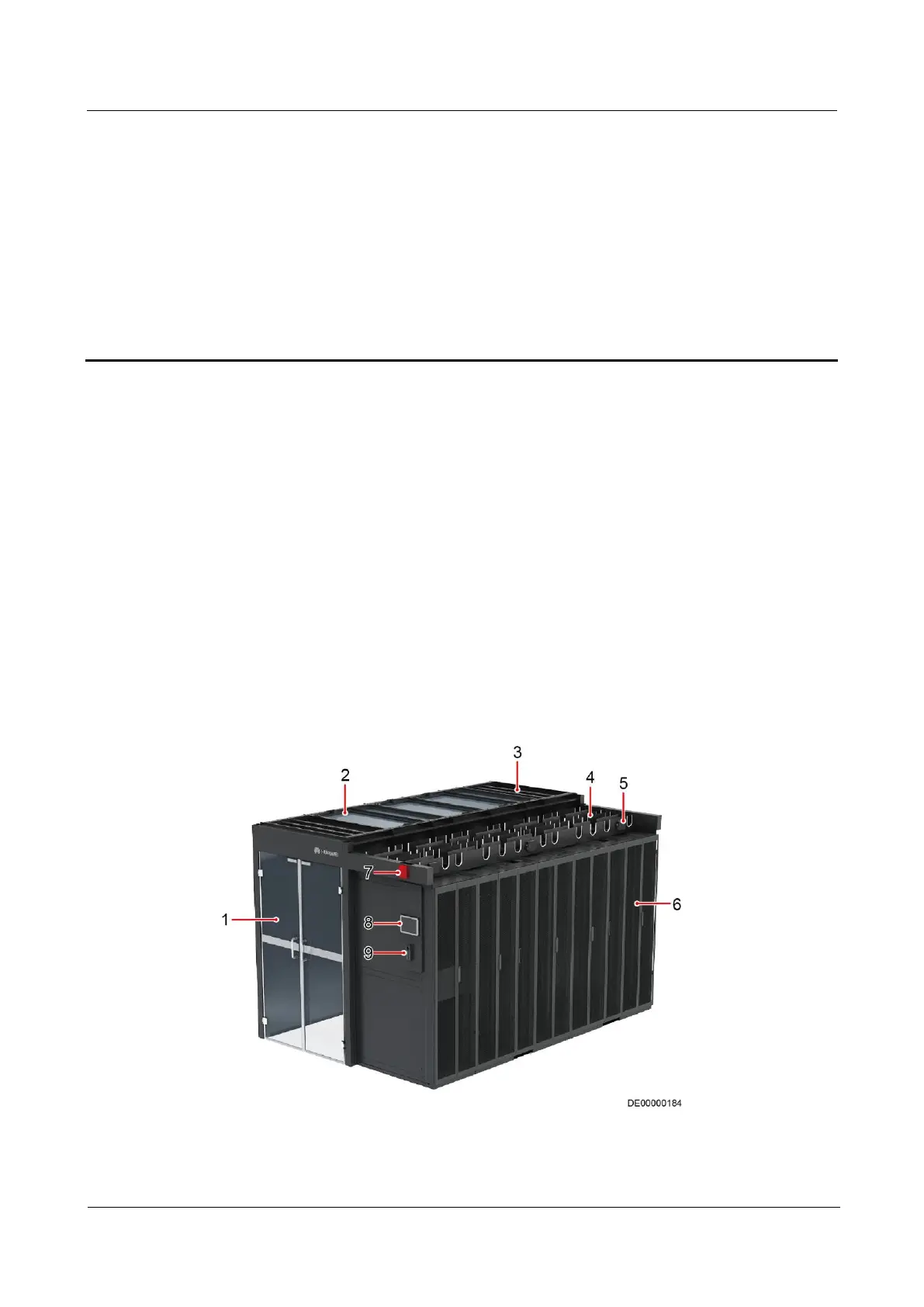

Figure 3-1 Components of the single-row 1200 mm wide cold aisle containment (power supply
and distribution cabinet)
(1) End door
(2) Flat or rotating skylight
(3) Control skylight
