3.2.4 Precision PDC
The precision PDC provides the following features:
⚫
Modular design, facilitating capacity expansion and backup
⚫
Compatible with cabinets of low to high power density
Figure 3-21 and Figure 3-21 show the precision PDC with a single input.

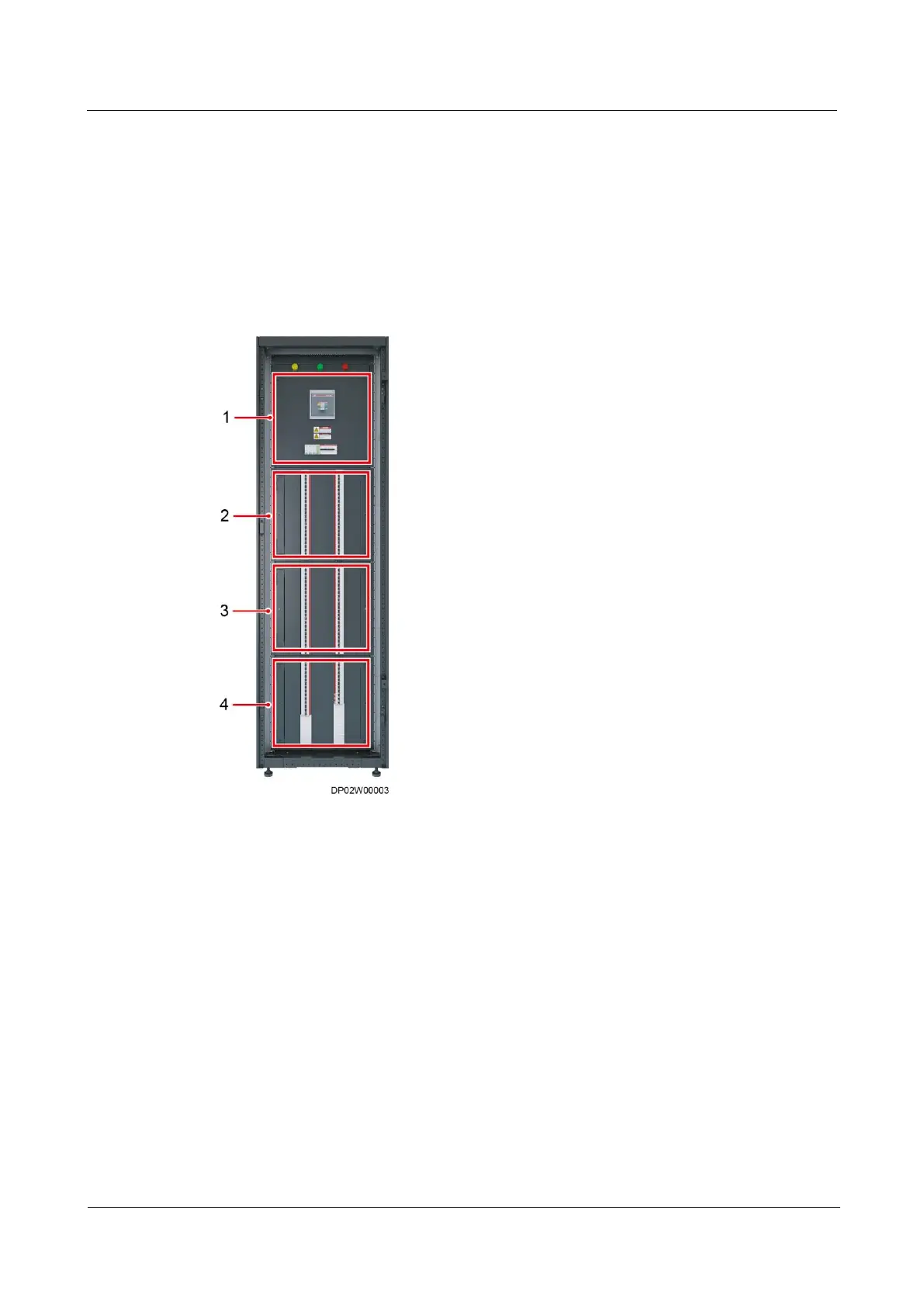

Figure 3-21 Precision PDC with a single input
(1) Input module
(2) Output module 1
(3) Output module 2
(4) Output module 3
