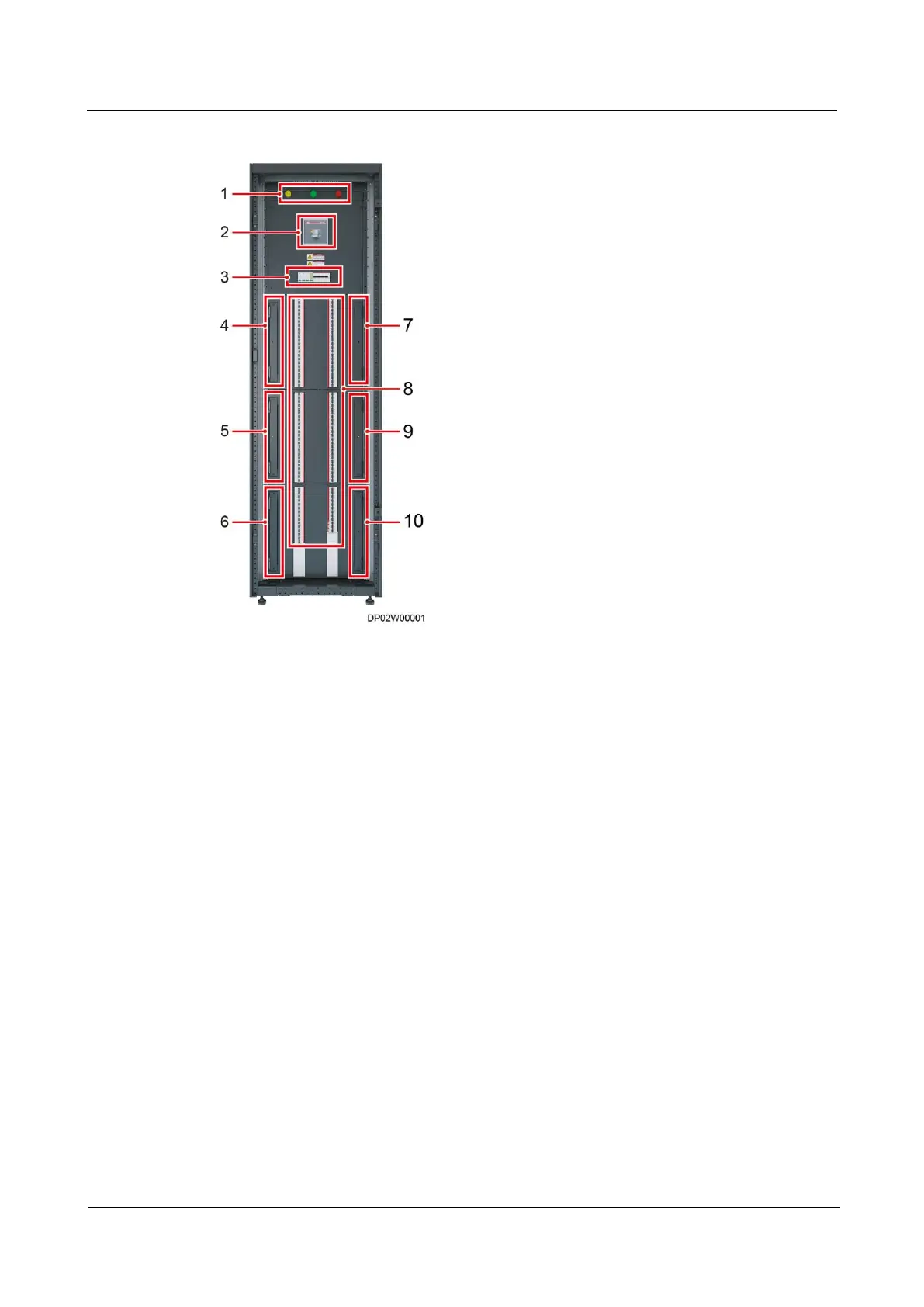

Figure 3-22 Precision PDC with a single input
(1) Indicators
(2) MCCB input circuit breaker
(3) SPD and SPD circuit breaker
(4) Monitoring board 1
(5) Monitoring board 2
(6) Monitoring board 3
(7) Monitoring board 4
(8) MCB output circuit breaker
(9) Monitoring board 5
(10) Monitoring board 6
Figure 3-23 and Figure 3-23 show the precision PDC with two inputs.
