Product Description (ECC800)
95
Indicat
or
Col
or
Name
Status
Description
Blinking
The indicator blinks at super short
intervals for 0.5s (blinking at 10 Hz,
on for 0.05s and then off for 0.05s)
and then turns off for 0.5s. The
cycle lasts for 10s.
ALM
Red
Alarm indicator
Steady on
A system failure alarm is generated.
Off
No system alarm is generated.
3.4.13 Smart ETH Gateway
A smart ETH gateway allows the extension of the 53.5 V DC power supply and FE
communication for the ECC800 and can be flexibly deployed in a modular data center.
Figure 3-67 shows a smart ETH gateway.

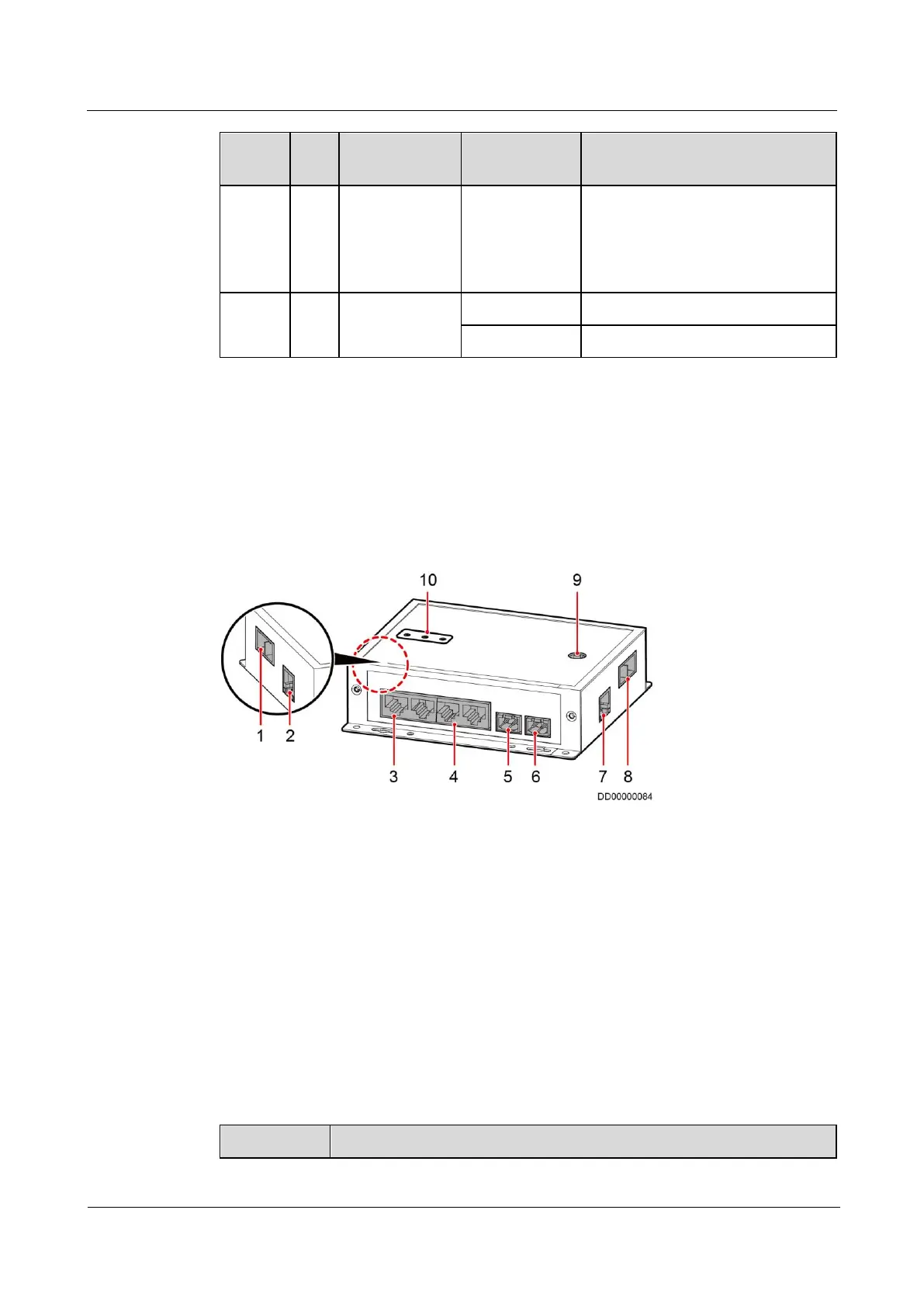

Figure 3-67 Smart ETH gateway
(1) PWR_IN
cascading power port
(2) FE_1 cascading
signal port
(3) PoE_1–2 ports
(4) PoE_3–4 ports
(5) 48V_OUT1
power output port
(6) 48V_OUT2
power output port
(7) FE_2
cascading signal
port
(8) PWR_OUT
cascading power port
(9) BLINK button
(10) Status indicator
Specifications
Table 3-63 lists the environmental specifications for a smart ETH gateway.
Table 3-63 Technical specifications for a smart ETH gateway
Item
Specifications
