3.2.3 Integrated UPS Cabinet
The integrated UPS cabinet has the following features.
⚫
Uses a unified architecture, and provides reliable quality, comprehensive functions, and
consistent appearance.
⚫
Integrates an ATS or MCCB and components for distributing power to IT equipment, air
conditioners, lights, and UPSs.

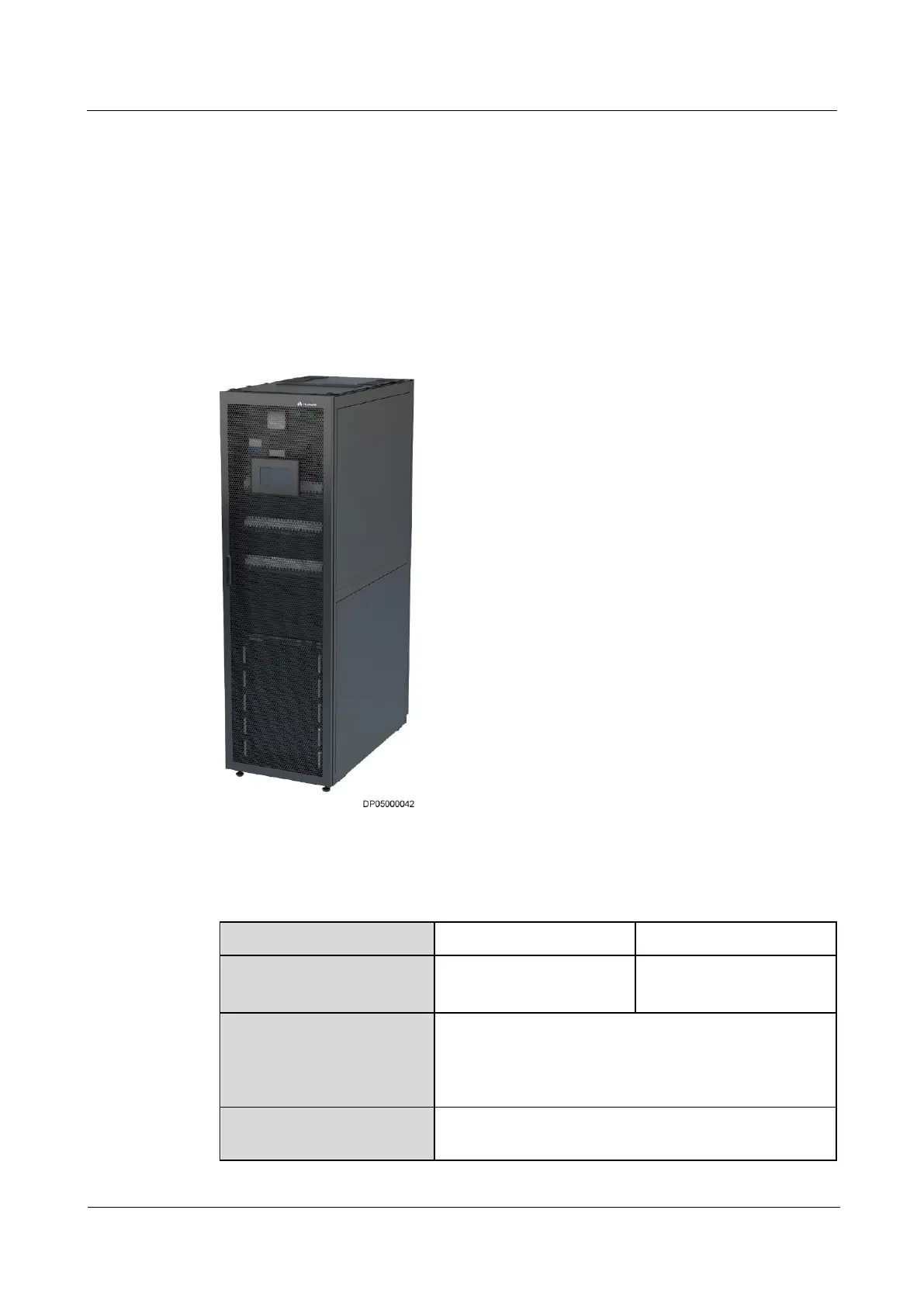

Figure 3-20 shows an integrated UPS cabinet.
Figure 3-20 Integrated UPS cabinet
Table 3-7 lists the configurations of an integrated UPS cabinet.
Table 3-7 Structural specifications of an integrated UPS cabinet
Configuration
N+1 Scenario
2N Scenario
Input mode
Dual-route ATS
250 A
Single-route MCCB
250 A
Power distribution circuit
breakers for air
conditioners
40 A/1P x 18 (applicable to the air conditioners with only
cooling function)
63 A/1P x 6 (applicable to the air conditioners with
heating and humidification functions)
Power distribution circuit
breakers for lights
10 A/1P x 3
