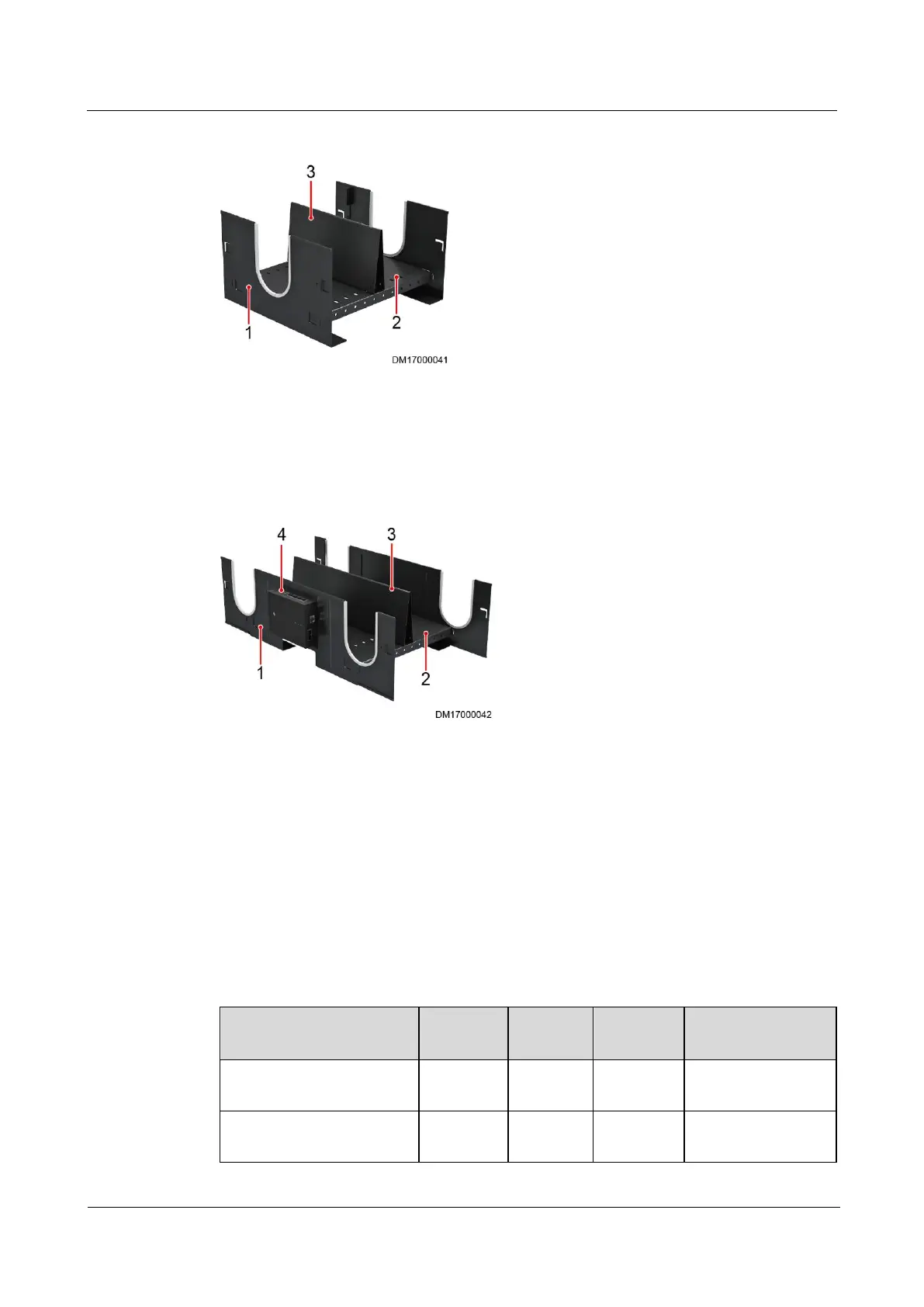

Figure 3-12 300 mm wide cable trough
(1) Bracket
(2) Pallet
(3) Baffle
Figure 3-13 600/800mm wide cable trough
(1) Bracket
(2) Pallet
(3) Baffle
(4) Position for installing a smart ETH gateway
3.1.8 (Optional) Adaptive Frame
To meet requirements for cabinet height and depth in different scenarios, tail frames, top
frames, and air conditioner adaptive frames can be installed to ensure that all cabinets in the
smart module have the same height and depth and that the two rows of cabinets have the same
length. Table 3-4 describes the frame specifications.
Table 3-4 Adaptive frame specifications
Component
Width
(mm)
Depth
(mm)
Height
(mm)
Remarks
PDC tail frame
600
100
2000/2200
Adapt to 1200 mm
deep cabinets.
300 mm wide air
conditioner top frame
300
1200
200
Adapt to 2200 mm
high cabinets.
