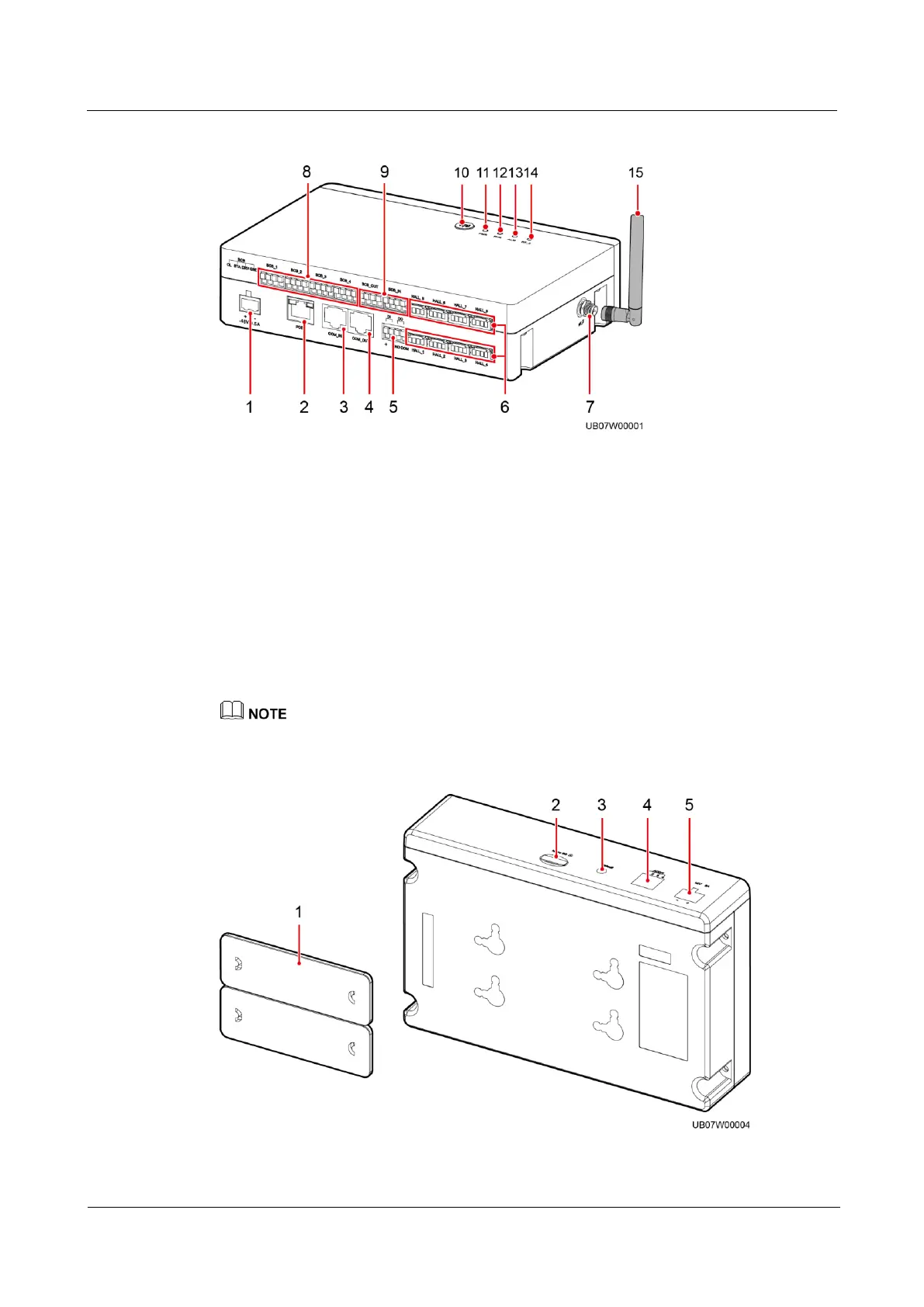

Figure 3-31 CIM front view
(1) –48 V 0.5 A port (power
input)
(2) PoE port
(3) COM_IN port (RS485
communication input)
(4) COM_OUT port (RS485
communication output)
(5) DI and DO ports
(6) HALL_1–HALL_8 current
monitoring ports
(7) RF_Z antenna port
(8) BCB_1–BCB_4
ports
(9) BCB_OUT and BCB_IN
ports
(10) Networking switch
(11) PWR indicator
(12) RUN indicator
(13) ALM indicator
(14) RF_Z indicator
(15) Delivered antenna
Ports are protected by a security mechanism.
Figure 3-32 CIM bottom view
(1) Fastener
(2) Micro SD card slot
