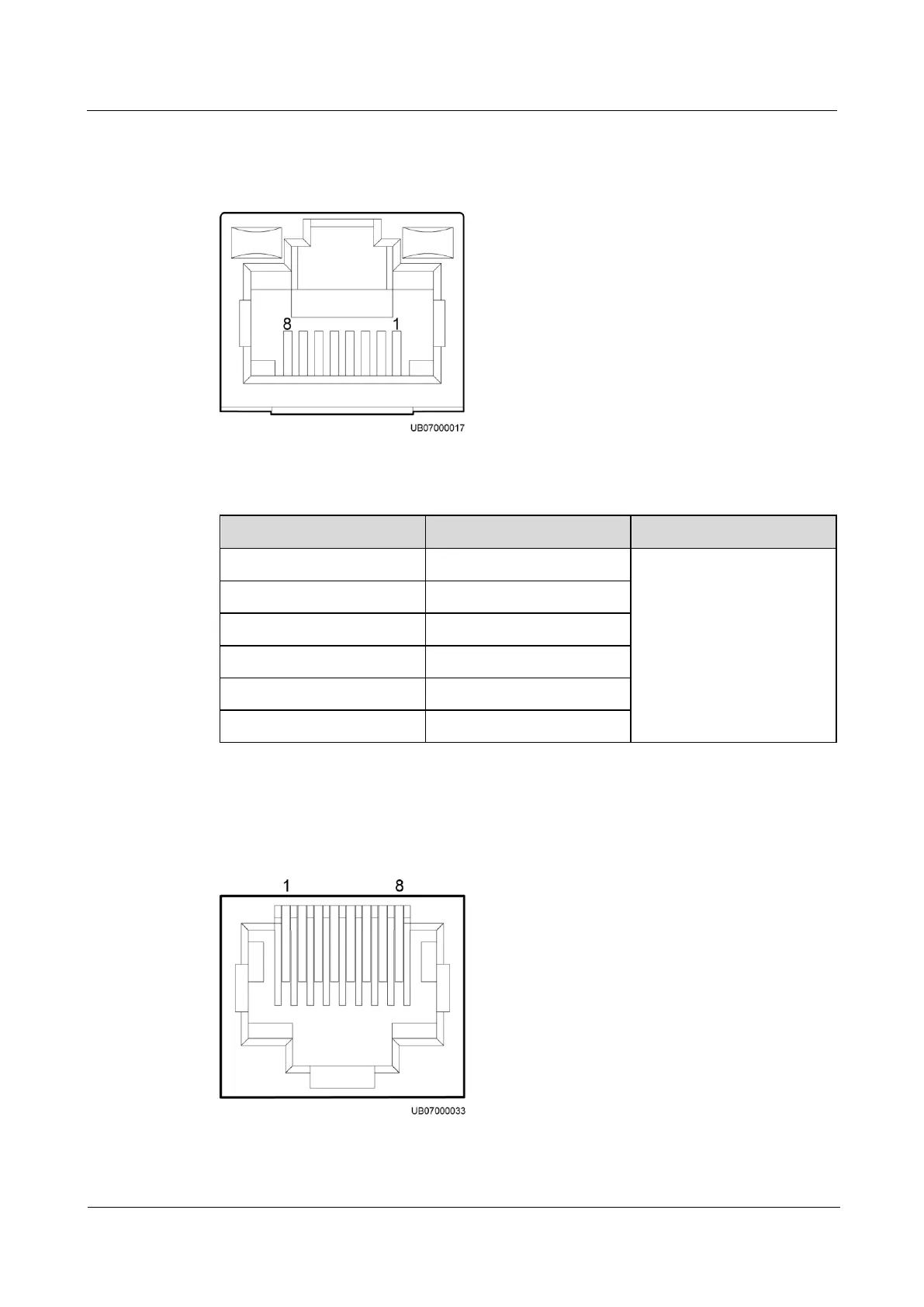

PoE Port
Figure 3-34 PoE port pins
Table 3-18 PoE port pin definitions
Pin
Definition
Description
1
TX+
Supports power supply
through the PoE port. The
terminal is an RJ45 terminal
with an indicator.
2
TX–
3
RX+
4, 5
P45_P1
6
RX–
7, 8
P78_P1
COM Port
Figure 3-35 COM port pins
