– Memory scrubbing mode
n Comply with the general installation guidelines.
2.4.5 Memory Installation Positions
A 2288H V5 supports a maximum of 24 DDR4 memory modules. Balanced memory
configuration is recommended for optimal memory performance.
NO TICE
At least one DDR4 memory module must be installed in the memory slots corresponding to
CPU 1.

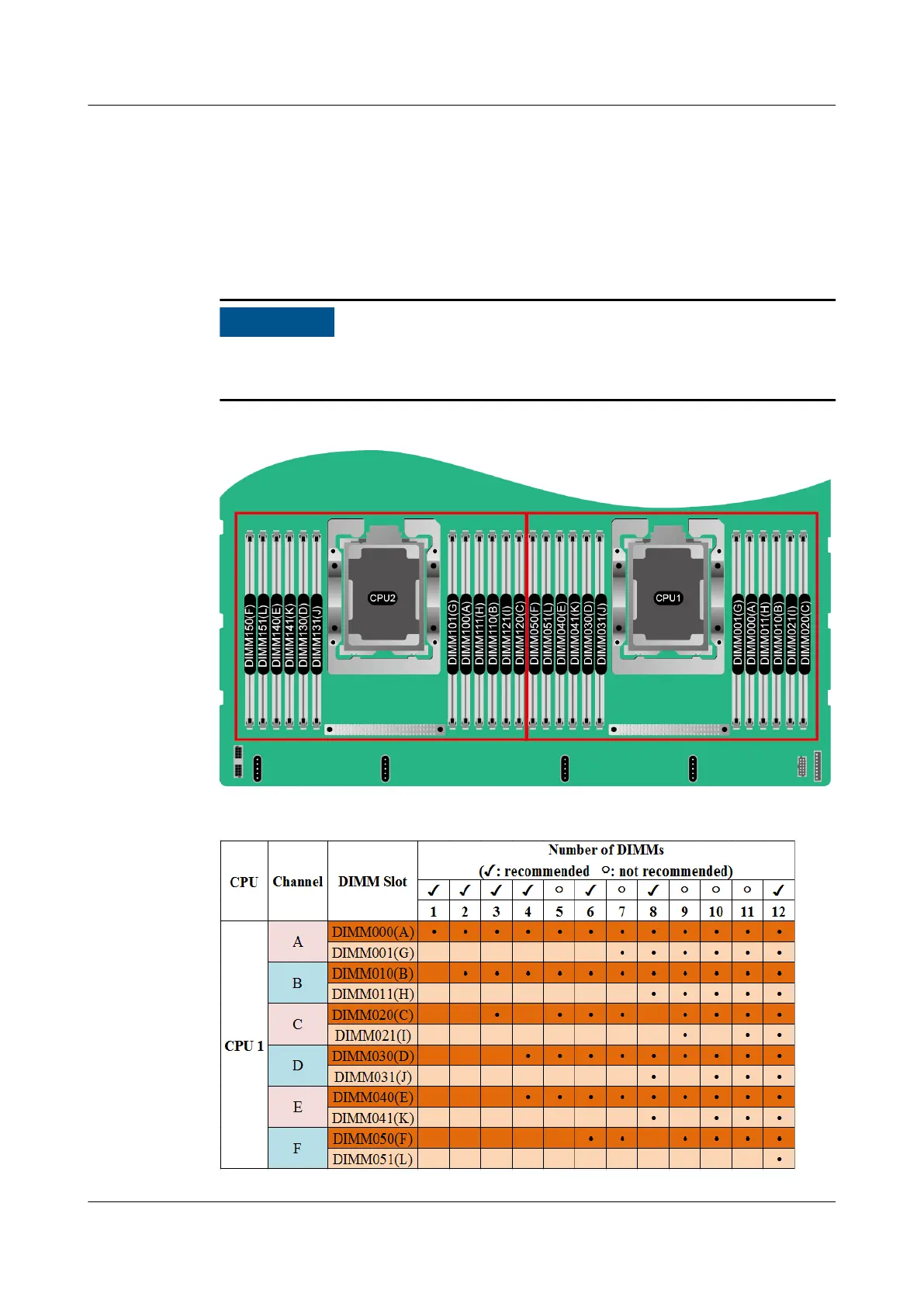

Figure 2-21 Memory slots
Figure 2-22 DDR4 memory installation guidelines (1 processor)
