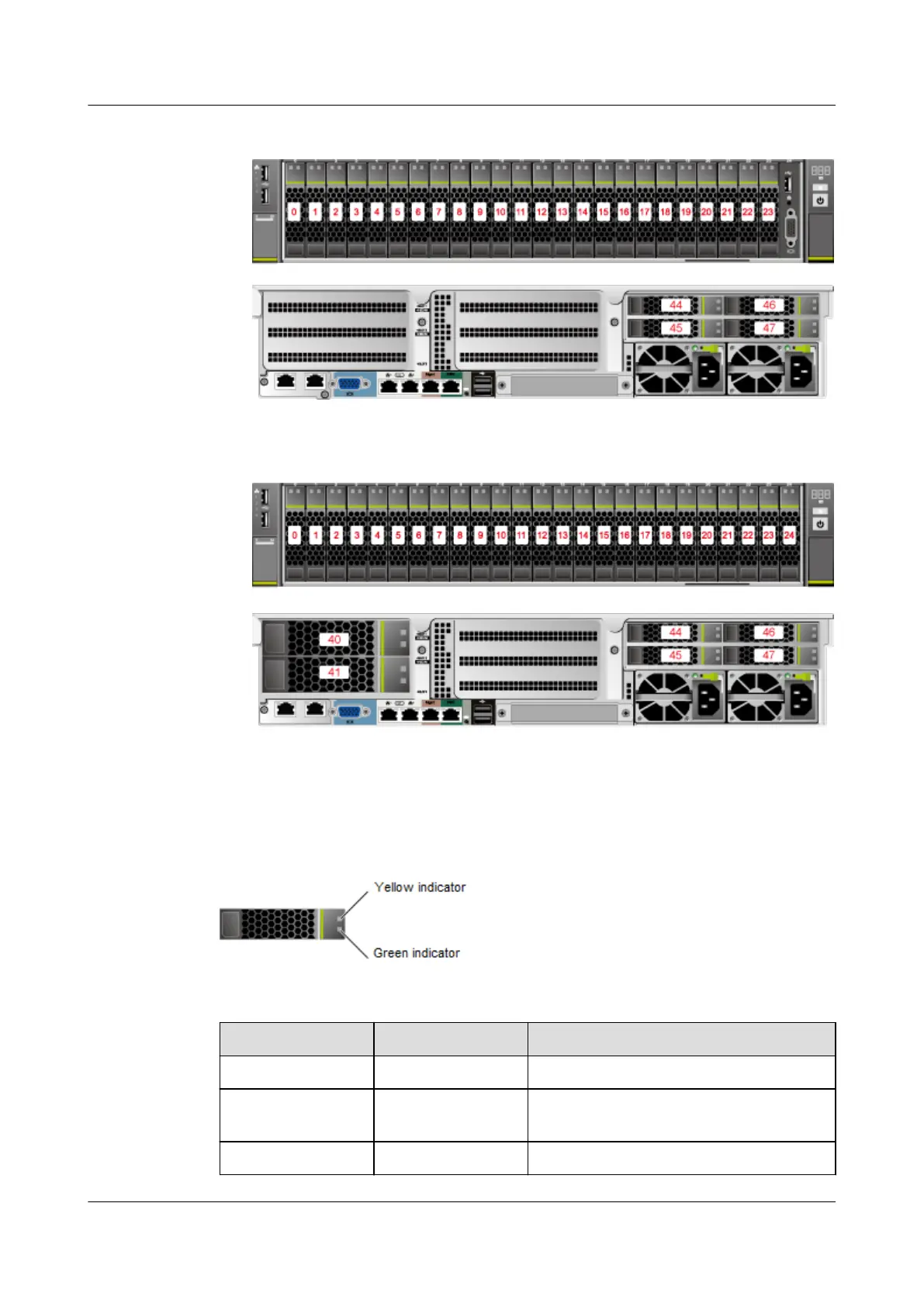

Figure 2-31 Drive numbering
l 25 x 2.5" drive configuration
Figure 2-32 Drive numbering
2.5.3 Drive Indicators
SAS/SATA Drive Indicators
Figure 2-33 SAS/SATA drive indicators
Table 2-9 Description of SAS/SATA drive indicators
Green Indicator
Yellow Indicator Description
Steady on Off The drive is in position.
Blinking at 4 Hz Off Data is being read or written normally, or
data on the primary drive is being rebuilt.
Steady on Blinking at 1 Hz The drive is being located.
