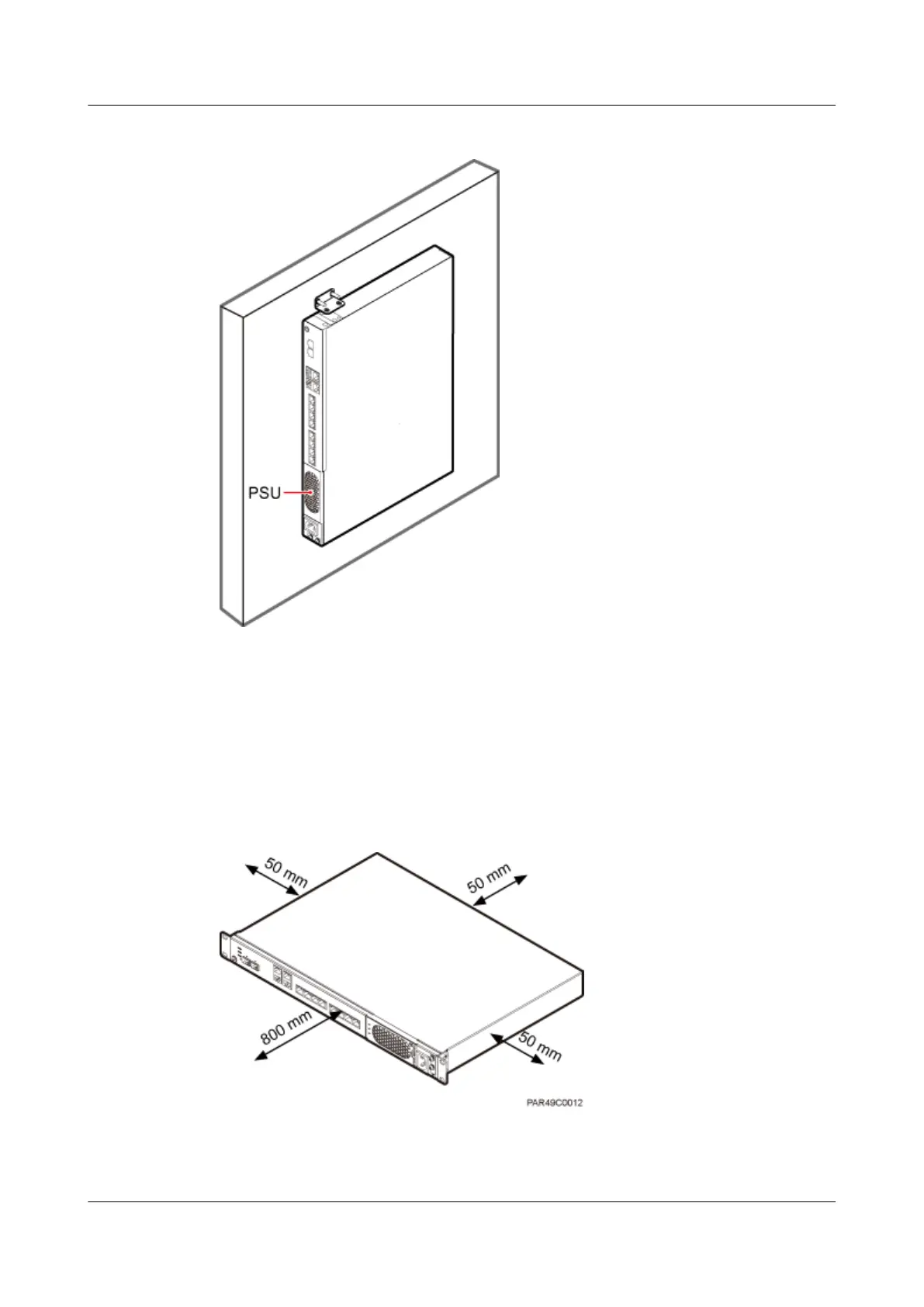

Figure 4-7 RHUB installed on a wall
4.1.2 Installation Clearance Requirements of an RHUB
When an RHUB is installed in a 19-inch cabinet, rack, shelf, or on a wall, a minimum clearance
is required for easy cabling and operation and maintenance. A recommended installation
clearance is provided based on experience.
Figure 4-8 shows the installation clearance for the RHUB installed in a 19-inch cabinet, rack,
or shelf.
Figure 4-8 Installation clearance for an RHUB installed in a 19-inch cabinet, rack, or shelf
Figure 4-9 and Figure 4-10 shows the recommended and minimum installation clearance
respectively when the RHUB is installed on a wall.
