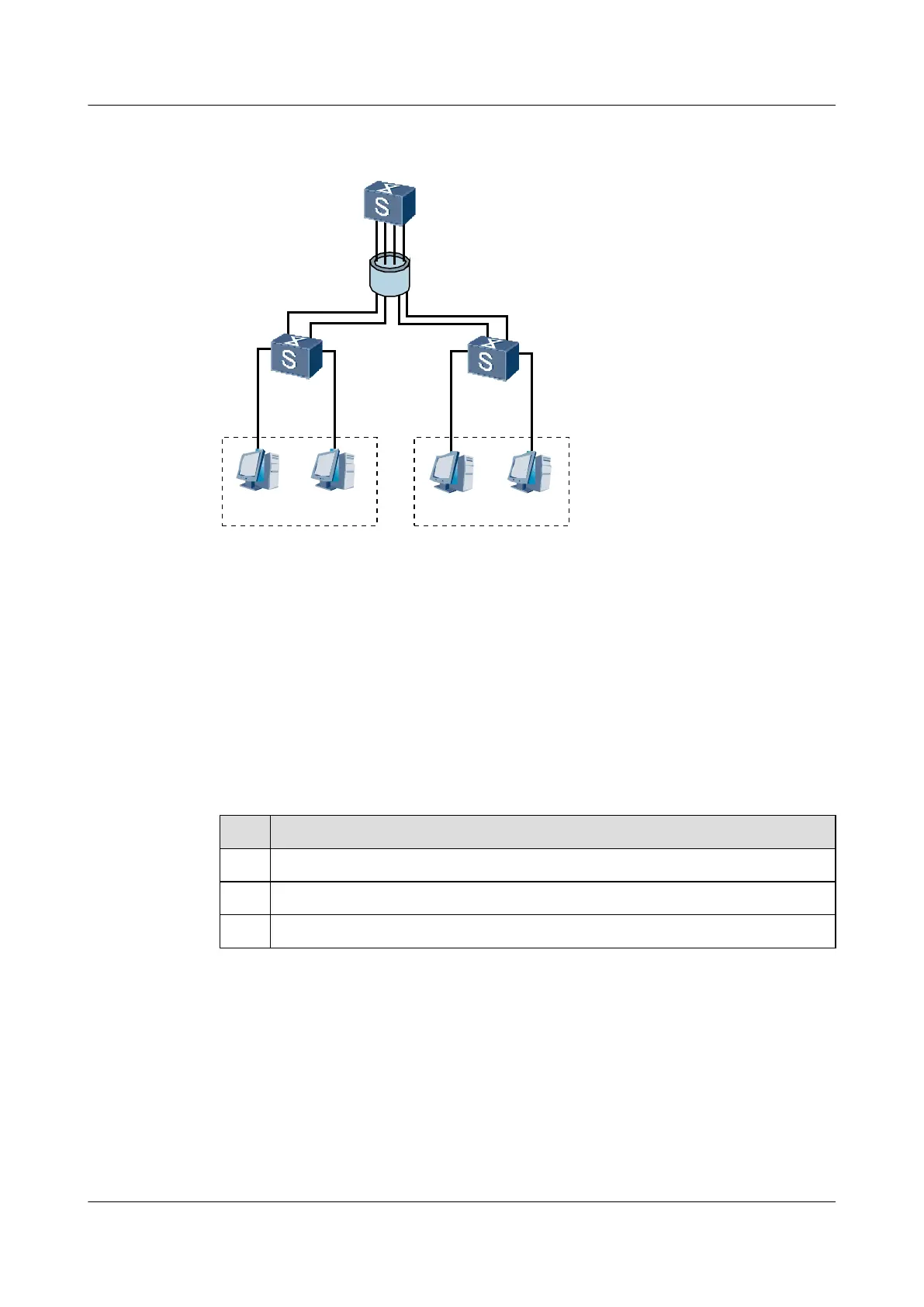

Figure 3-6 Typical networking diagram for VLAN aggregation
Super
VLAN4
PE
Sub-VLAN 2
CE1
Sub-VLAN 3
CE2
Pre-configuration Tasks
Before configuring VLAN aggregation, complete the following task:
l Connecting ports and configuring physical parameters of the ports, ensuring that the ports
are physically Up
Data Preparation
To configure VLAN aggregation, you need the following data.
No.
Data
1 ID of each sub-VLAN and number of each port belonging to the sub-VLAN
2 ID of a super-VLAN
3 IP address and mask of a VLANIF interface
3.6.2 Creating a Sub-VLAN
Each sub-VLAN functions as a broadcast domain.
Procedure
Step 1 Run:
system-view
Quidway S7700 Smart Routing Switch
Configuration Guide - Ethernet 3 VLAN Configuration
Issue 01 (2011-07-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
97
