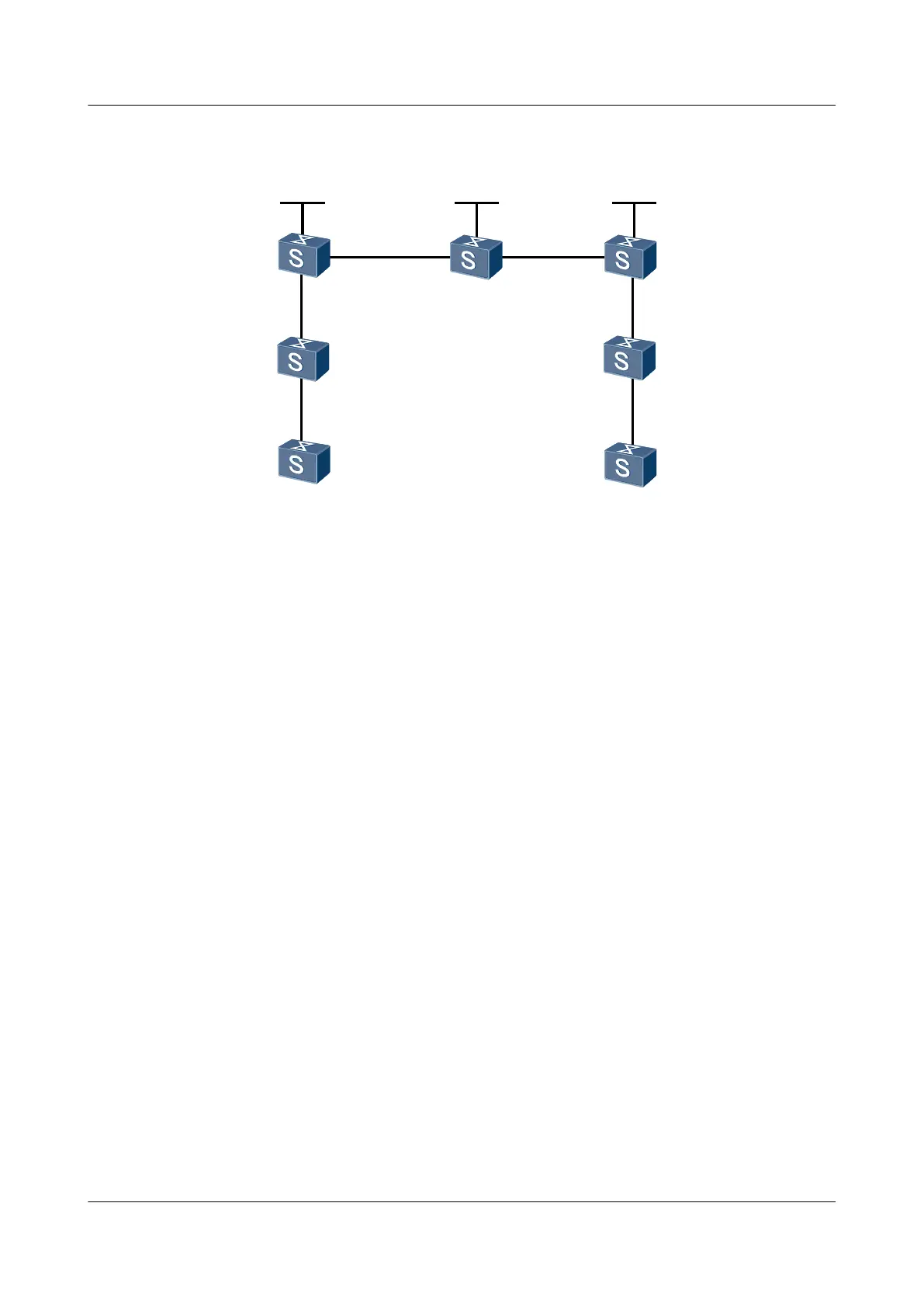

Figure 5-14 Networking diagram for configuring Martini VPLS
CE1
CE2
PE1
PE2
P
Loopback1
1.1.1.9/32
Loopback1
2.2.2.9/32
Loopback1
3.3.3.9/32
GE2/0/0
GE1/0/0
GE2/0/0
GE1/0/0
GE1/0/0
GE2/0/0
GE1/0/0
GE1/0/0
GE2/0/0
GE1/0/0
GE2/0/0
GE1/0/0
Switch2
Switch1
Switch Interface VLANIF interface IP address
PE1 GigabitEthernet1/0/0 GigabitEthernet1/0/0.1 -
GigabitEthernet2/0/0 VLANIF 20 168.1.1.1/24
Loopback1 - 1.1.1.9/32
PE2 GigabitEthernet1/0/0 VLANIF 30 169.1.1.2/24
GigabitEthernet2/0/0 GigabitEthernet2/0/0.1 -
Loopback1 - 3.3.3.9/32
P GigabitEthernet1/0/0 VLANIF 20 168.1.1.2/24
GigabitEthernet2/0/0 VLANIF 30 169.1.1.1/24
Loopback1 - 2.2.2.9/32
CE1 GigabitEthernet1/0/0 VLANIF 10 10.1.1.1/24
CE2 GigabitEthernet1/0/0 VLANIF 10 10.1.1.2/24
Configuration Roadmap
The configuration roadmap is as follows:
1. Configure the routing protocol on the backbone network to implement interworking.
2. Set up a remote LDP session between the PEs.
3. Set up a tunnel between the PEs to transmit user data.
4. Enable MPLS L2VPN on the PEs.
5. Create VSIs on PEs, specify LDP as the signaling protocol, and bind the VSI to related AC
interfaces.
Quidway S7700 Smart Routing Switch
Configuration Guide - Ethernet 5 QinQ Configuration
Issue 01 (2011-07-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
287
