Huawei S1720 User Manual

S1700 Managed Series Ethernet Switches
Web User Manual
6 ACL Configuration
Issue 05 (2012-10-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
96
Step 4 Click Edit button behind VLAN application name, and apply ACL rule to VLAN application
name.

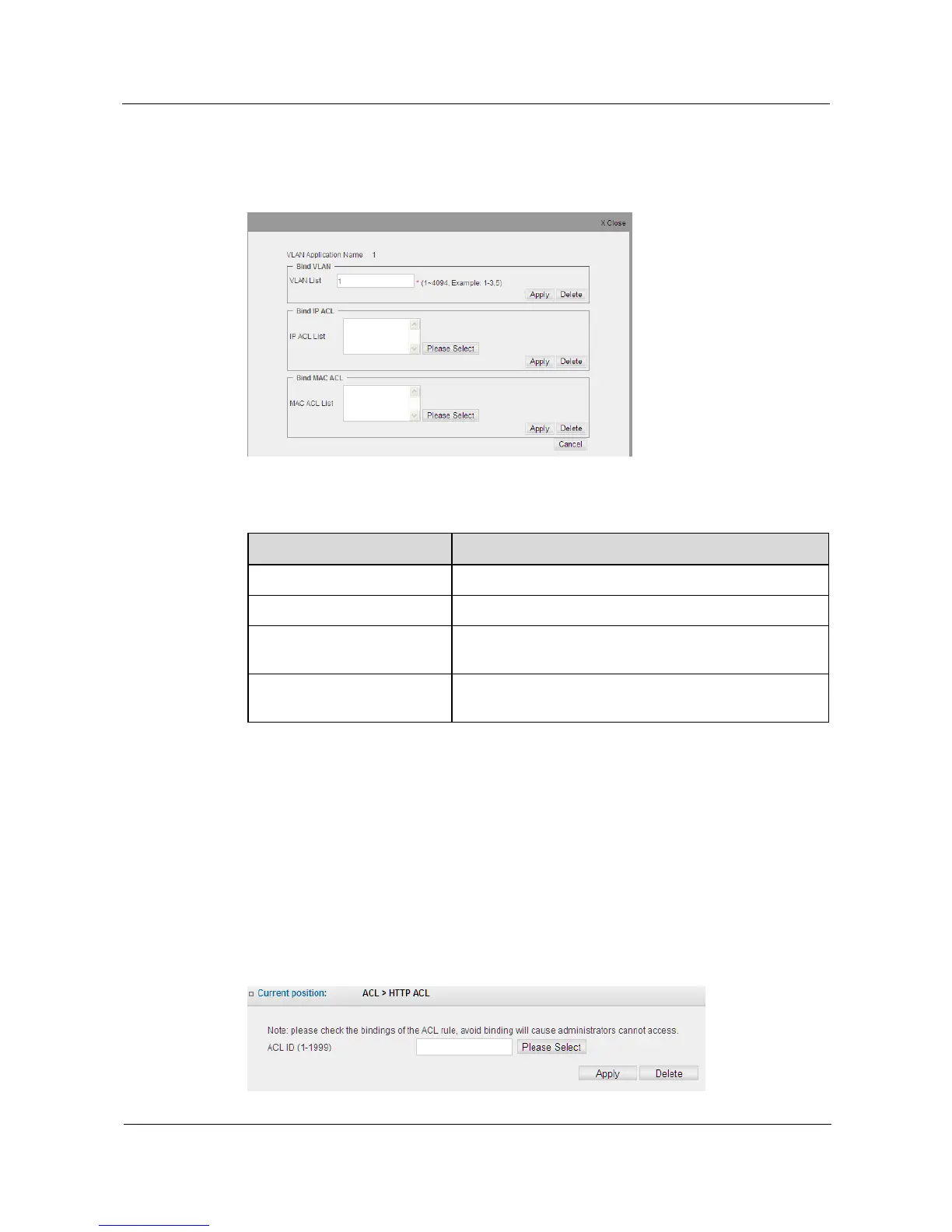

Figure 6-15 Apply ACL Rule to VLAN Application
Table 6-14 Parameters of New VLAN Application
Item
Description
VLAN Application Nam
Display name applied by VLAN
Bind VLAN
Add or delete the VLAN ID of the applied rules.
Bind IP ACL
Select to add or delete IP ACL list that has been applied to
VLAN, maximum support 8 IP ACL.
Bind MAC ACL
Select to add or delete MAC ACL list that has been applied
to VLAN, maximum support 8 IP ACL.
Step 5 Click corresponding Apply or Delete button to complete operation.
----End
6.4 HTTP ACL
Click ACL>HTTP ACL to apply rules to HTTP protocol data accessing switch; the
configuration page is shown as the figure below.
Figure 6-16 HTTP ACL Configuration

Huawei S1720 Specifications

General

Operating Temperature	0°C to 45°C
MAC Address Table	8K
Ports	4 100/1000BASE-X SFP ports
VLAN	4094
Stacking	Not supported
Dimensions	442 mm x 220 mm x 43.6 mm (S1720-28GFR-4P)
Power Supply	AC: 100 V to 240 V, 50/60 Hz
Series	S1700
Type	Fixed
Fixed ports	4 x GE Combo
Storage Temperature	-40°C to +70°C
Operating Humidity	5% to 95% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
