8 IP Routing
Issue 05 (2012-10-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
115
8 IP Routing
About This Chapter
Use this chapter to create static routing table on switch; switch refers firstly to routing table
when it forwarding data.
8.1 IPv4 Route
8.2 IPv6 Route
8.1 IPv4 Route
8.1.1 IPv4 Route Table
Click IP Routing>IPv4 Route >IPv4 Route table; the configuration page is shown as the
figure below.

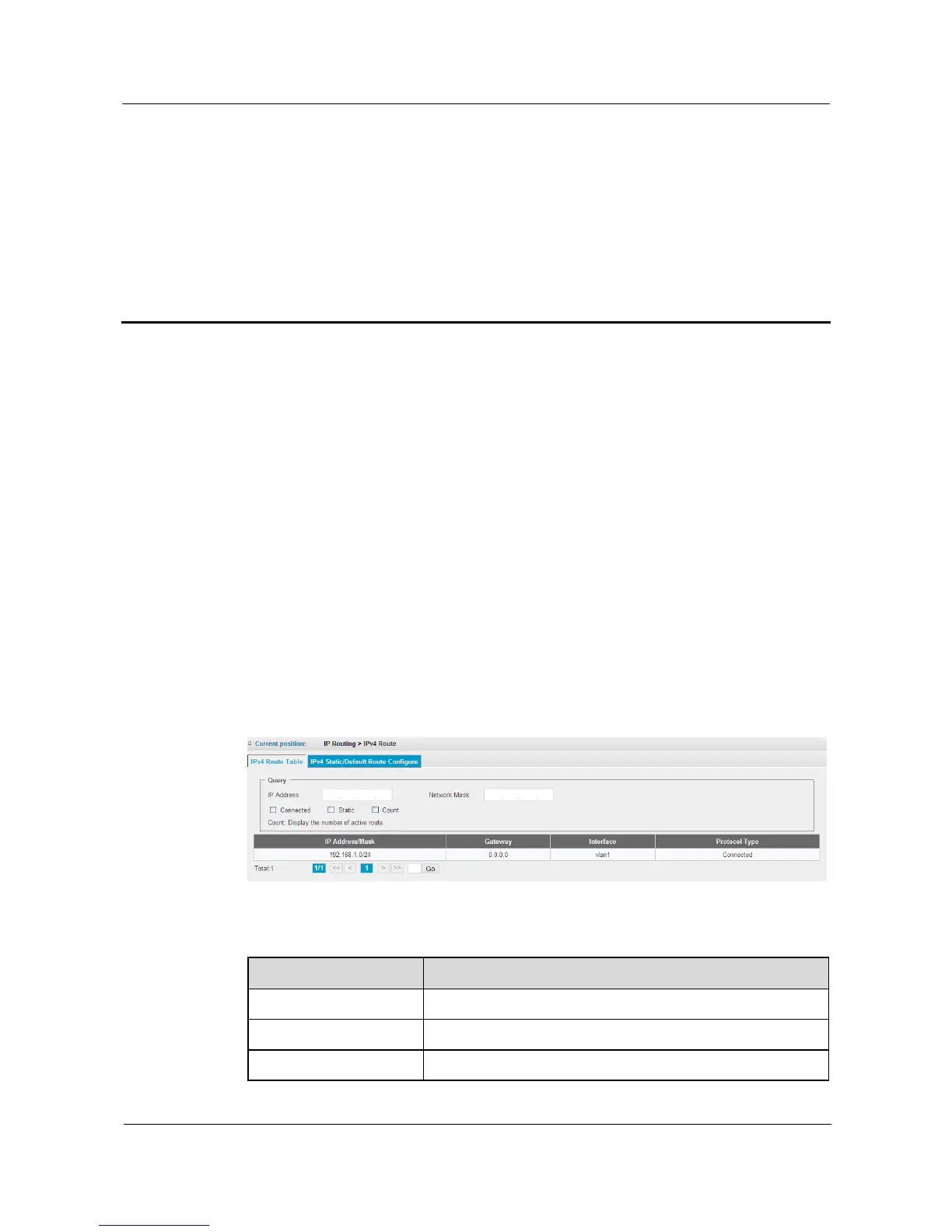

Figure 8-1 IPv4 Route Table
Table 8-1 Parameters of IPv4 Route Table
Item
Description
Query
Search IPv4 Route Table according to IP address.
IP Address/Mask
The IP address/mask of destination network segment of routing
Gateway
Gateway IP address (The address of next hop)

Huawei S1720 Specifications

General

Operating Temperature	0°C to 45°C
MAC Address Table	8K
Ports	4 100/1000BASE-X SFP ports
VLAN	4094
Stacking	Not supported
Dimensions	442 mm x 220 mm x 43.6 mm (S1720-28GFR-4P)
Power Supply	AC: 100 V to 240 V, 50/60 Hz
Series	S1700
Type	Fixed
Fixed ports	4 x GE Combo
Storage Temperature	-40°C to +70°C
Operating Humidity	5% to 95% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
