7.8.3 Traffic Policy
Click QoS>Traffic Management >Traffic Policy to view traffic policy configured on switch;
the configuration page is shown as the figure below.

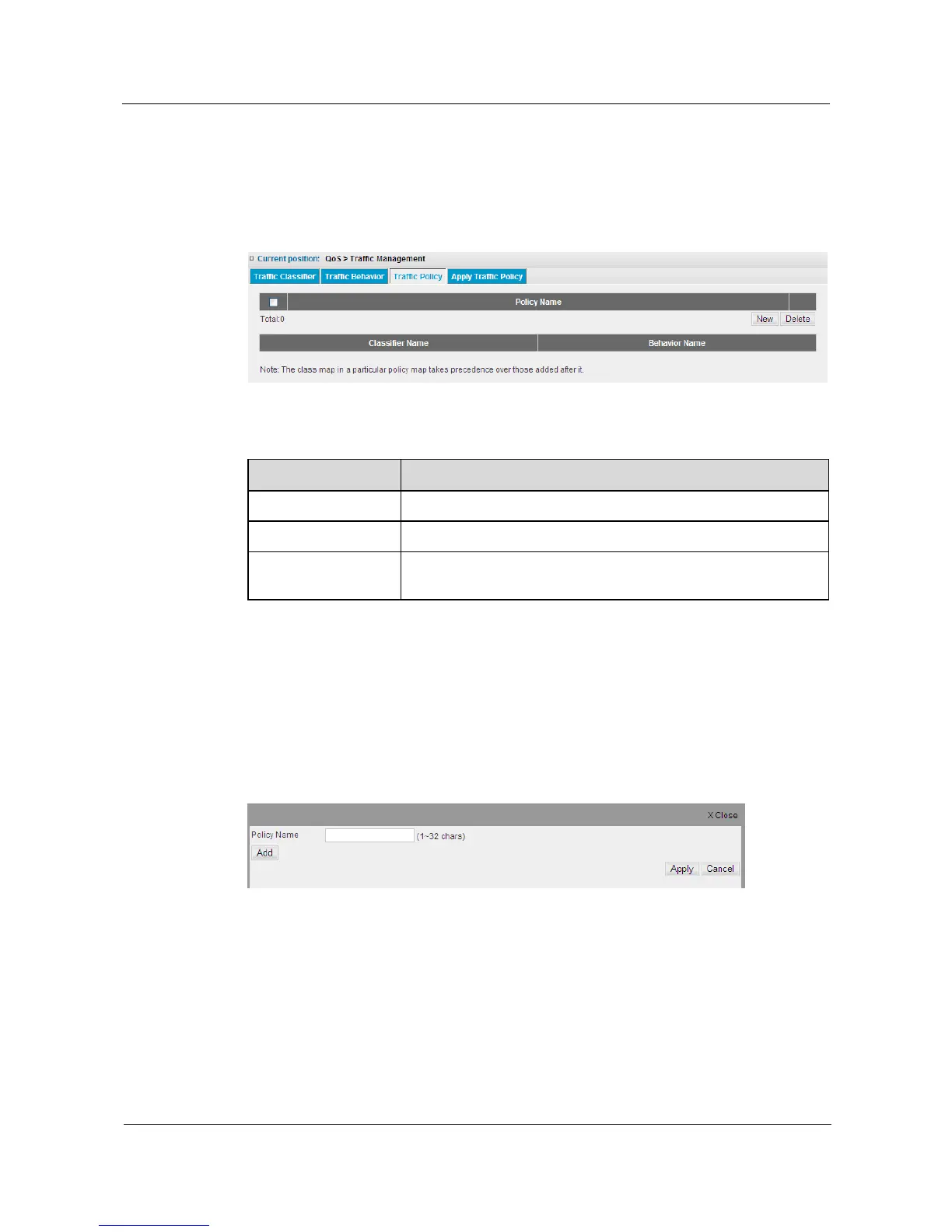

Figure 7-18 Traffic Policy
Table 7-14 Parameters of Traffic Policy
Item
Description
Policy Name
Name of policy profile
Classifier Name
Classifier profile name bound to this policy profile.
Behavior Name
Bind to behavior profile of classifier profile designated by classifier
name of this policy profile.
Add a Traffic Strategy
Step 1 Click QoS>Traffic Management >Traffic Policy.
Step 2 Click New button to add a stream policy, opening the configuration shown as the figure
below.
Figure 7-19 New Traffic Policy
Step 3 Enter a name in Traffic Policy Name bar
Step 4 Click Apply button to bind a pair of traffic classifier and traffic behavior for traffic policy.
Step 5 In pull down menu of Traffic Classifier and Traffic Behavior, select respectively the traffic
classifier profile and traffic behavior profile to be bound.
Step 6 Click Apply button to apply all the changes made.
----End

Huawei S1720 Specifications

General

Operating Temperature	0°C to 45°C
MAC Address Table	8K
Ports	4 100/1000BASE-X SFP ports
VLAN	4094
Stacking	Not supported
Dimensions	442 mm x 220 mm x 43.6 mm (S1720-28GFR-4P)
Power Supply	AC: 100 V to 240 V, 50/60 Hz
Series	S1700
Type	Fixed
Fixed ports	4 x GE Combo
Storage Temperature	-40°C to +70°C
Operating Humidity	5% to 95% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
