Huawei S1720 User Manual

S1700 Managed Series Ethernet Switches
Web User Manual
9 Security
Issue 05 (2012-10-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
131
Table 9-9 Parameters of Session
Item
Description
Query
Search session statistics information of interface specified in
Interface Name.
Interface Name
Interface Number
Octets RX
The number of octets that have been received on the interface.
Octets TX
The number of octets that have been transmitted on the interface.
Frames RX
The number of frames that have been received on the interface.
Frames TX
The number of frames that have been transmitted on the interface.
ID
ID of the session
Authentic Method
The used authentication method
Time
The time that the session starts from passing 802.1X authentication
to now (in second)
TerminateCause
The cause that the authenticated session terminates
User Name
The name of user who starts the authentication
9.2.7 Diagnostics
Click Security>802.1X > Diagnostics, the configuration page is as follows.

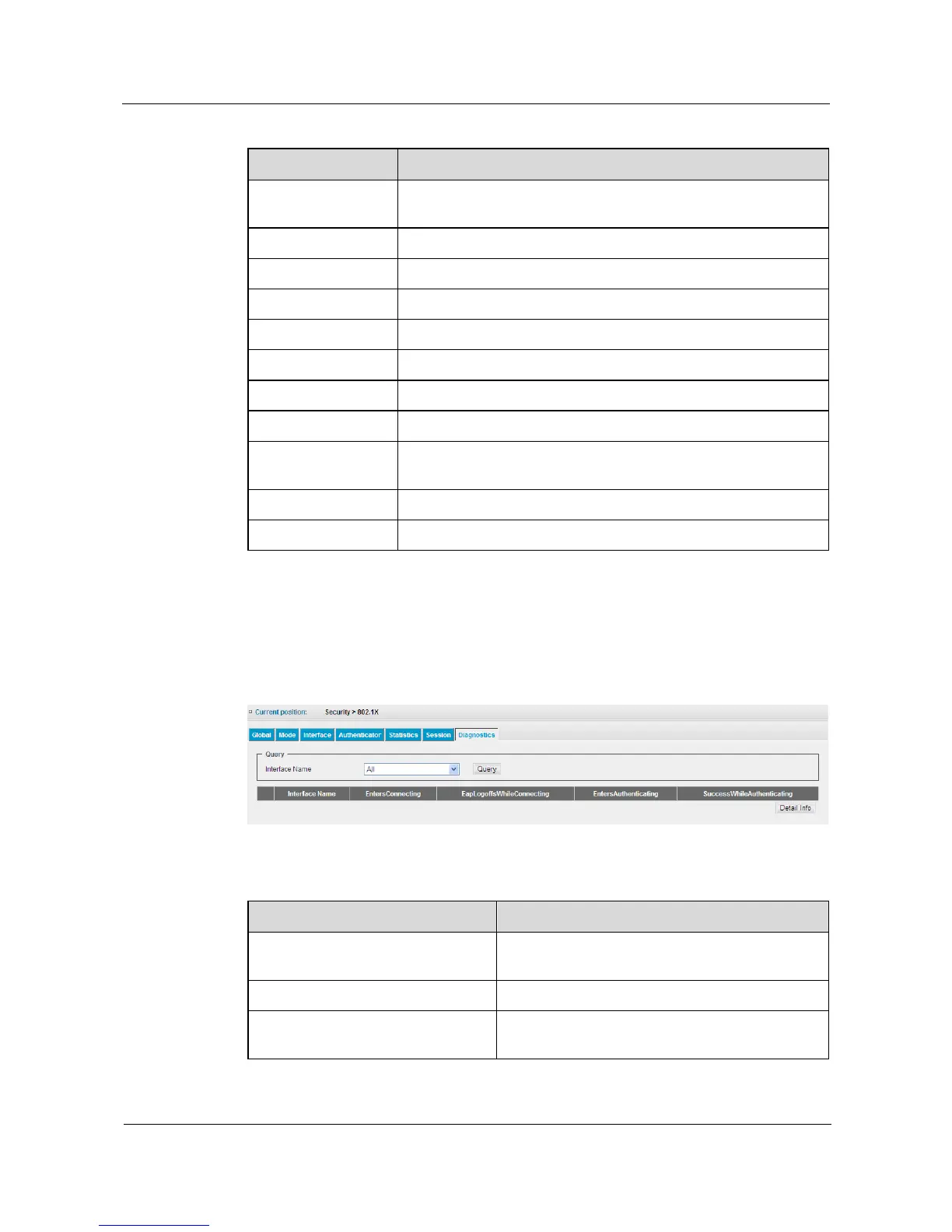

Figure 9-13 Diagnostics
Table 9-10 Parameters of Diagnostics
Item
Description
Query
Search session statistics information of interface
specified in Interface Name.
Interface Name
Interface Number
EntersConnecting
Times of 802.1X status machine entering
“CONNECTING” from other status

Huawei S1720 Specifications

General

Operating Temperature	0°C to 45°C
MAC Address Table	8K
Ports	4 100/1000BASE-X SFP ports
VLAN	4094
Stacking	Not supported
Dimensions	442 mm x 220 mm x 43.6 mm (S1720-28GFR-4P)
Power Supply	AC: 100 V to 240 V, 50/60 Hz
Series	S1700
Type	Fixed
Fixed ports	4 x GE Combo
Storage Temperature	-40°C to +70°C
Operating Humidity	5% to 95% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
