Table 7-16 Parameters of Configuring Traffic Policy
Item
Description
Target
Select policy to apply on interface, VLAN.
Policy Name
The applied policy name.
Select Interface
Select the interface number which applies traffic policy if the
Application Object refers to Interface.
Select object applying traffic policy in pull down menu of Target.
Step 3 Enter the applied traffic name in Traffic Policy Name.
Step 4 Configure corresponding application object.
Step 5 Click Apply button to apply all the changes made. The successfully configured traffic policy
application entry will be displayed in list box of traffic policy application.
----End
7.9 Traffic Shaping
Traffic shaping allows network administrators to allocate the minimum guaranteed bandwidth
and maximum limited bandwidth for each queue, to achieve the purpose of improving
network service quality based on rational allocation of resources.
Click QoS>Traffic Shaping to view the traffic shaping data configured on switch interface;
the configuration page is shown as the figure below.

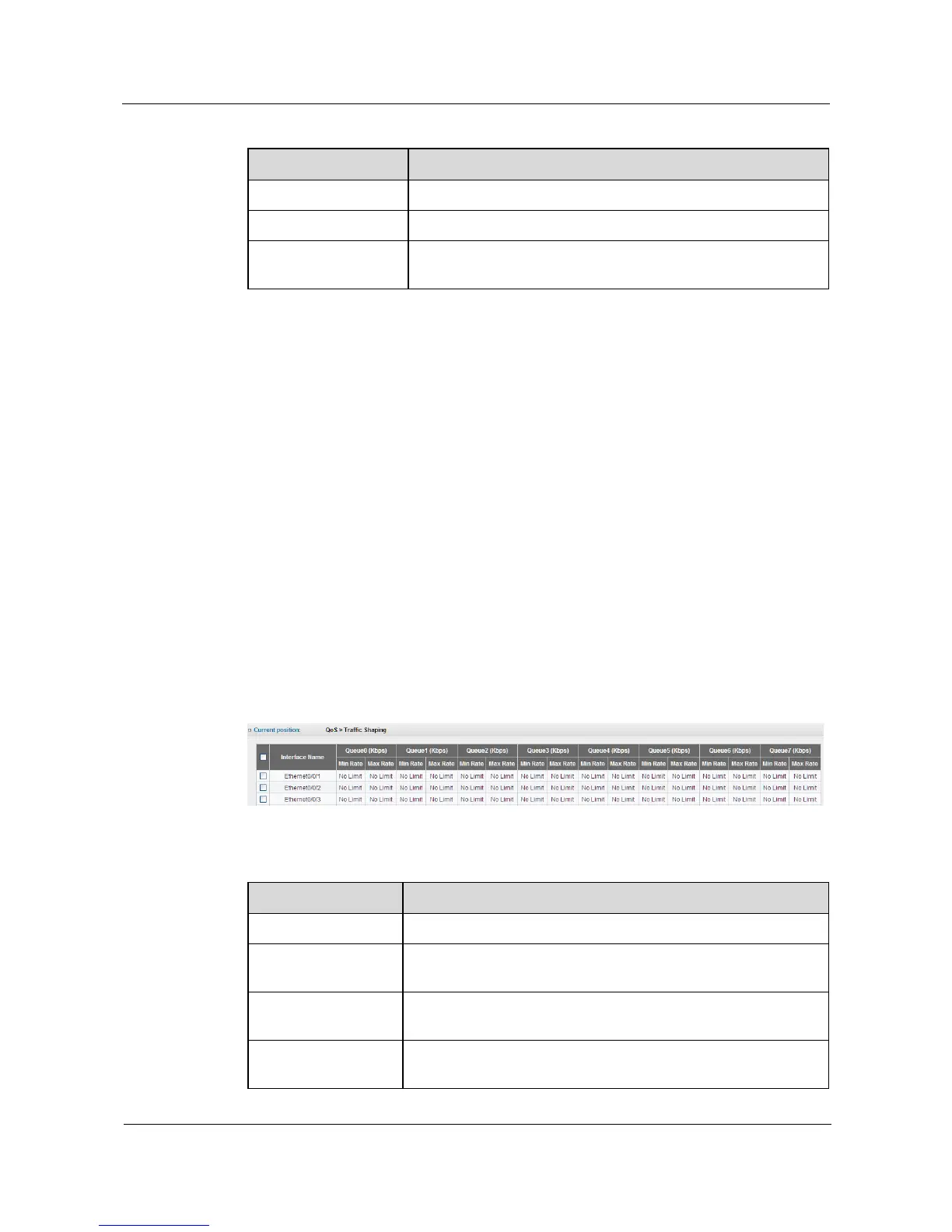

Figure 7-22 Traffic Shaping
Table 7-17 Parameters of Traffic Shaping
Item
Description
Interface Name
Interface name.
Queue
Hardware queue number on interface; each interface has 8
hardware queues.
Minimum Rate
The minimum speed of hardware queue. The range is 64~100000
Kbps for FE port and 64~1000000 Kbps for GE port.
Maximum Rate
The maximum speed of hardware queue. The range is 128~100000
Kbps for FE port and 128~1000000 Kbps for GE port.
