S1700 Managed Series Ethernet Switches
Web User Manual
5 Service Management
Issue 05 (2012-10-25)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
80

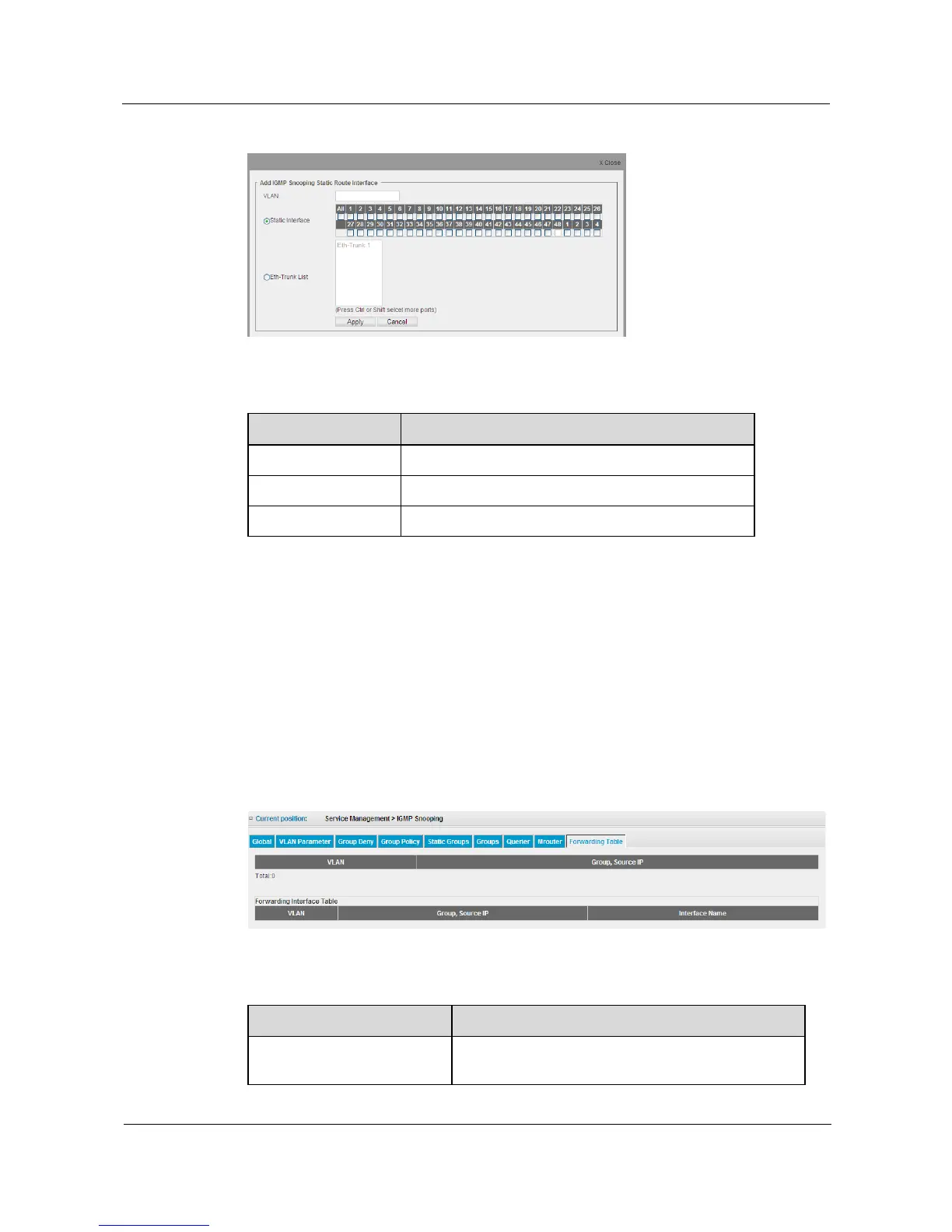

Figure 5-47 Create Mrouter
Table 5-34 Parameters of IGMP Snooping Mrouter
Item
Description
VLAN
Specify VLAN for transmitting multicast service.
Static Interface
Specify interface to connect multicast router.
Eth-Trunk List
Specify Trunk to connect multicast router.
Step 3 Configure the needed parameter.
Step 4 Click Apply button to apply all the changes made.
----End
5.6.9 Forwarding Table
Click Service Management> IGMP Snooping>Forwarding Table to check forwarding
information on switch; shown as the figure below.
Figure 5-48 IGMP Snooping Forwarding Table
Table 5-35 Parameters of IGMP Snooping Forwarding Table
Item
Description
VLAN
Specify the VLAN which used to transmite multicast
service.
