Huawei SmartAX MA5600T Hardware Description

Indicator Name Color Status Description
Green Blinking (on
for 1 s and off
for 1 s
repeatedly)
The device is
working properly.
Red On The device is faulty.
LINK Link status
indicator
Green On The uplink optical
port is receiving
optical signals.
- Off The uplink port
fails to receive
optical signals or an
optical fiber is not
connected to
device.
ACT Data status
indicator
Green Blinking The GE optical port
is transmitting or
receiving data.
- Off No data is
transmitted or
received on the GE
optical port.
2.4.5 Heat Dissipation
The MA5623AR supports a high density of user access. In addition, the MA5623AR adopts
an optimal design to implement wind cooling heat dissipation.
Two fans are located in the right side of the MA5623AR, used for ventilation of the chassis in
the exhaust mode.
The airflow is as follows: the cool air enters the MA5623AR at the left side, and is blown
towards the right side by the fans, and finally, exits at the right side of the MA5623AR

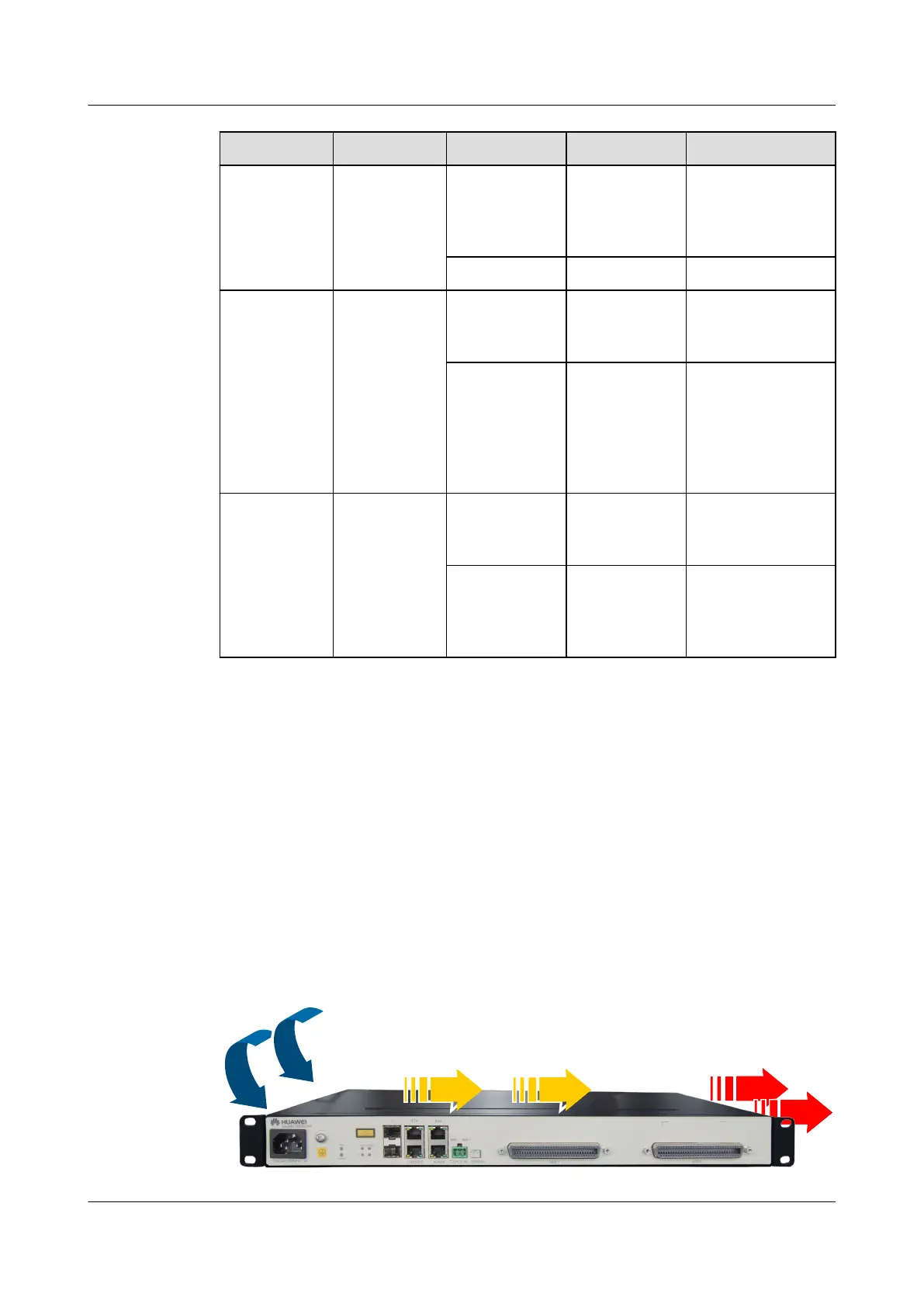

Figure 2-18 shows the airflow for the MA5623AR
Figure 2-18 Airflow for the MA5623AR
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
2 Subrack and Chassis
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
114
