Huawei SmartAX MA5600T Hardware Description

Parameter Description
Frequency attenuation ≤ 2.95 dB/100 m (1 MHz)
Capacitance ≤ 56 nF/km (1 kHz)

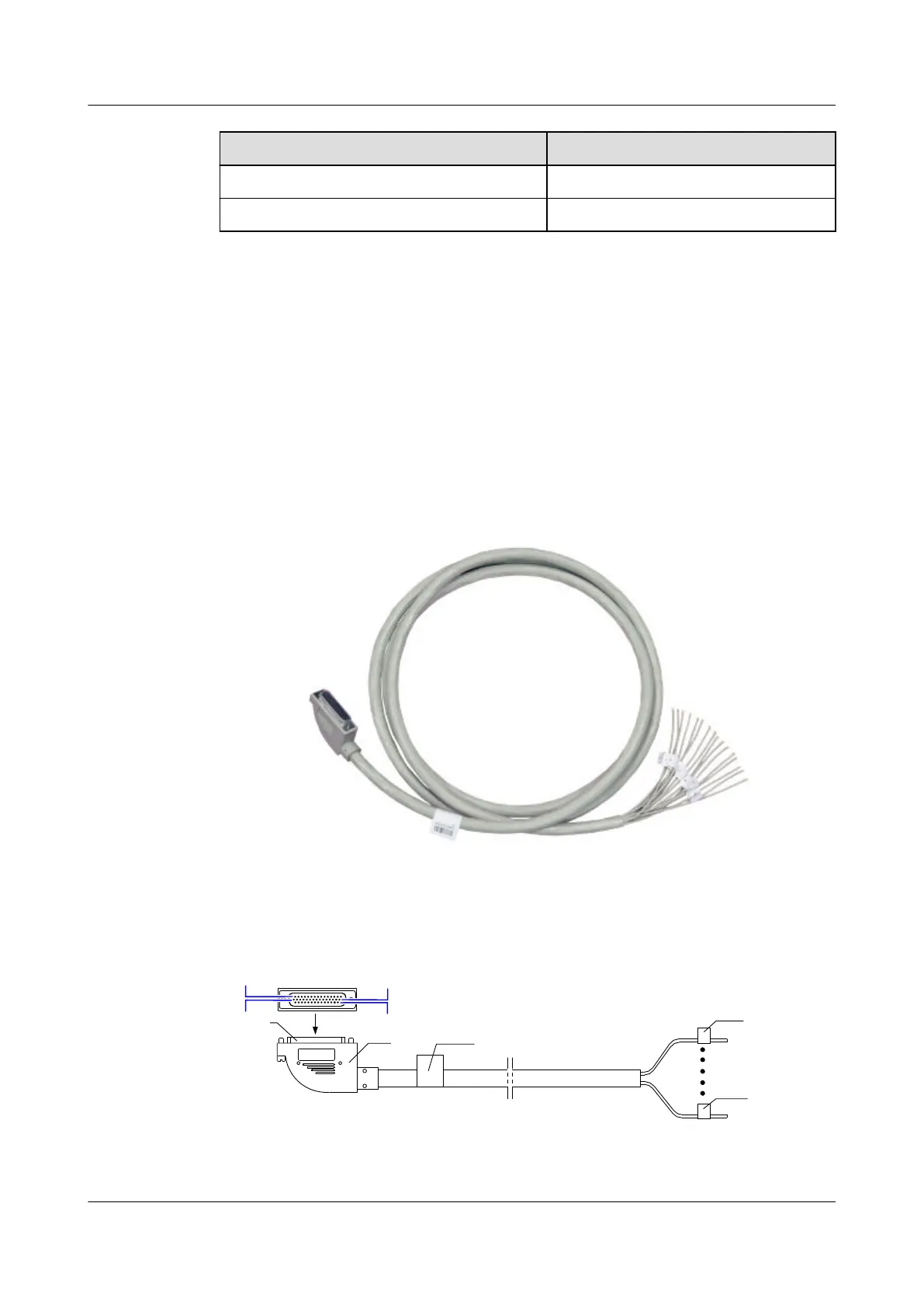

5.3 E1 Trunk Cable
This topic covers the applications, appearances, pin assignments, and technical specifications
of E1 trunk cables.
5.3.1 75-ohm E1 Trunk Cable
A 75-ohm E1 trunk cable is a communication cable used for transmitting E1 trunk signals.
Cable Connector
DB44 connector
Connected to an E1
port on a board
Connected to
the DDF
Cable Structure
Main Label
W
Label 1
A
Pos.1
Pos.44
1
DB44
X1
Pos.16
Pos.30
Label 16
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
891
