Huawei SmartAX MA5600T Hardware Description

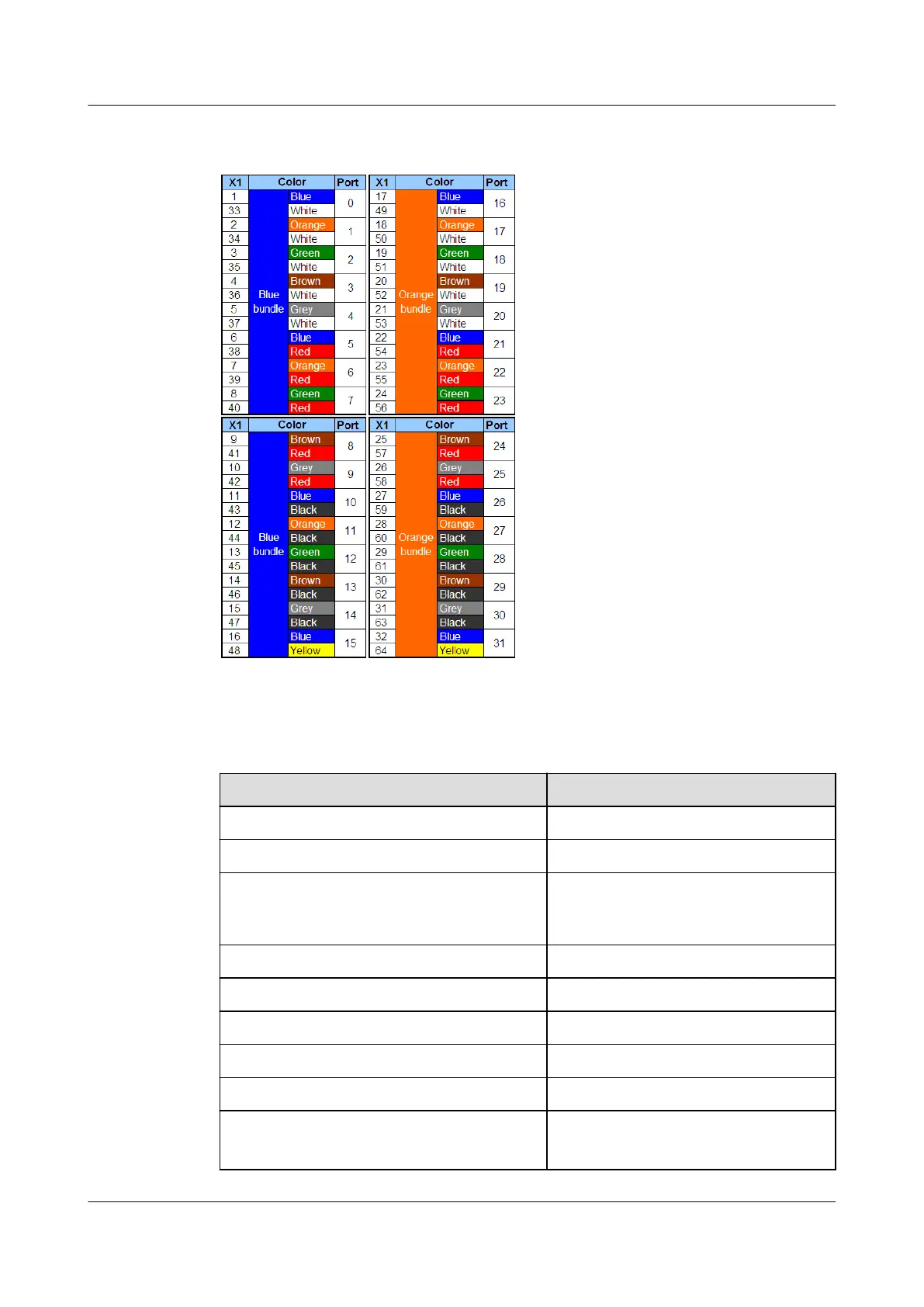

Pin Assignment
Parameter
Parameter
Description
Connector Champ 64-pin
Type Symmetrical twisted pair
Color PANTONE 430 U (PANTONE refers to
international standard color cards and
430 U is close to grey)
Characteristic impedance 100.0 ohms
Wire diameter of the inner conductor 0.400 mm (26 AWG)
Wire 64-wire
Breakdown voltage 1000.0 V
DC resistance of the inner conductor 145.0 ohms/km
Frequency range ADSL: Default
VDSL: 1 MHz - 30 MHz
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
