Specification Description
Color PANTONE 430 U (PANTONE refers to
international standard color cards and
430 U is close to grey)
Characteristic impedance 100.0 ohms
Wire diameter of the inner conductor 0.400 mm (26 AWG)
Wire 64-wire
Breakdown voltage 1000.0 V
DC resistance of the inner conductor 145.0 ohms/km
Frequency range Default
Frequency attenuation ≤ 2.95 dB/100 m (1 MHz)
Capacitance ≤ 56 nF/km (1 kHz)

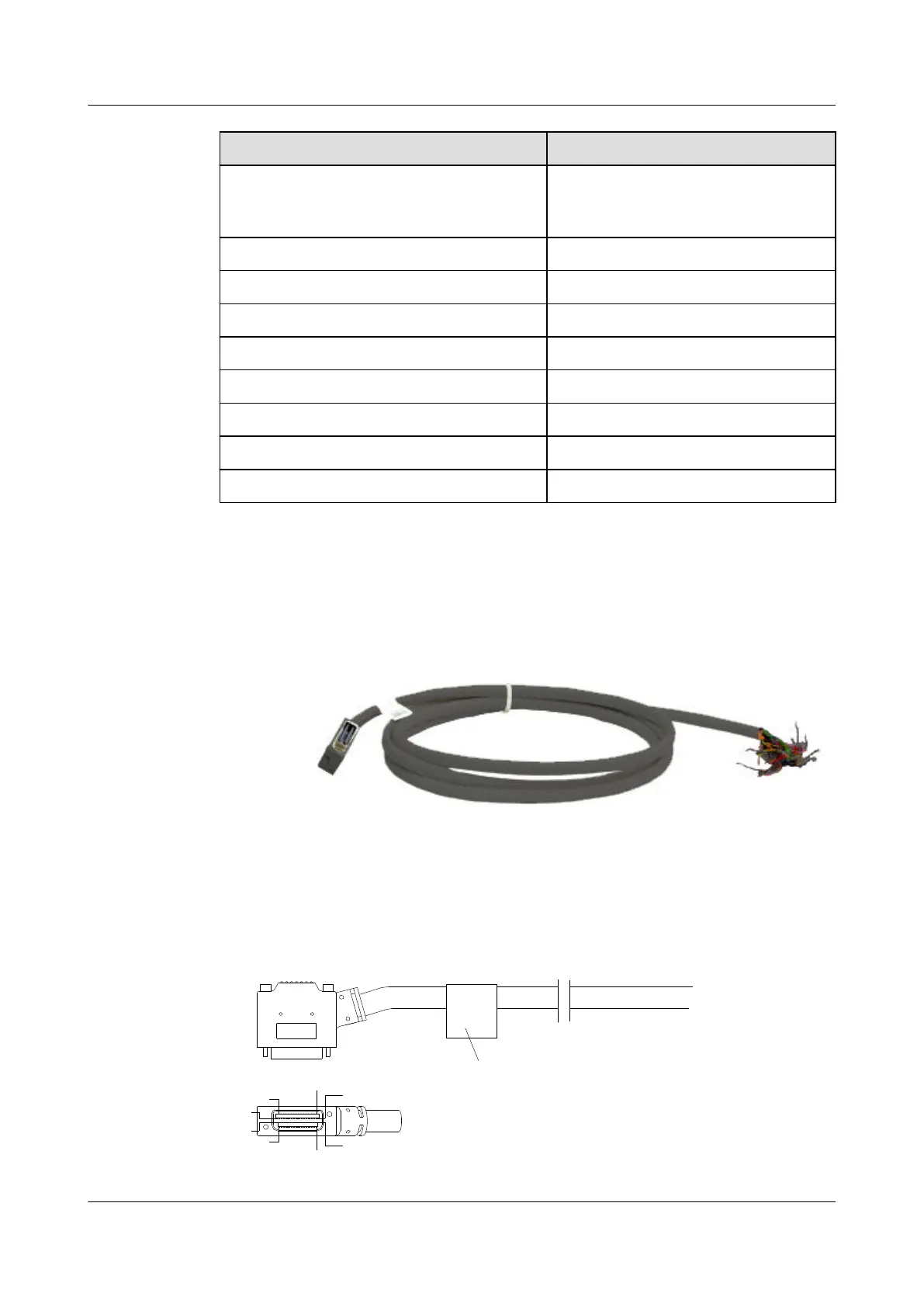

5.2.6 32-Channel Subscriber Cable (for 64/48 channel board)
Subscriber cable connects the SPL board or service board to the MDF to transmit audio,
video, and data signals.
Cable Connector
Delander 64-pin connector
Connected to the PSTN or LINE
port of the SPL board, the PSTN
or LINE port of the service board
Connected to
the MDF
Cable Structure
X1
Main lable
Pos.64
Pos.49
Pos.33
Pos.17
Pos.1
Pos.16
Pos.48
Pos.32
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
880
