Specification
Specification Description
Connector Delander 64-pin
Type Symmetrical twisted pair
Color PANTONE 430 U (PANTONE refers to
international standard color cards and
430 U is close to grey)
Characteristic impedance 100.0 ohms
Wire diameter of the inner conductor 0.400 mm (26 AWG)
Wire 64-wire
Breakdown voltage 1000.0 V
DC resistance of the inner conductor 145.0 ohms/km
Frequency range ADSL: Default
VDSL: 1 MHz - 30 MHz
Frequency attenuation ≤ 2.95 dB/100 m (1 MHz)
Capacitance ≤ 56 nF/km (1 kHz)

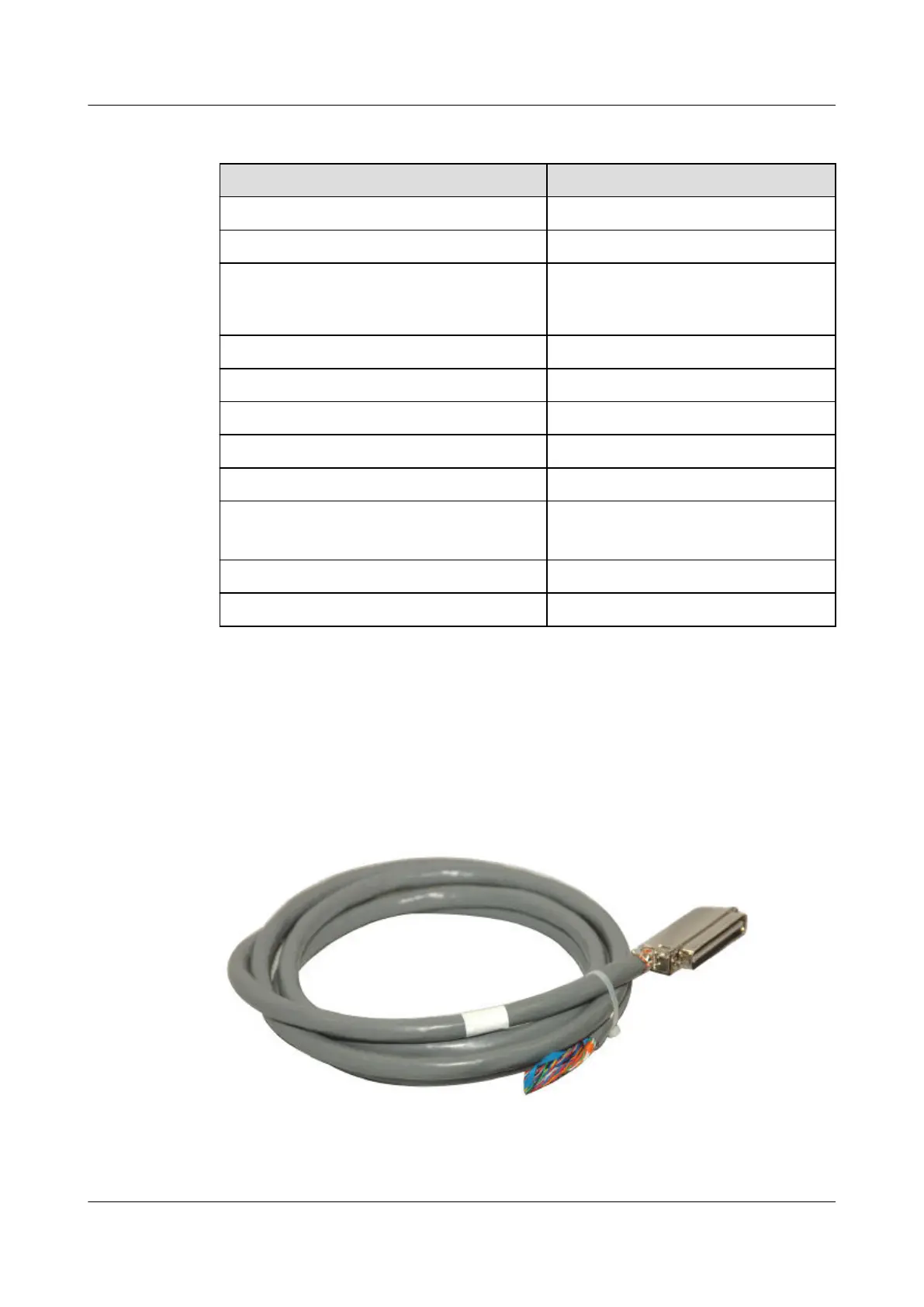

5.2.7 32-Channel Subscriber Cable (for 32/24/16 channel board)
Subscriber cable connects the service board or SPL board to the MDF to transmit audio,
video, and data signals.
Cable Connector
Champ 64-pin connector
Connected to the PSTN or
LINE port of the SPL board,
the PSTN or xDSL port of
the service board
Connected to the MDF
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
882
