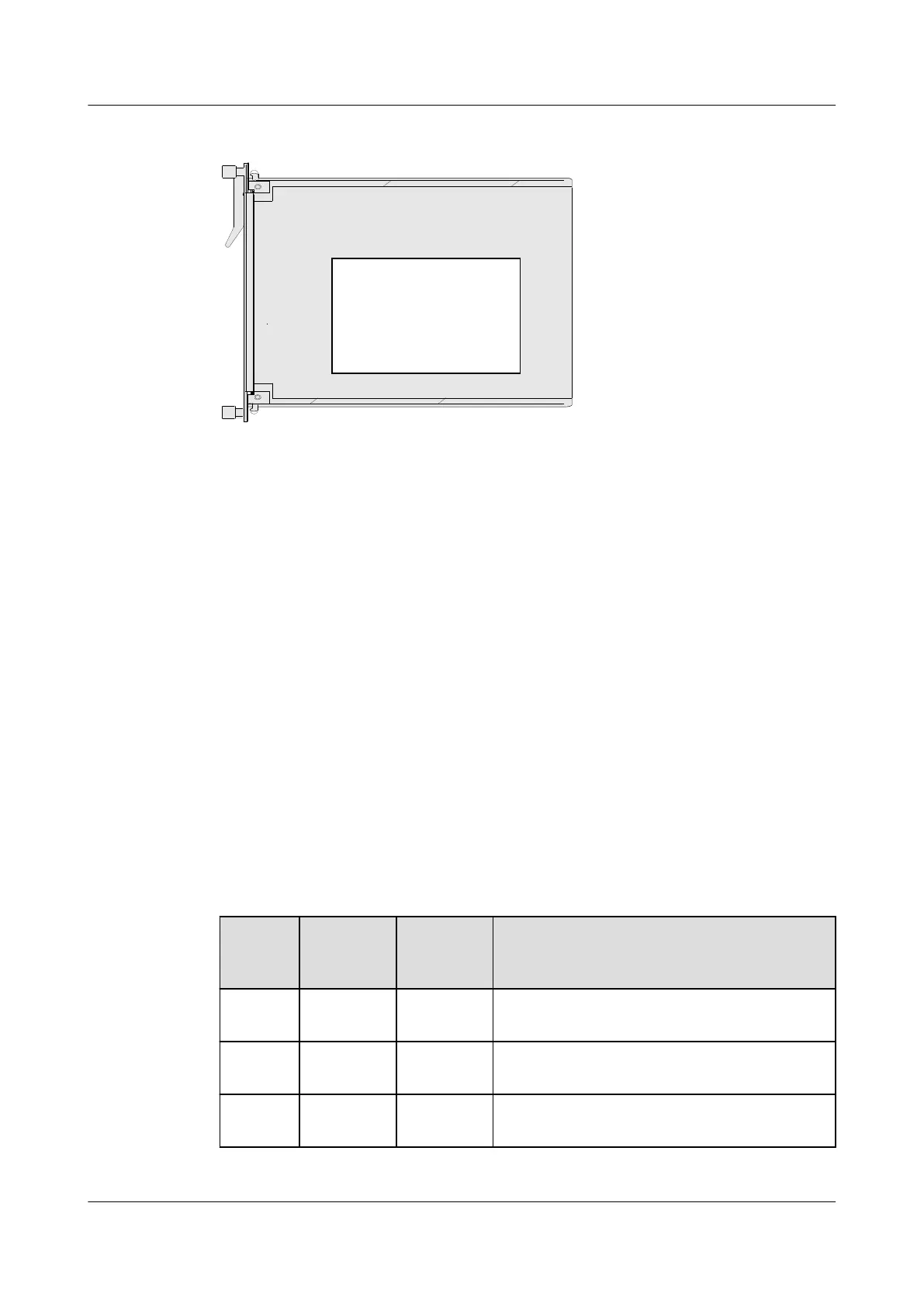

Figure 3-43 Position of the daughter board on the H801CITD board
The BITSB daughter board supported by the H801CITD board provides the following
functions:
l Two inputs of 2 Mbit/s or 2 MHz BITS clock signals
l Recovers the 2 Mbit/s clock signals or shapes the 2 MHz clock signals, which can be
used as the system clock source.
l One output of 2 Mbit/s or 2 MHz clock signals
3.10 Power Board (PRT)
Power boards (PRT) lead in DC power for supplying power to the device MA5600T or
MA5603T.
3.10.1 Power Boards (PRT) Comparison
In the table, "Yes" indicates "supported" and "No" indicates "not supported".
Table 3-29 Differences between power boards (PRT)
Board
Alarm
Monitorin
g
E-label Indicator
H801PR
TE
Yes Yes ALARM
H801PR
TG
No No No
H801PR
TA
Yes Yes PWR48 (power status indicator) and FUSE_48
(fuse status indicator)
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
310
