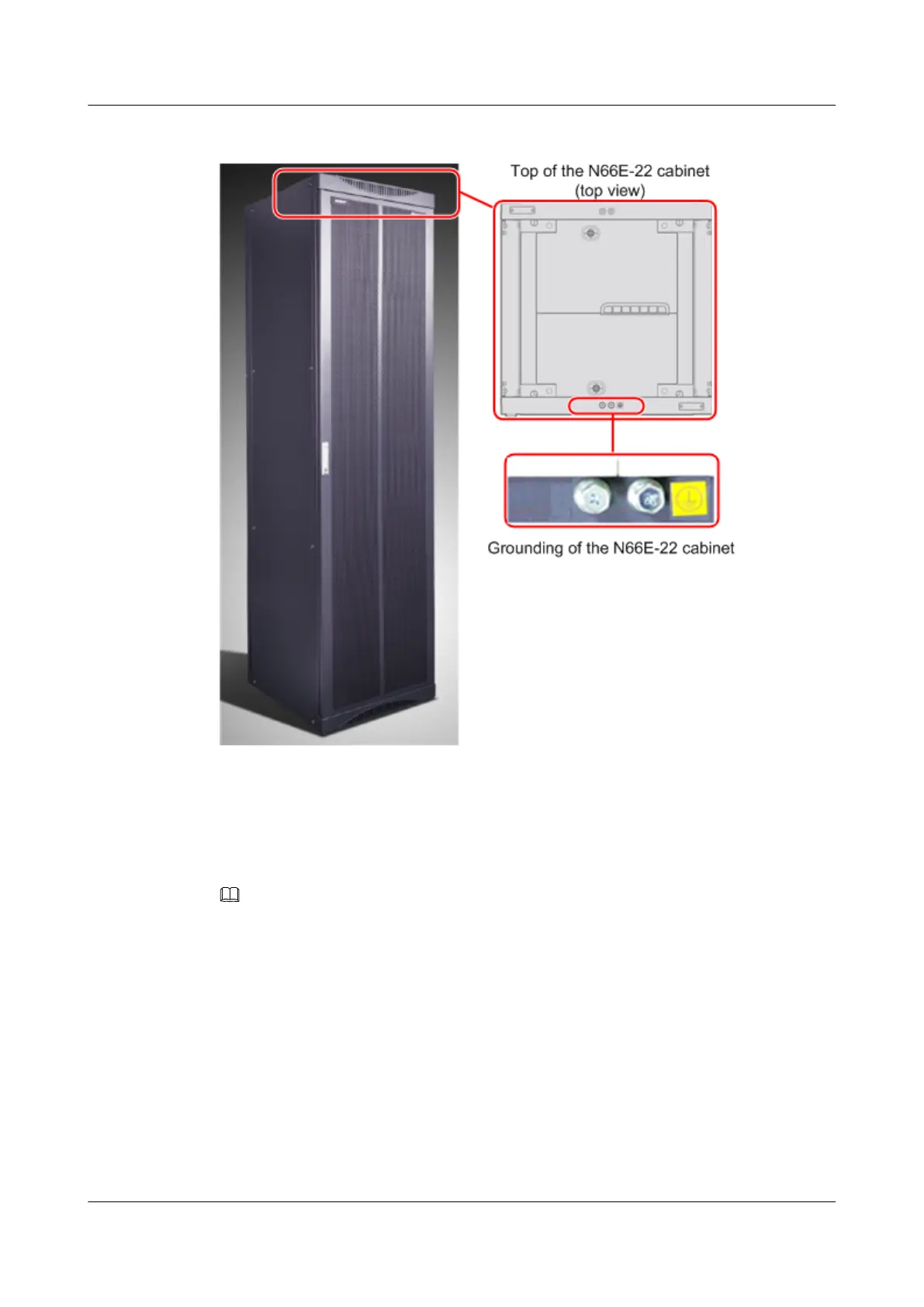

Figure 1-57 Grounding of the N66E-22 cabinet
1.3.9 External Connections
This topic describes the external connections of the N66E-22cabinet.
NOTE
External cables are not used in the assembly and debugging of the integrated equipment, but are
delivered to the customers and installed on site.
Figure 1-58 and Figure 1-59 show the external connections of the N66E-22 cabinet.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
65
