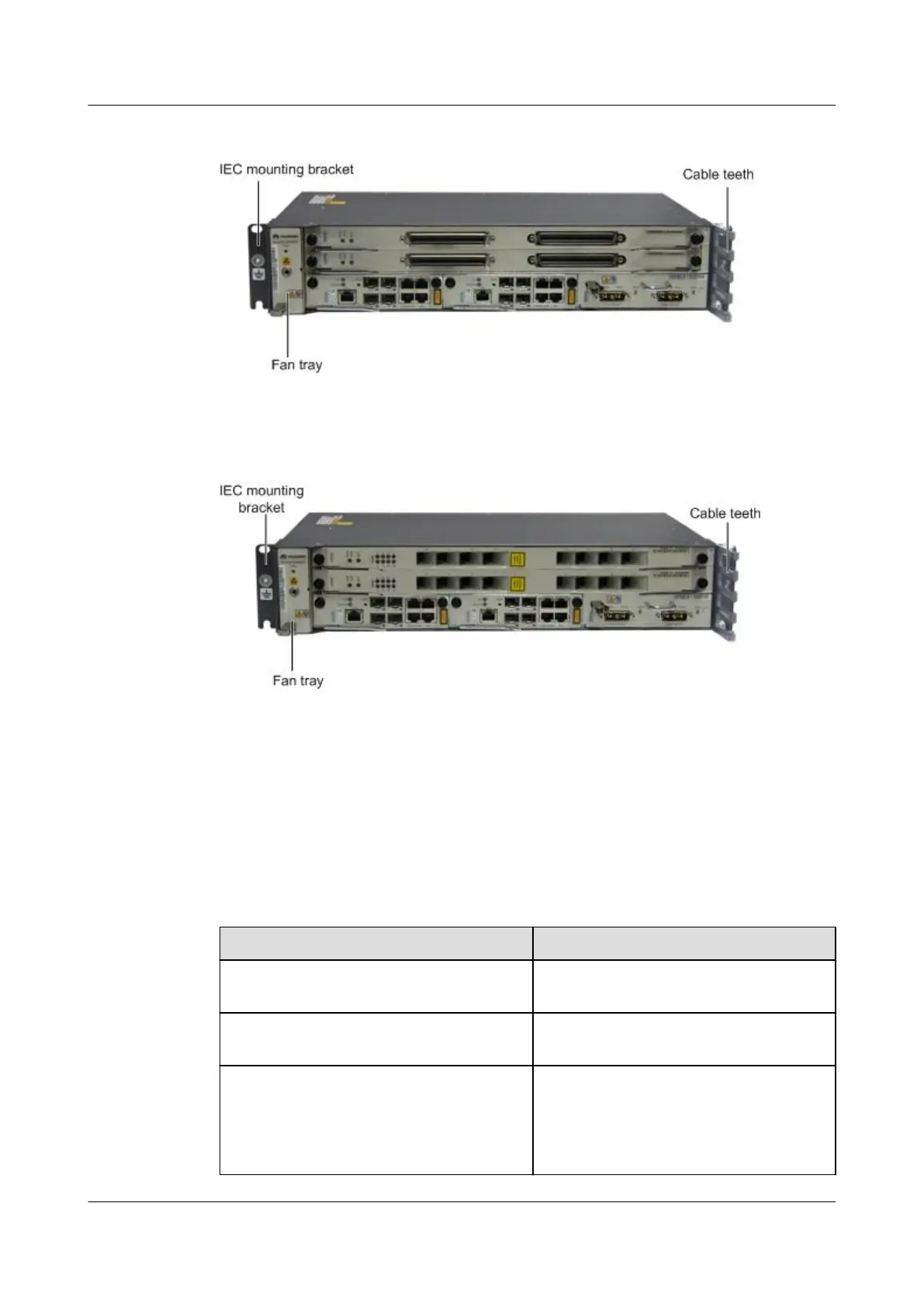

Figure 2-27 Appearance of the MA5608T chassis(xDSL)
Figure 2-28 Appearance of the MA5608T chassis(GPON)
2.6.2 Physical Specifications
This topic provides the dimensions, weight, and power consumption of the MA5608T chassis.
Dimensions and Weight
Table 2-42 Dimensions and weight of the MA5608T
Item
Specification
Dimensions (W x D x H, excluding
mounting brackets)
442mm×244.5mm×88.1mm
Dimensions (W x D x H, including mounting
brackets of IEC standard)
482.6mm×244.5mm×88.1mm
Dimensions (W x D x H, including mounting
brackets of ETSI standard)
NOTE
ETSI standard dimension is to add the ETSI
mounting bracket on the IEC mounting bracket.
535mm×244.5mm×88.1mm
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
2 Subrack and Chassis
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
132
