6.3 B-Type DC PDU
This topic provides the appearance and specifications of the B-type DC PDU, and describes
the function, power distribution principle, input terminals, output terminals, and control
switch of the PDU.
Appearance
Figure 6-14 and Figure 6-15 show the appearance of the B-type DC PDU.

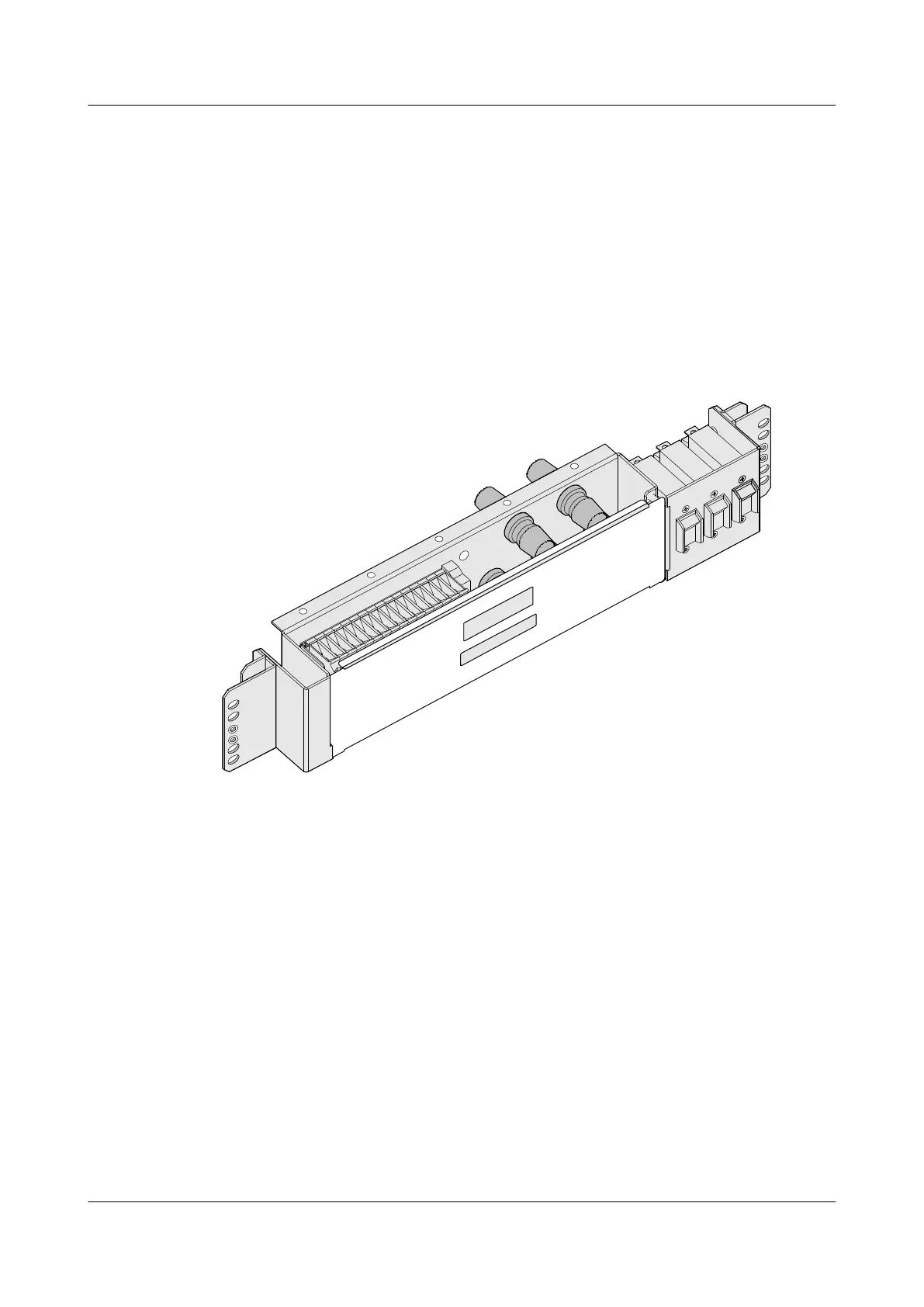

Figure 6-14 Appearance of the B-type DC PDU (with cover)
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
6 Electromechanical Device
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
924
