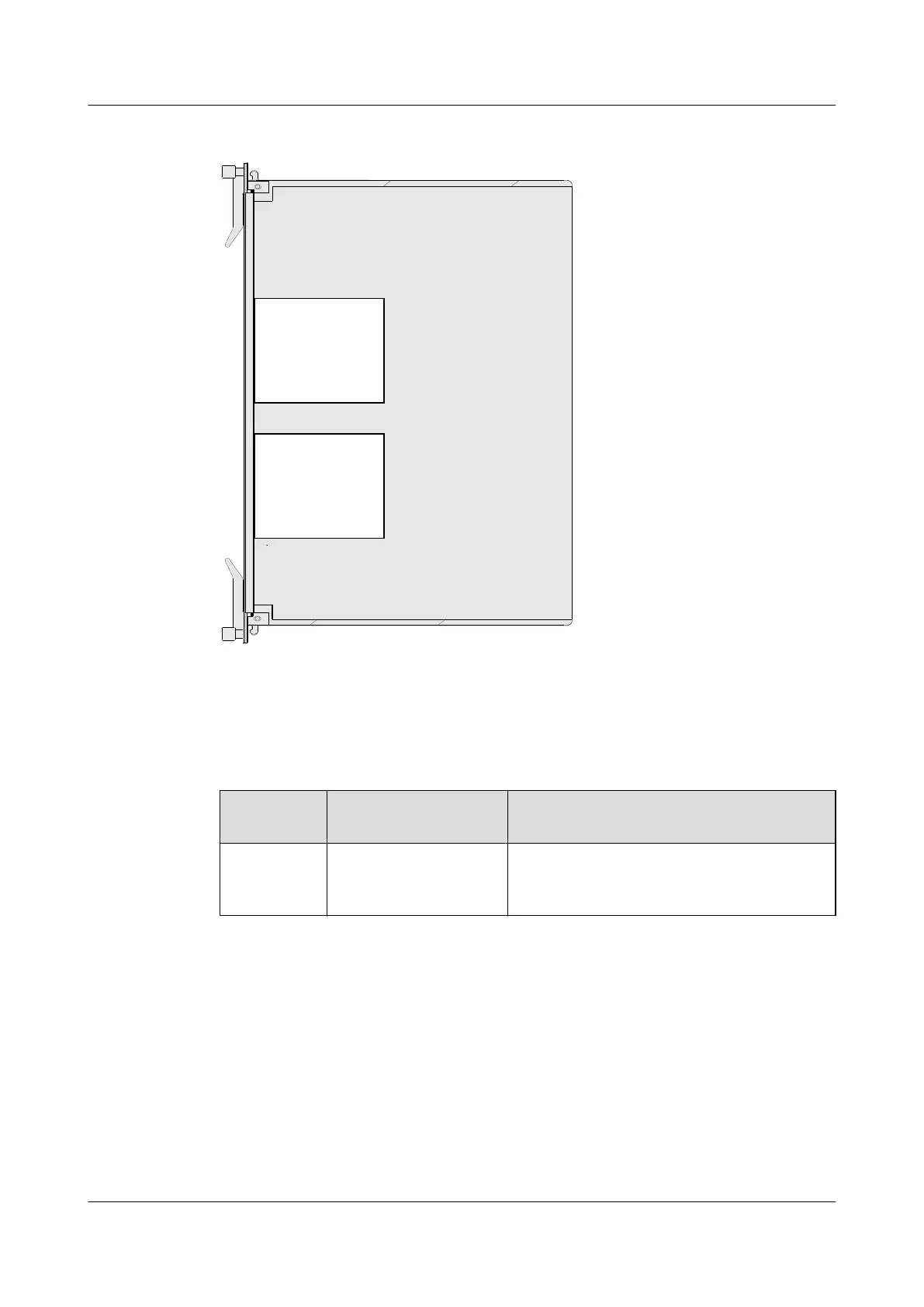

Figure 3-80 Positions of the daughter boards on the H801AIUG board
Daughter board 1
Daughter board 2
Table 3-39 describes the daughter board supported by the H801AIUG board.
Table 3-39 Daughter board supported by the H801AIUG board
Daughter
Board
Port Connection
O2CS Two ATM optical ports When only one daughter board is installed,
install the daughter board in the upper position
daughter board 1.
3.19 DSL&POTS Combo Board
The DSL&POTS combo board is a broadband and narrowband combo service board and
provides three application modes: combo mode, broadband mode, and narrowband mode. In
combo mode, the combo board supports both broadband and voice services.
3.19.1 ADSL2&POTS Combo Board Comparison
In the table, "Yes" indicates "supported" and "No" indicates "not supported".
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
