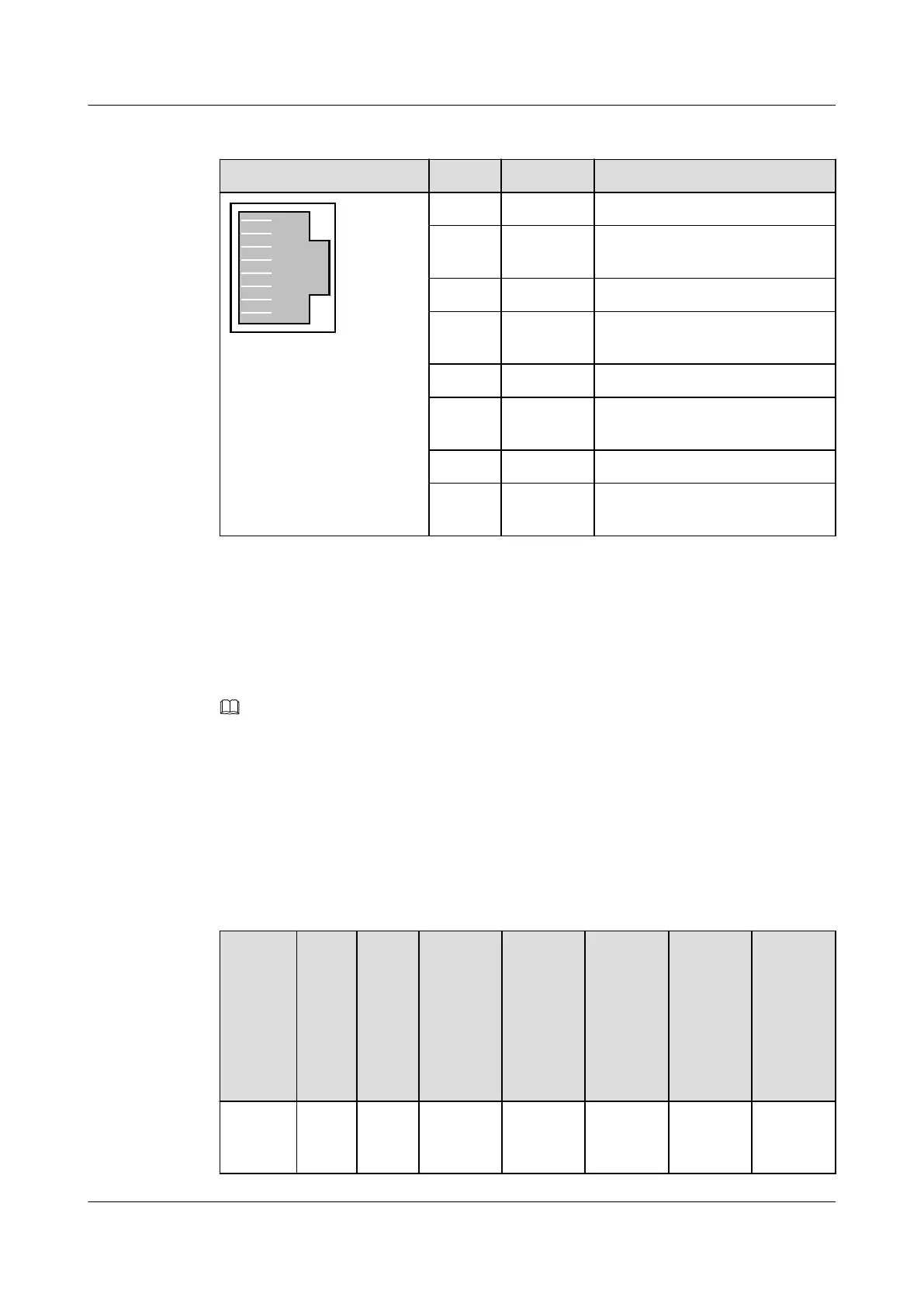

Table 3-18 Meaning of ALARM IN/OUT Port Signals
Port Pin Signal Meaning
1
2
3
4
5
6
7
8
1 ALM_RTN Alarm digital parameter RTN
2 ALM_IN4 Signal of channel 4 alarm digital
parameter
3 ALM_RTN Alarm digital parameter RTN
4 ALM_IN5 Signal of channel 5 alarm digital
parameter
5 ALM_RTN Alarm digital parameter RTN
6 ALM_IN6 Signal of channel 6 alarm digital
parameter
7 ALM_RTN Alarm digital parameter RTN
8 ALM_OU
T
Alarm DO
3.8 Upstream Interface Board (GIU)
Upstream interface boards provide upstream or cascading ports for the system. GIU is short
for general interface unit.
NOTE
Regardless of which running mode is switched to, once changing the running mode, you need to reset the
system and replace the related GIU board.
3.8.1 Upstream Interface Boards Comparison
The device supports GE and 10GE upstream interface boards.
In the table, "Yes" indicates "supported" and "No" indicates "not supported".
Table 3-19 Specifications lists of upstream interface boards
Board
Upstr
eam
Trans
missi
on (*)
Casca
ding
(*)
Intra-
board
aggregat
ion and
Inter-
board
aggregat
ion
Clock
Feature
Port Pluggab
le
Optical
Module
Pluggabl
e
Electrica
l
Module
H801GI
CD
Yes Yes Yes 1588ACR
(with
CKMD)
Four GE
ports
SFP SFP
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
253
