Port Pin Signal Remarks
4 ALM_IN2_+ Signal + of channel 2 alarm digital
parameter
5 ALM_IN2_- Signal - of channel 2 alarm digital
parameter
6 ALM_IN1_- Signal - of channel 1 alarm digital
parameter
7 ALM_IN3_+ Signal + of channel 3 alarm digital
parameter
8 ALM_IN3_- Signal - of channel 3 alarm digital
parameter

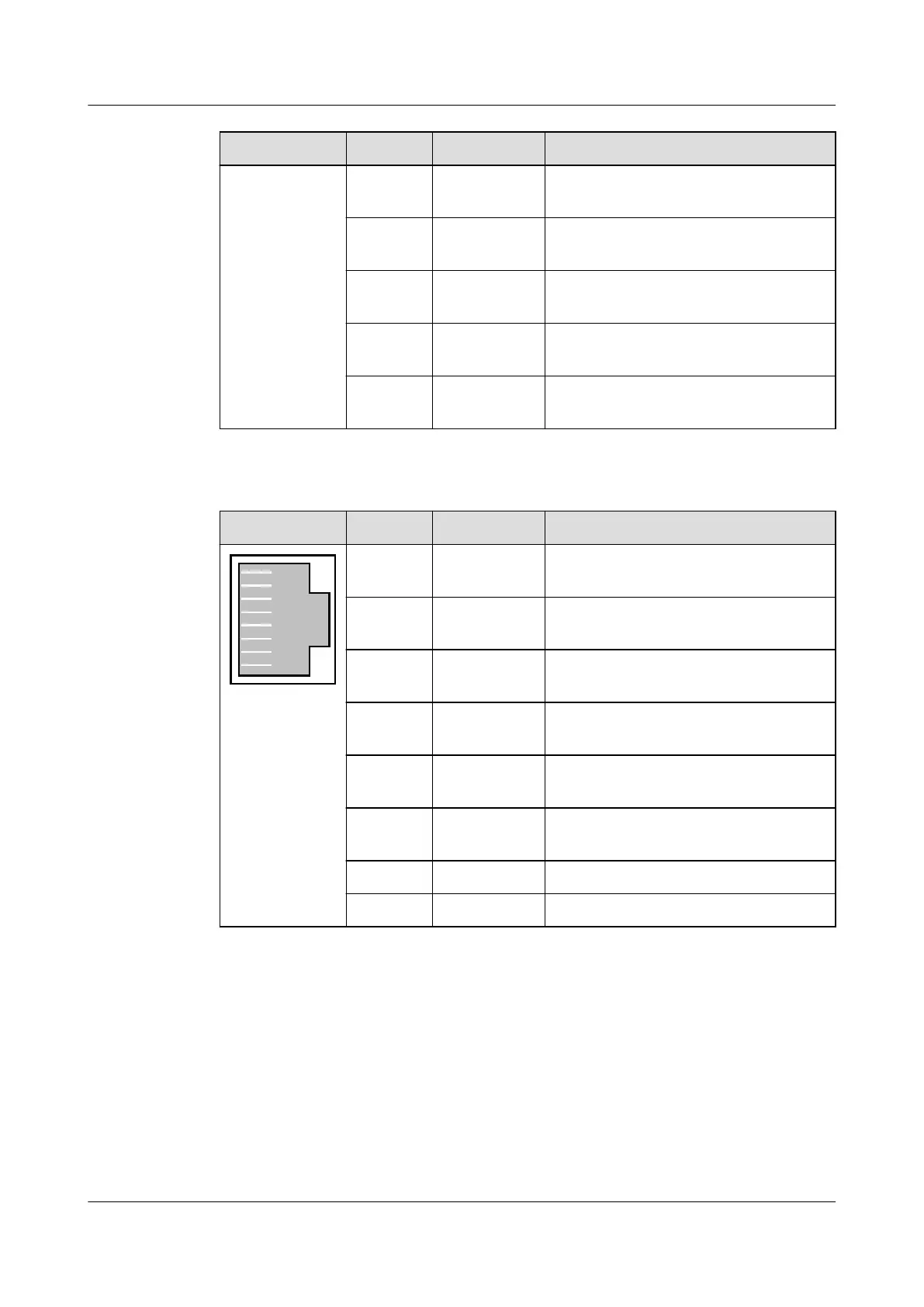

Table 3-28 Pin assignments of the ALM port (lower)
Port
Pin Signal Remarks
1
2
3
4
5
6
7
8
1 ALM_IN4_+ Signal + of channel 4 alarm digital
parameter
2 ALM_IN4_- Signal - of channel 4 alarm digital
parameter
3 ALM_IN5_+ Signal + of channel 5 alarm digital
parameter
4 ALM_IN6_+ Signal + of channel 6 alarm digital
parameter
5 ALM_IN6_- Signal - of channel 6 alarm digital
parameter
6 ALM_IN5_- Signal - of channel 5 alarm digital
parameter
7 ALM_OUT_+ Output + of the alarm control signals
8 ALM_OUT_- Output - of the alarm control signals
Daughter Board
The H801CITD board provides a daughter board port and can be configured with the BITSB
clock daughter board.
Figure 3-43 shows the position of the clock daughter board on the H801CITD board.
