Working Principle

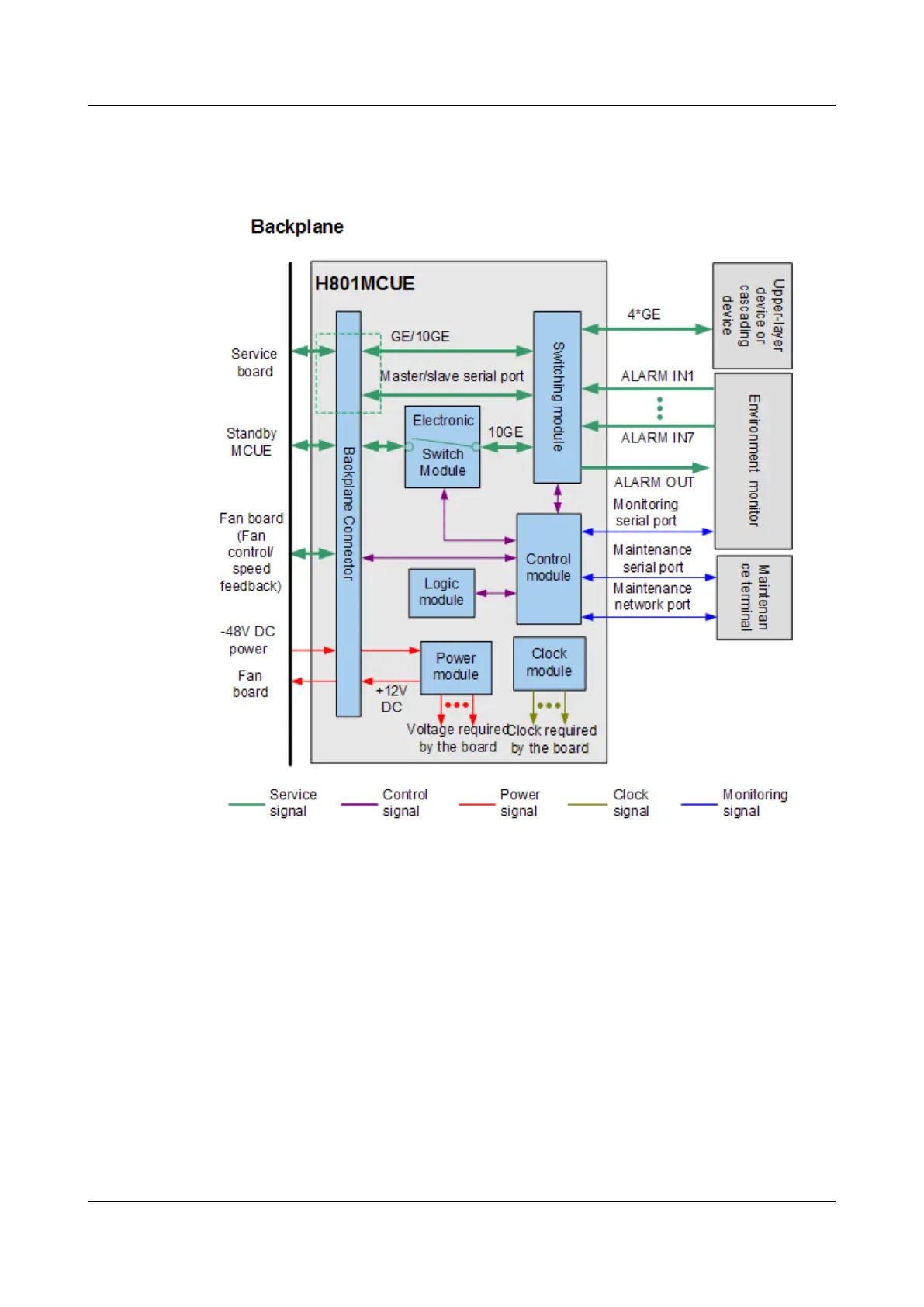

Figure 3-23 Working principle of the H801MCUE board
The basic working principle of the H801MCUE board is as follows:
l The control module manages the entire board and the service boards.
l The logic module implements logic control.
l The power module supplies power to other functional modules of the board.
l The clock module provides clock signals for other functional modules of the board.
l The switching module provides the GE port and the 10GE port to switch and aggregate
services at Layer 2 or Layer 3.
– Providing four GE ports for transmitting traffic upstream
– Providing 2 GE/10GE ports for implementing GE/10GE switching on each service
board
– Providing one 10GE port for load sharing with the standby control board
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
250
