Functional Specifications
Please refer to "Upstream Interface Board Comparison".
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle

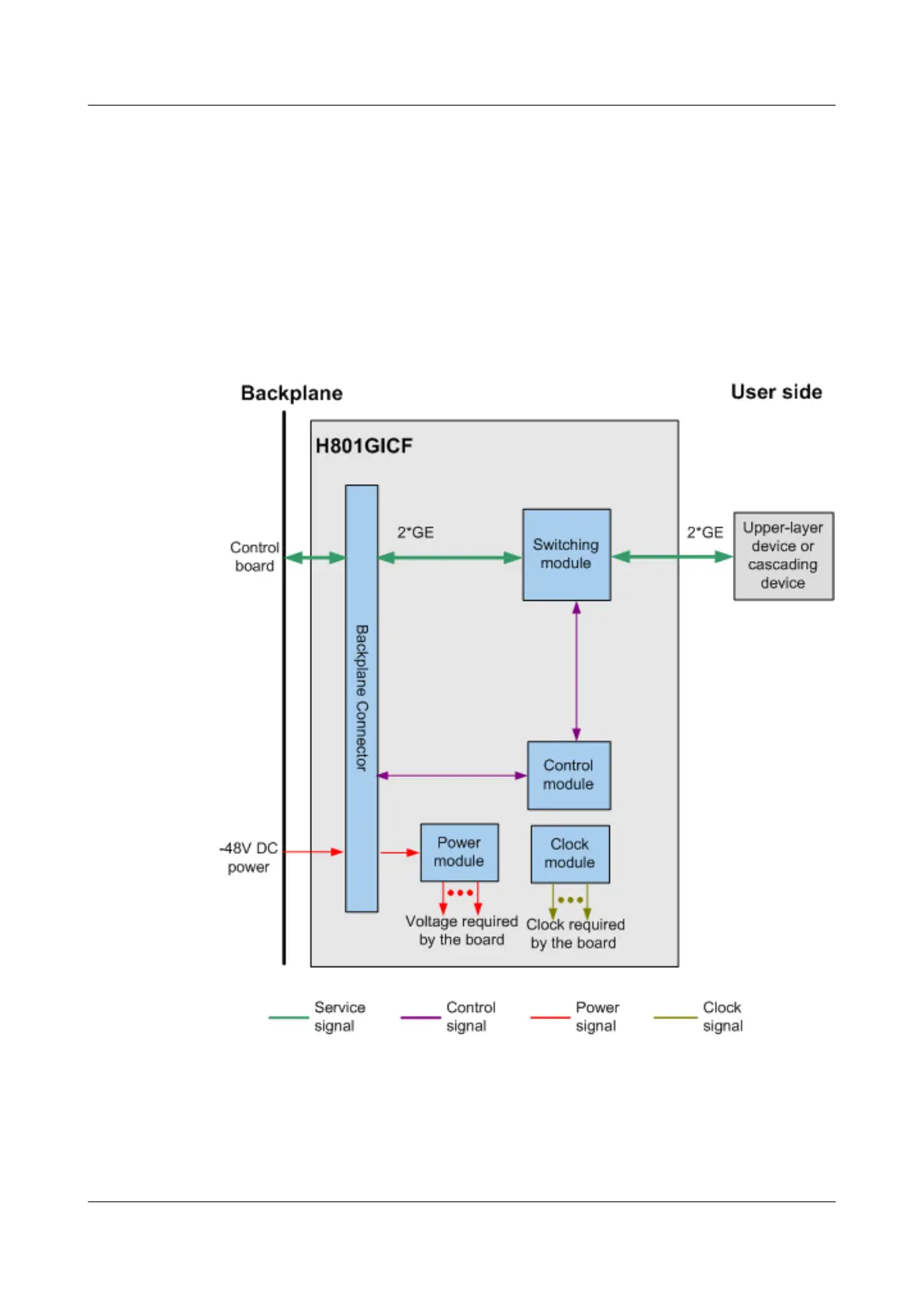

Figure 3-27 Working principle of the H801GICF board
The basic working principle of the H801GICF board is as follows:
l The control module loads the board software, controls the running of the software, and
manages the entire board.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
265
