Working Principle

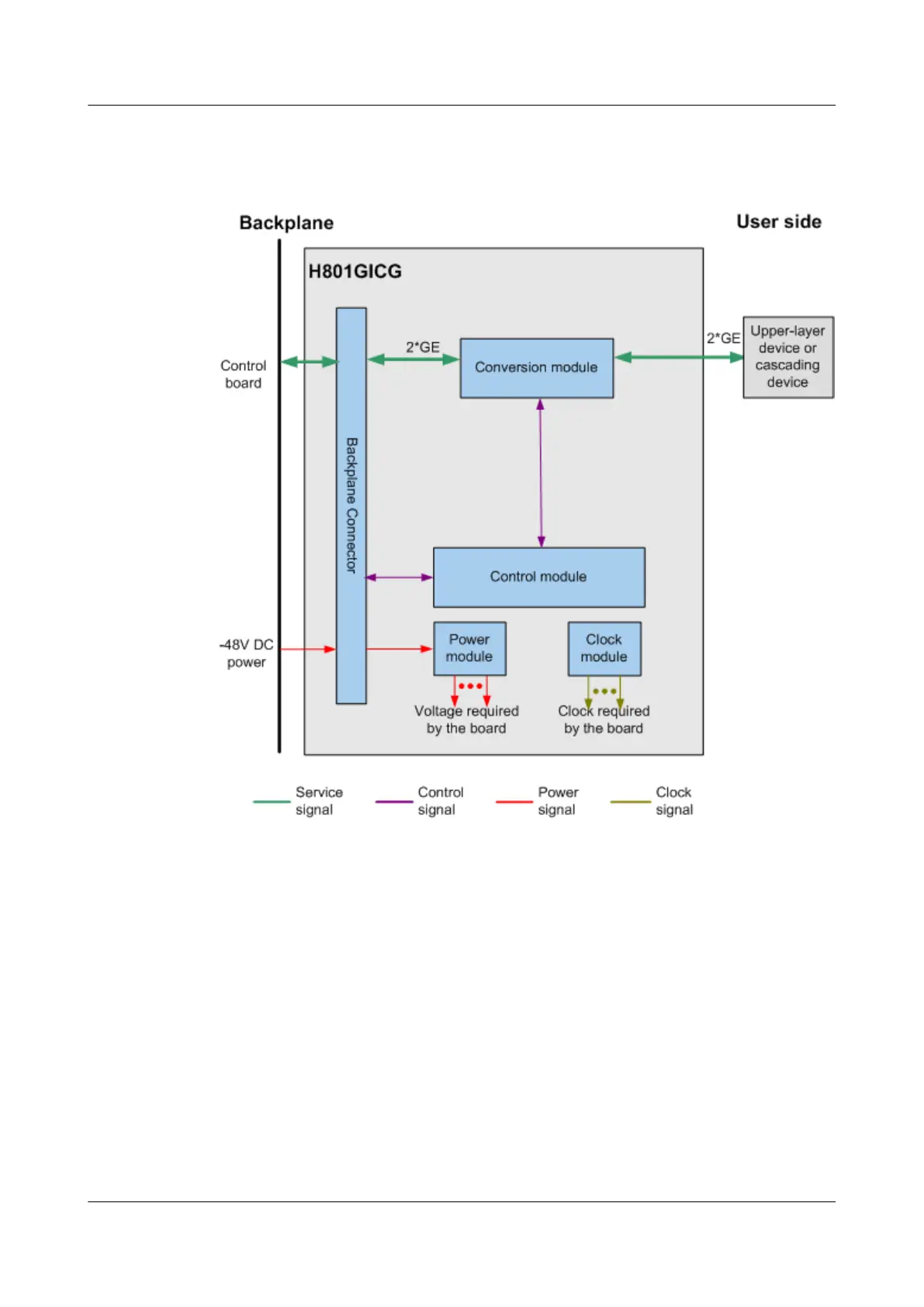

Figure 3-28 Working principle of the H801GICG board
The basic working principle of the H801GICG board is as follows:
l The control module loads the board software, controls the running of the software, and
manages the entire board.
l The conversion module supports transparent transmission of the information.
l The power module supplies power to other functional modules of the board.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
