Working Principle

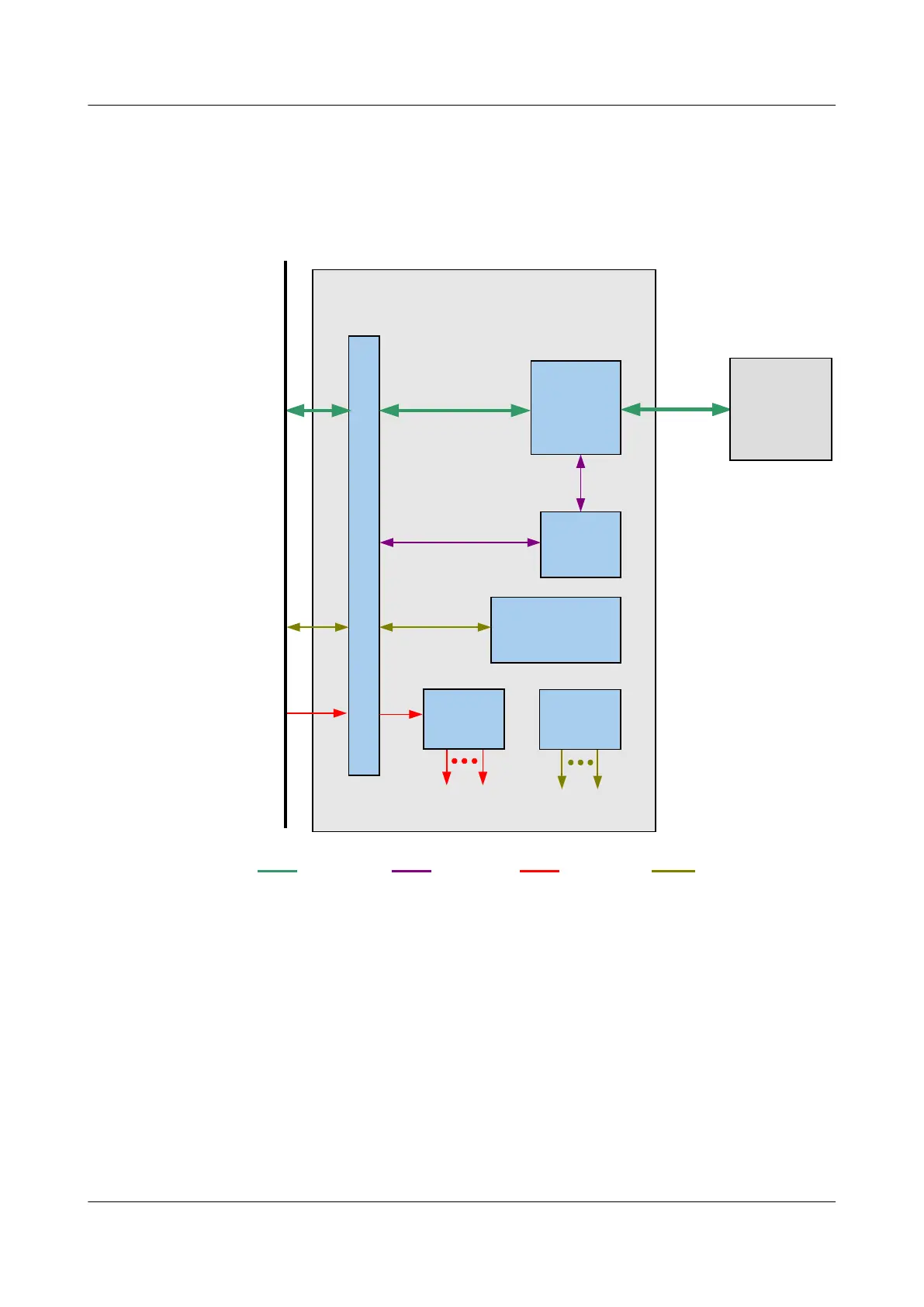

Figure 3-34 Working principle of the H801X2CS board
B
a
c
k
p
l
a
n
e
C
o
n
n
e
c
t
o
r
Switching
module
Control
module
2*10GE
2*10GE
Clock
signal
-48V
DC
power
Power
module
Voltage required
by the board
Clock
module
Clock required
by the board
Upper-layer
device or
cascading
device
Service
signal
Control
signal
Power
signal
Backplane
User side
H801X2CS
Synchronization
Ethernet clock
module
Clock signal
Control
board
The basic working principle of the H801X2CS board is as follows:
l The control module reports the status of and manufacturing information about the board,
and provides the interface information. The control module also manages the modules on
the board, and processes alarms.
l The interface module provides two 10GE ports.
l The synchronization Ethernet clock module extracts clock signals from the 10GE
signals, and synchronizes the 8 kHz clock of the control board with the clock signals.
l The power module supplies power to other functional modules of the board.
l The clock module provides clock signals for other functional modules of the board.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
285
