Functional Specifications
The H801BIUA board supports the following functions:
l Two standard BITS clock inputs and one standard BITS clock output
l Input and output of 2 MHz and E1 signals
l Tracing the input clock source of the two channels of BITS clock or tracing the output
clock source of the control board
l Multiple working modes, such as tracing, holdover, and free-run
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle

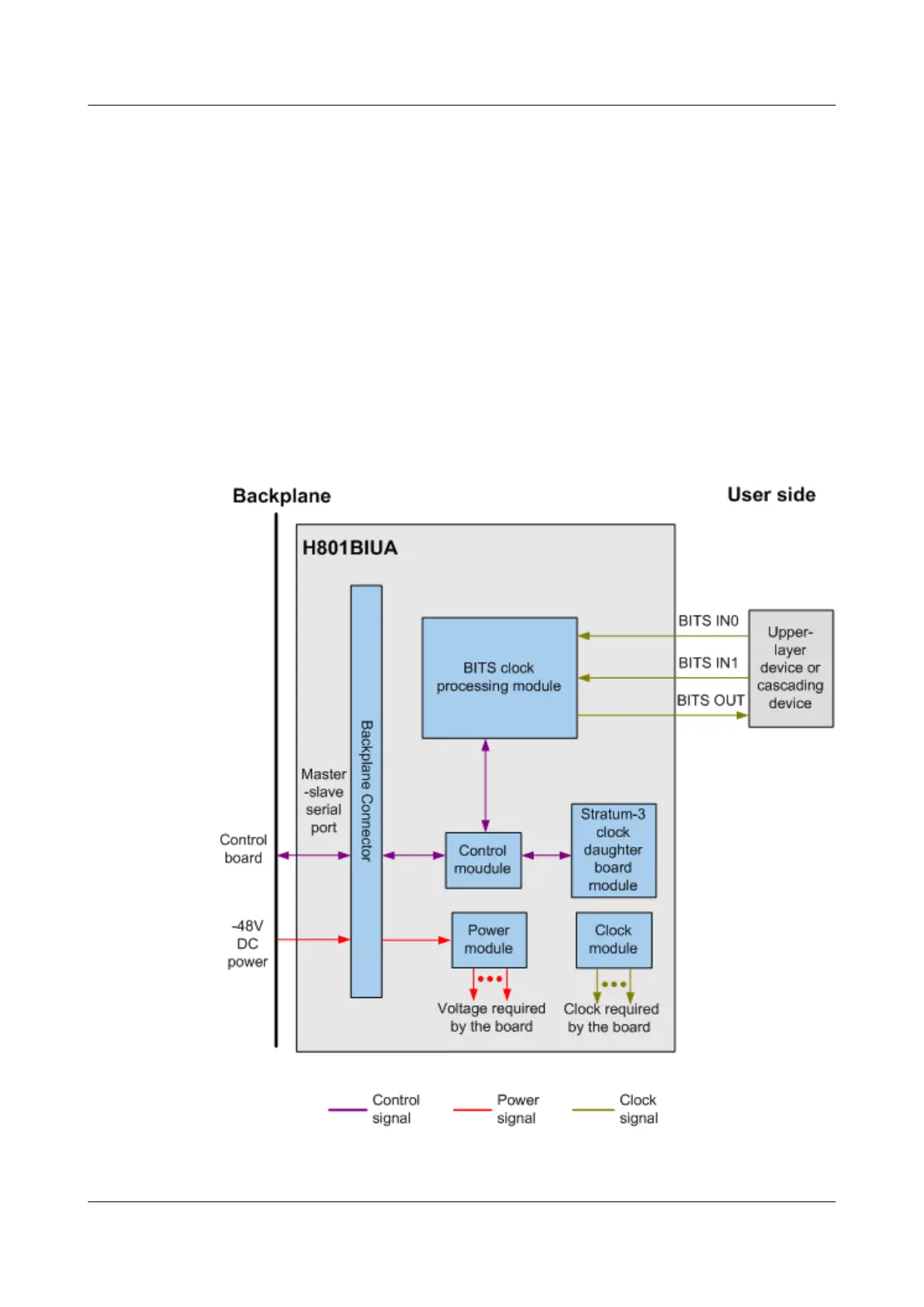

Figure 3-38 Working principle of the H801BIUA board
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
