Working Principle

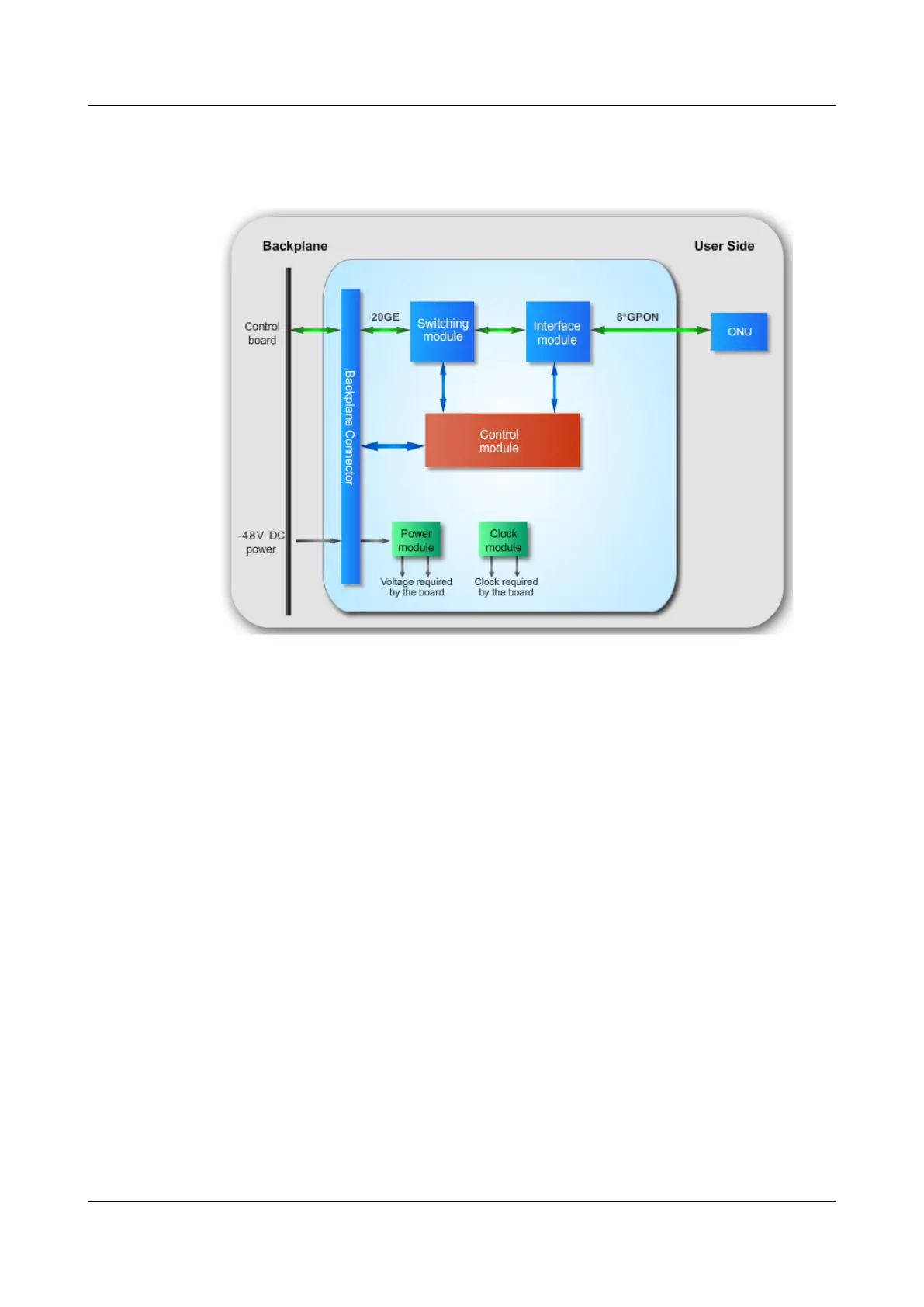

Figure 3-72 Working principle of the H801GPMD board
The basic working principle of the H801GPMD board is as follows:
l The control module loads the board software, controls the running of the board, and
manages the board.
l The switching module aggregates the signals from eight GPON ports.
l The interface module converts between GPON signals and Ethernet packets.
l The power module supplies power to other functional modules of the board.
l The clock module provides the working clock for other functional modules of the board.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
393
