l In the downstream direction, GE packets are transmitted from the control board to the
interface module of the H802DSRD board through the backplane bus. The GE packets
are decapsulated by the CPU module, processed by the ISDN service processing module,
and then converted into service data. The service data is transmitted to the subscriber
through the interface module.

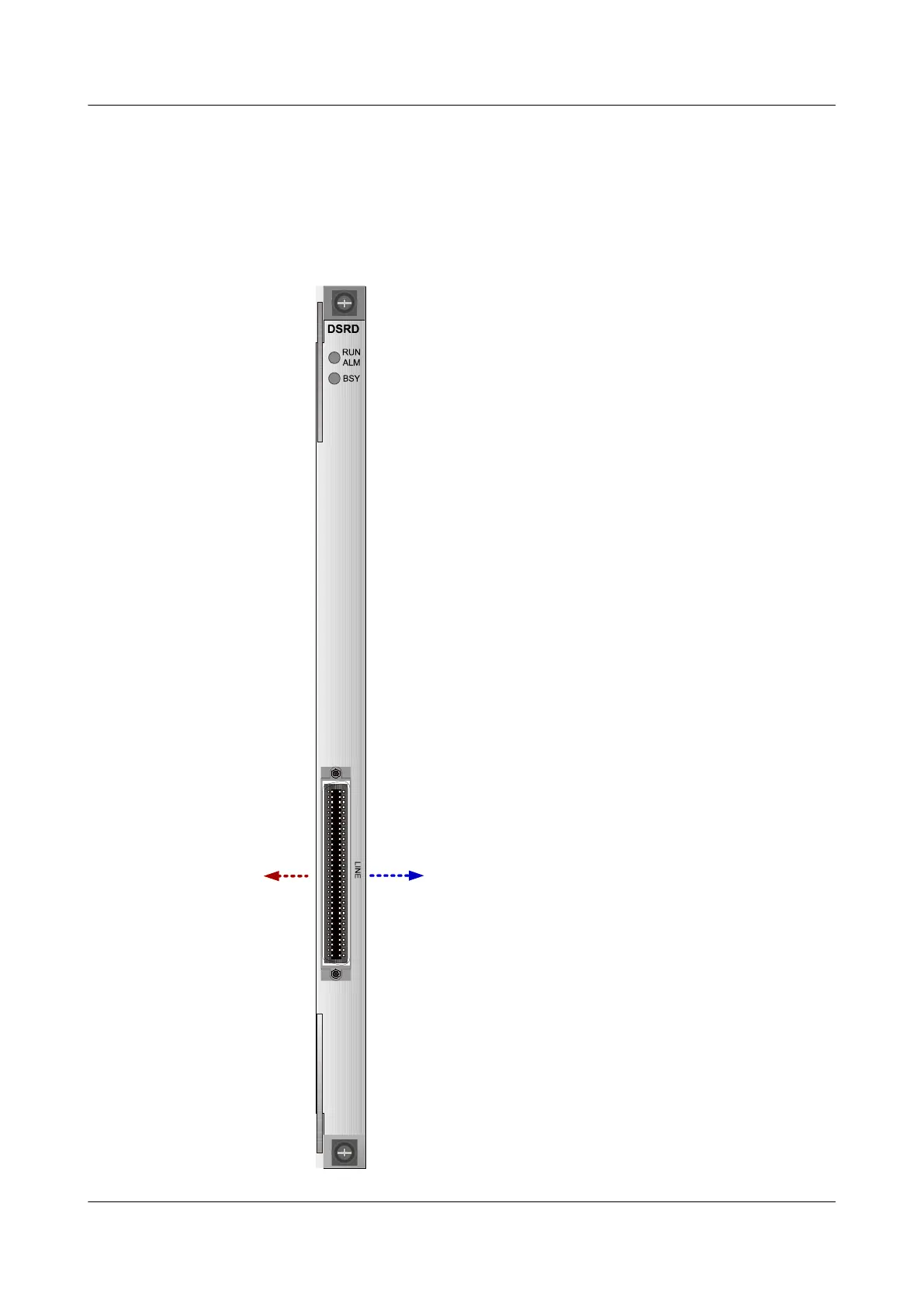

Front Panel Port
LINE
(0-31)
Connected the port to the MDF
