Feature and Specifications
Please refer to "Voice Board Comparison".
Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".

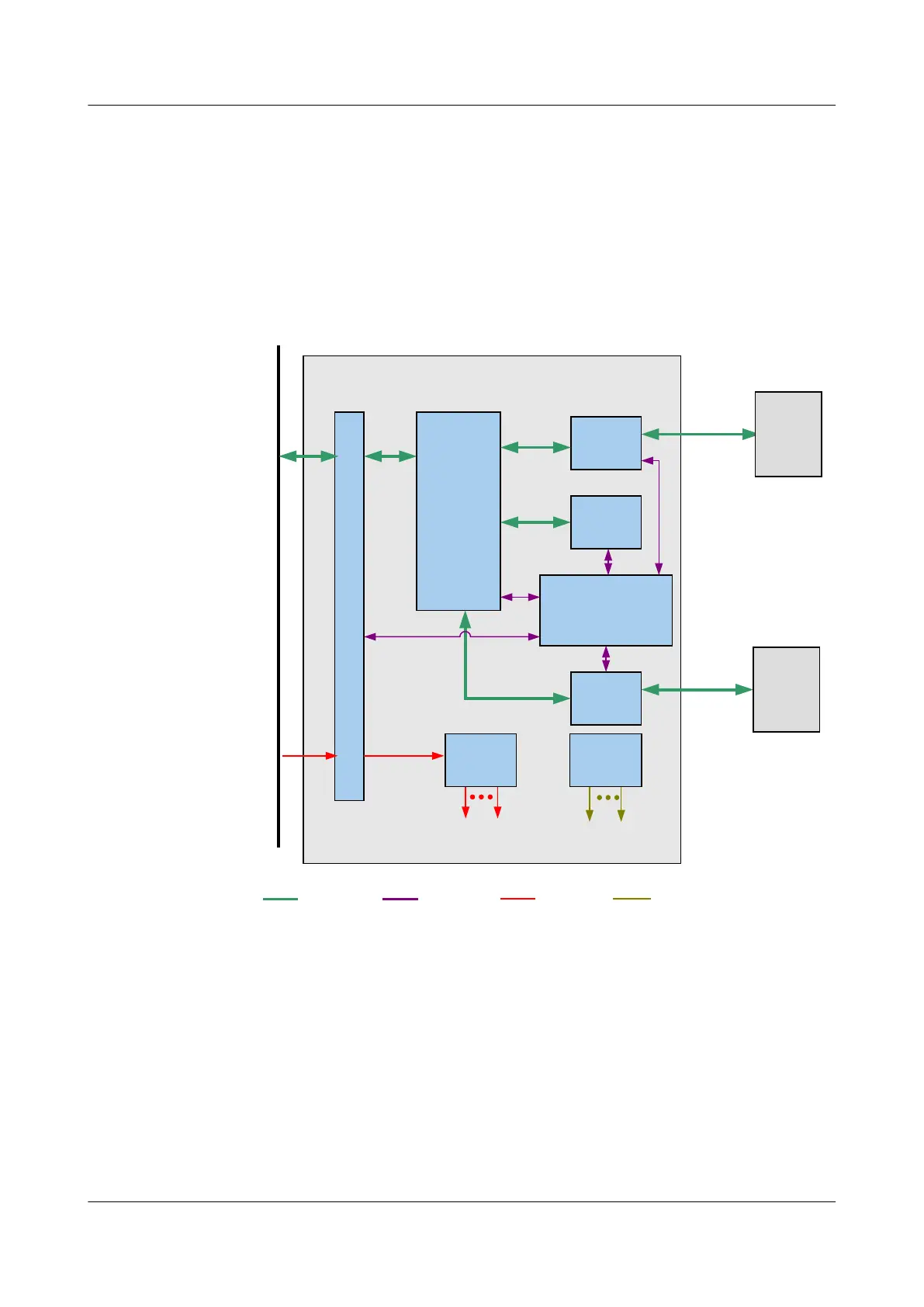

Working Principle
H802EDTB
B
a
c
k
p
l
a
n
e
C
o
n
n
e
c
t
o
r
Control
board
Service
processing
module
16*E1
Backplane
User side
E1
interface
module
SDHSL
interface
module
DSP
module
Control module
TDM
SHDSL
modem
16*SHDSL
PBX/
DDN
Service
signal
Control
signal
Power
signal
Clock
signal
-48V
DC
power
Power
module
Voltage required
by the board
Clock
module
Clock required
by the board
The H802EDTB board provides two 8-channel E1 ports and one 16-channel SHDSL port and
its basic working principle is as follows:
l The control module controls the board, and loads and configures the service processing
logic. The LocalBus and MII interfaces are for the service processing module.
l The service processing module implements switching of the time division multiplexing
(TDM) timeslots and IP packets distribution inside the board, configures and controls the
E1 ports, and provides the HDLC channel for its communication with the control board.
In addition, the service processing module supports packet filtering, traffic control, and
encryption.
l The E1 interface module provides 16 channels of E1 access services and signal
conversion.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
506
