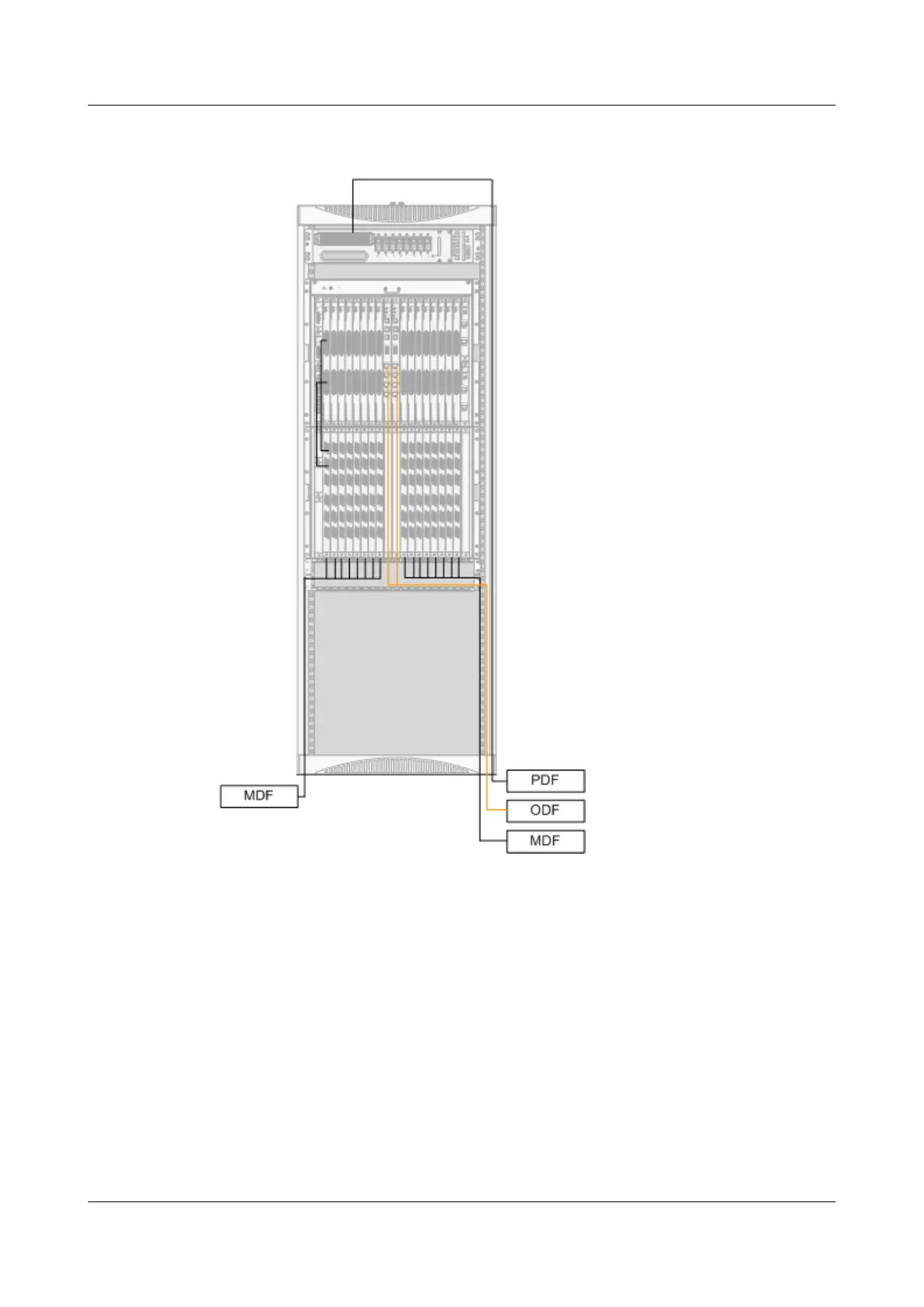

Figure 1-42 External connections of the DC-powered cabinet installed with one service
subrack and one SPL subrack (underfloor cabling)
External Connections of the AC-powered Cabinet with One Service Subrack
(MA5600T, with a Battery Group)
Figure 1-43 and Figure 1-44 show the external connections of the N66E-18 cabinet installed
with two service subracks.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
1 Cabinet
