l In the downstream direction, the forwarding module decapsulates the IP packets from the
backplane bus, performs CAR on the IP packets, reorganizes the IP packets into
ATM/PTM packets, and transmits the ATM/PTM packets to the interface module. The
interface module converts the ATM/PTM packets into analog signals and transmits the
signals to subscriber lines.

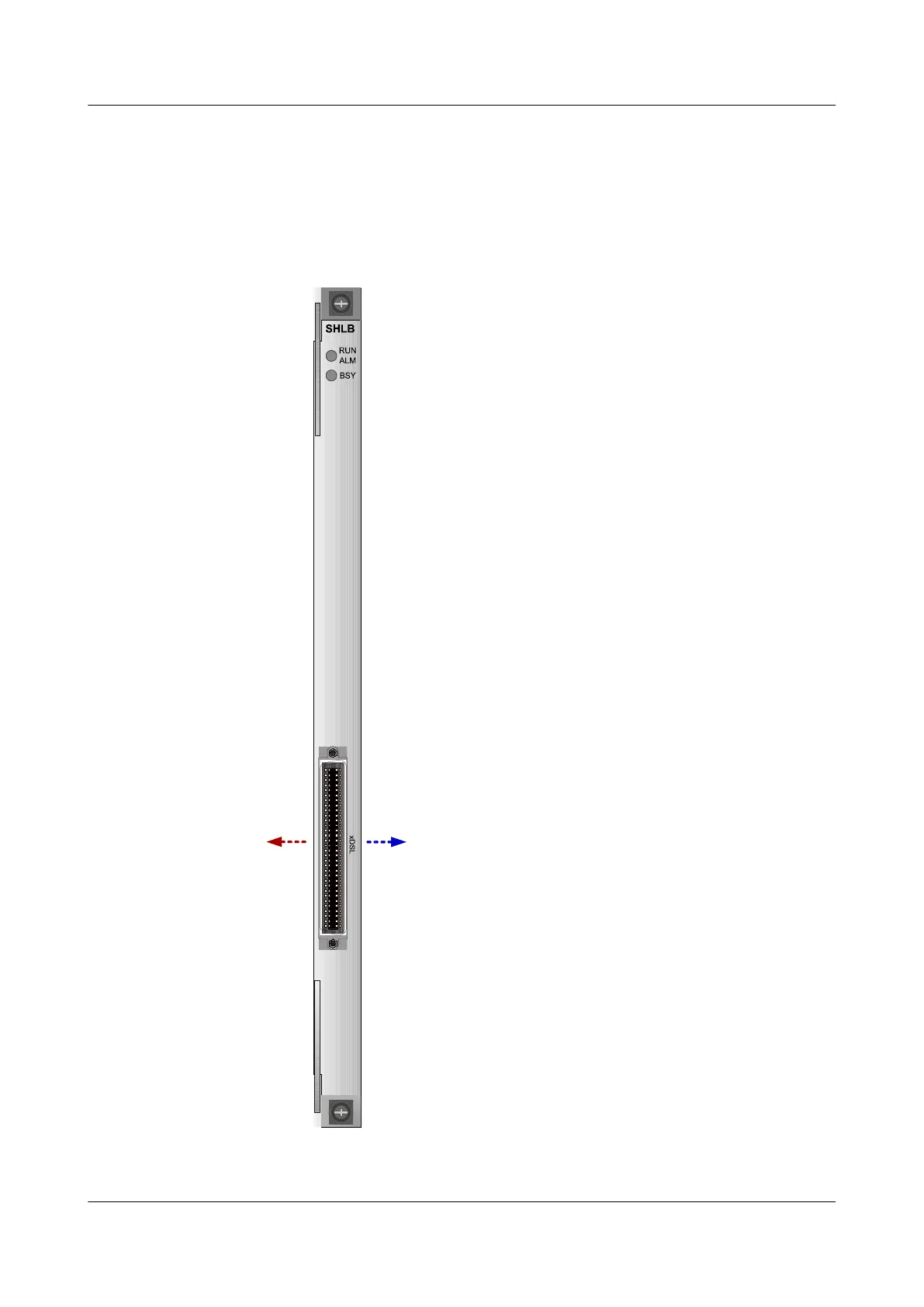

Front Panel Port
xDSL
(0-15)
Connected to the MDF
