Technical Specifications
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle

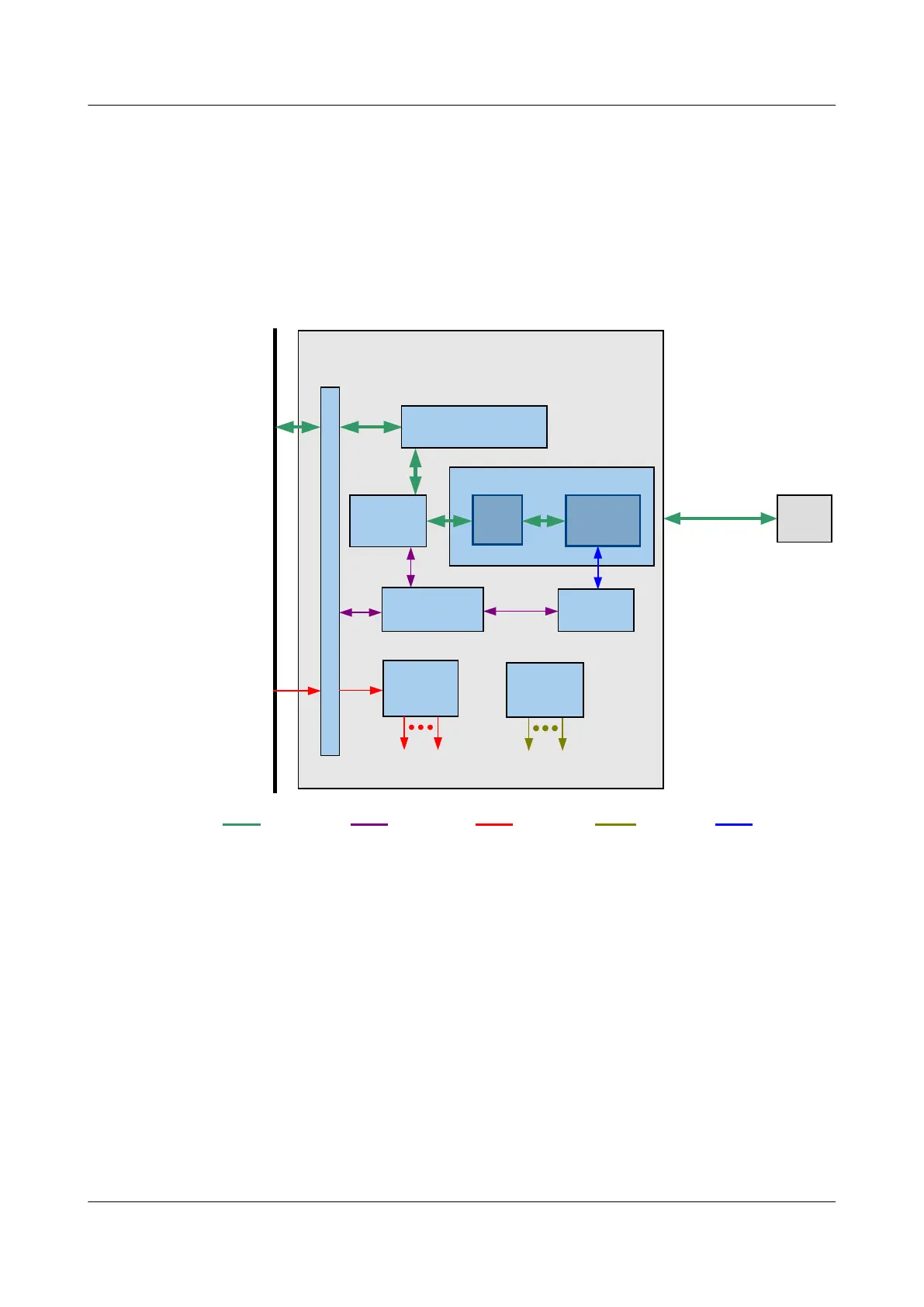

Figure 3-145 Working principle of the H802SHGM board
GE
H802SHGM
B
a
c
k
p
l
a
n
e
C
o
n
n
e
c
t
o
r
Control
module
MELT
module
-48V
DC
power
Control
board
Service
signal
Control
signal
Power
signal
Clock
signal
Test
signal
Front panelBackplane
Power
module
Voltage required
by the board
Clock
module
Clock required
by the board
Interface
module
Forwarding module
Protection module
DC
block
Protector
STU-R
32*SHDSL
The basic working principle of the H802SHGM board is as follows:
l The control module loads the board software, controls the running of the board, and
manages the entire board.
l The protection module protects and isolates the board from lightning strikes. The DC
block isolates the direct current. The protector protects the high voltage.
l The forwarding module processes the signals. After being processed by the control
module, the signals are transmitted to the backplane bus through the interface of the
backplane.
l The interface module inputs, outputs, and converts the signals.
l The power module supplies power to each functional module of the board.
l The clock module provides clock signals for each functional module of the board.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
761
