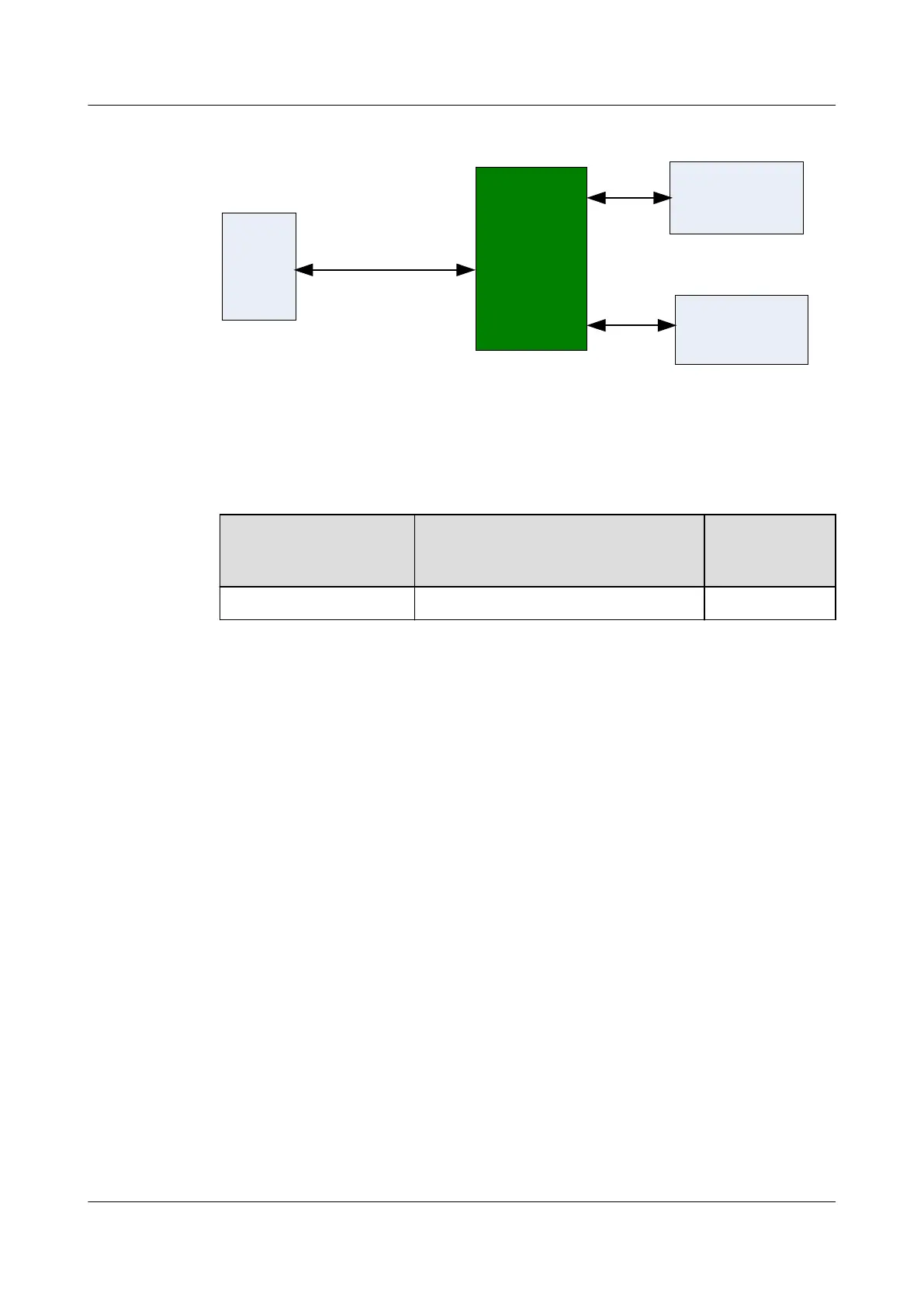

Figure 3-159 External connections of the H801VSNLA board
VDSL2 over POTS
VDSL2
POTS
VDSL2
service board
PSTN device
VSNLA
VTU-R
Technical Specifications
Table 3-212 Technical specifications of the H801VSNLA board
Board
Dimensions (W x D x H) Maximum
Power
Consumption
H801VSNLA 22.86 mm x 237.00 mm x 395.40 mm 0 W
Working Principle
The H801VSNLA board consists of two parts: splitter module and protection module. The
splitter module separates the VDSL signals and the POTS signals. The protection module
supports the over-voltage protection of the LINE line.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
