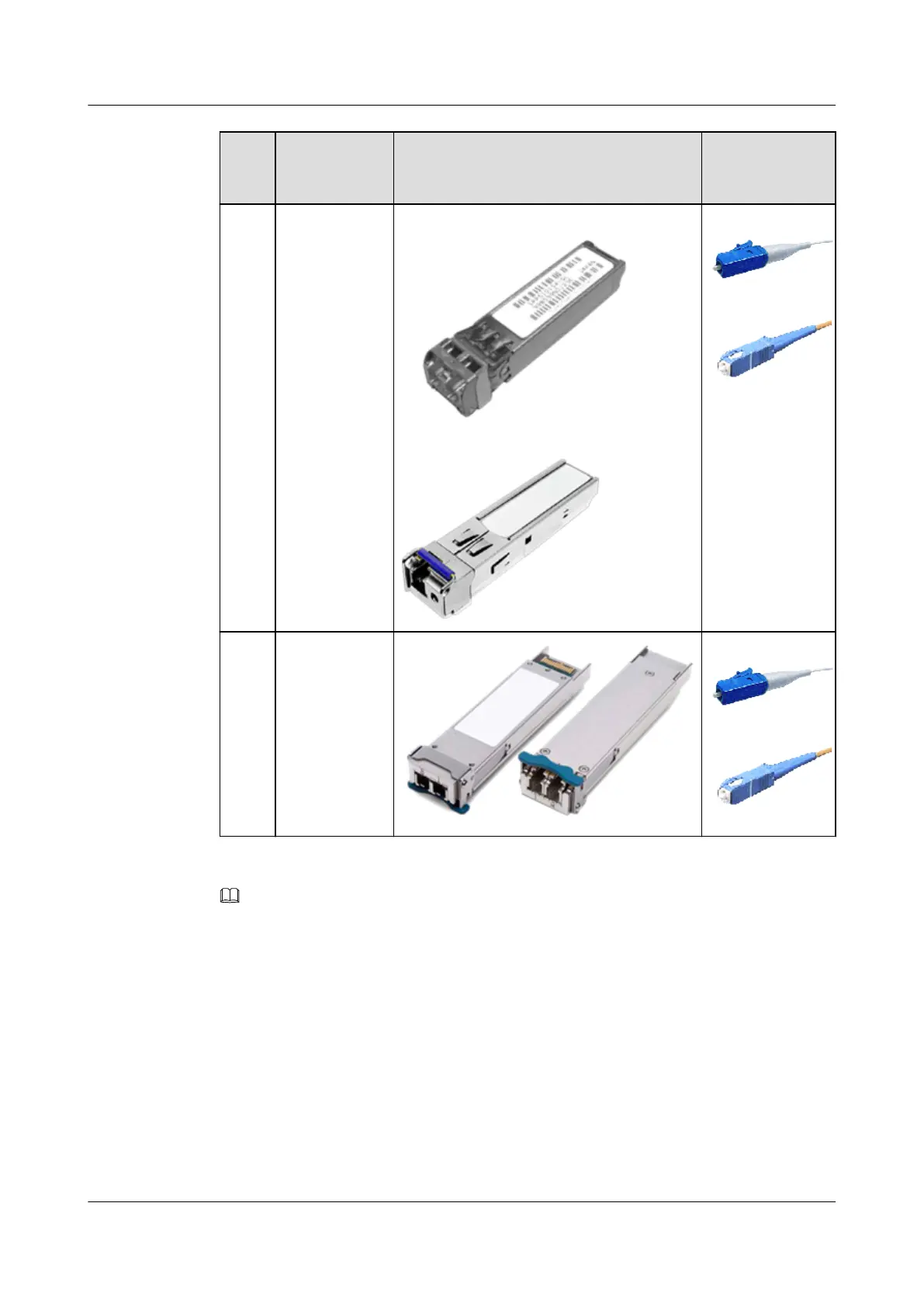

Mod
ule
Type
Description Appearance Connector
Type
SFP+ High-speed (8
Gbit/s and 10
Gbit/s) SFP
Two-fiber bi-directional optical module
One-fiber bi-directional optical module
LC/PC
SC/PC, SC/UPC
XFP 10-Gigabit
SFP, supports
LC connectors.
LC/PC
SC/PC, SC/UPC
NOTE
l The appearances of SFP, CSFP, and eSFP optical modules are the same.
l SFP, CSFP, and eSFP optical modules use the SFP connector.
l Unlike SFP optical modules, eSFP optical modules support performance reporting.
l A CSFP optical module is a multi-channel optical module. Huawei devices use two-channel
CSFP optical modules.
l The size of an SFP+ optical module is the same as that of an SFP optical module, and the size of an
XFP optical module is larger than that of an SFP+ optical module.
Label on the Optical Module
The label attached on an optical module presents the information about this optical module.
Figure 4-1 shows the label of a PON optical module; Figure 4-2 shows the label of a
10GE/GE/FE optical module.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
4 Optical and Electrical Module
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
843
