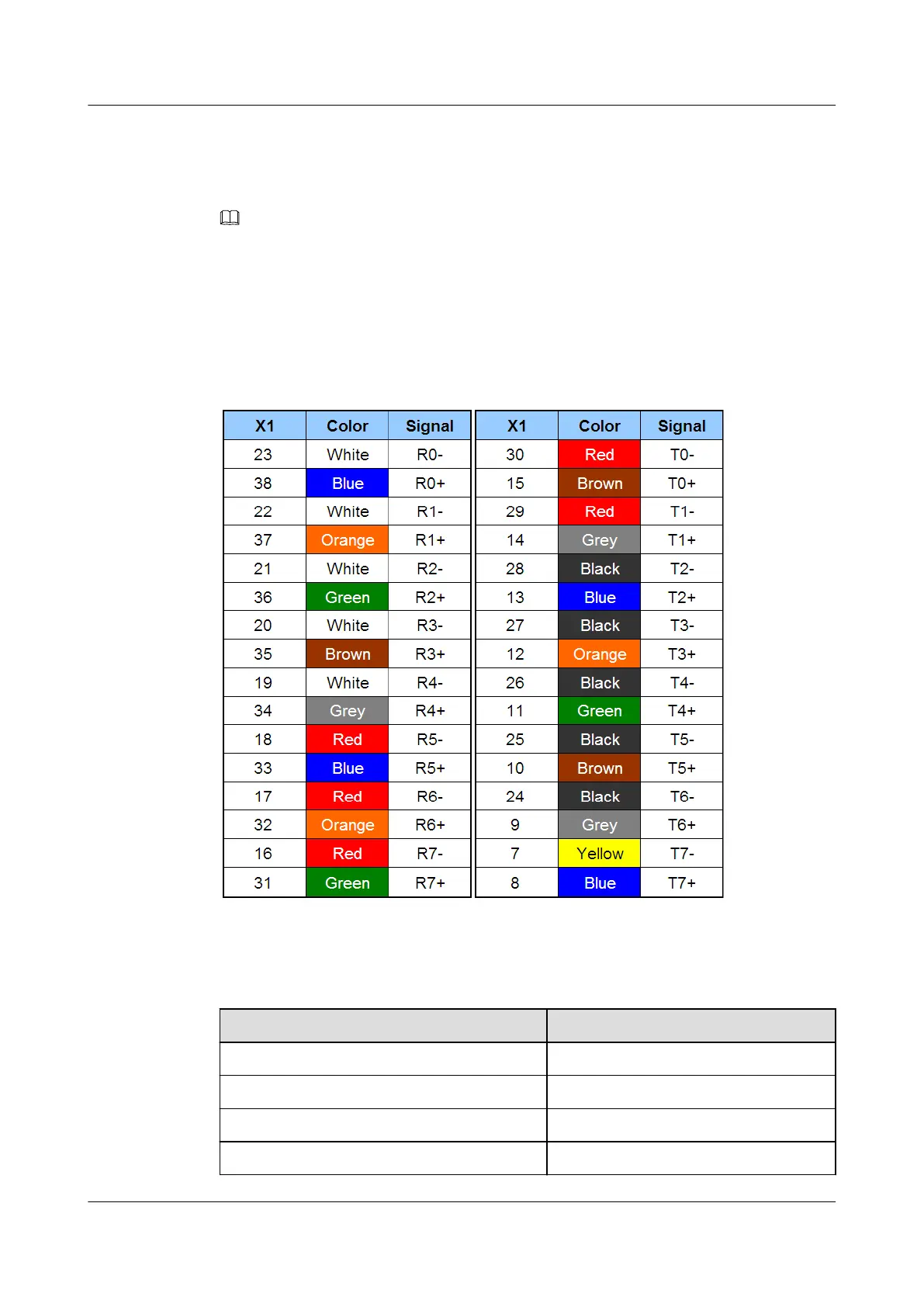

Pin Assignments
NOTE
A 120-ohm E1 trunk cable is a twisted pair cable consisting of two wires.
"Rx/Tx Channel" in the following table indicates that the transmitting is from the board and the
receiving is to the board.
l R0-: negative pole on the receive end of channel 0 E1 signals
l R0+: positive pole on the receive end of channel 0 E1 signals
l T0-: negative pole on the transmit end of channel 1 E1 signals
l T0+: positive pole on the transmit end of channel 1 E1 signals
Technical Specifications
Specification
Description
Connector DB44 connector
Cable type Symmetrical twisted pair
Characteristic impedance 120.0 ohms
Core diameter of the inner conductor 0.50 mm
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
894
