Cable Connector

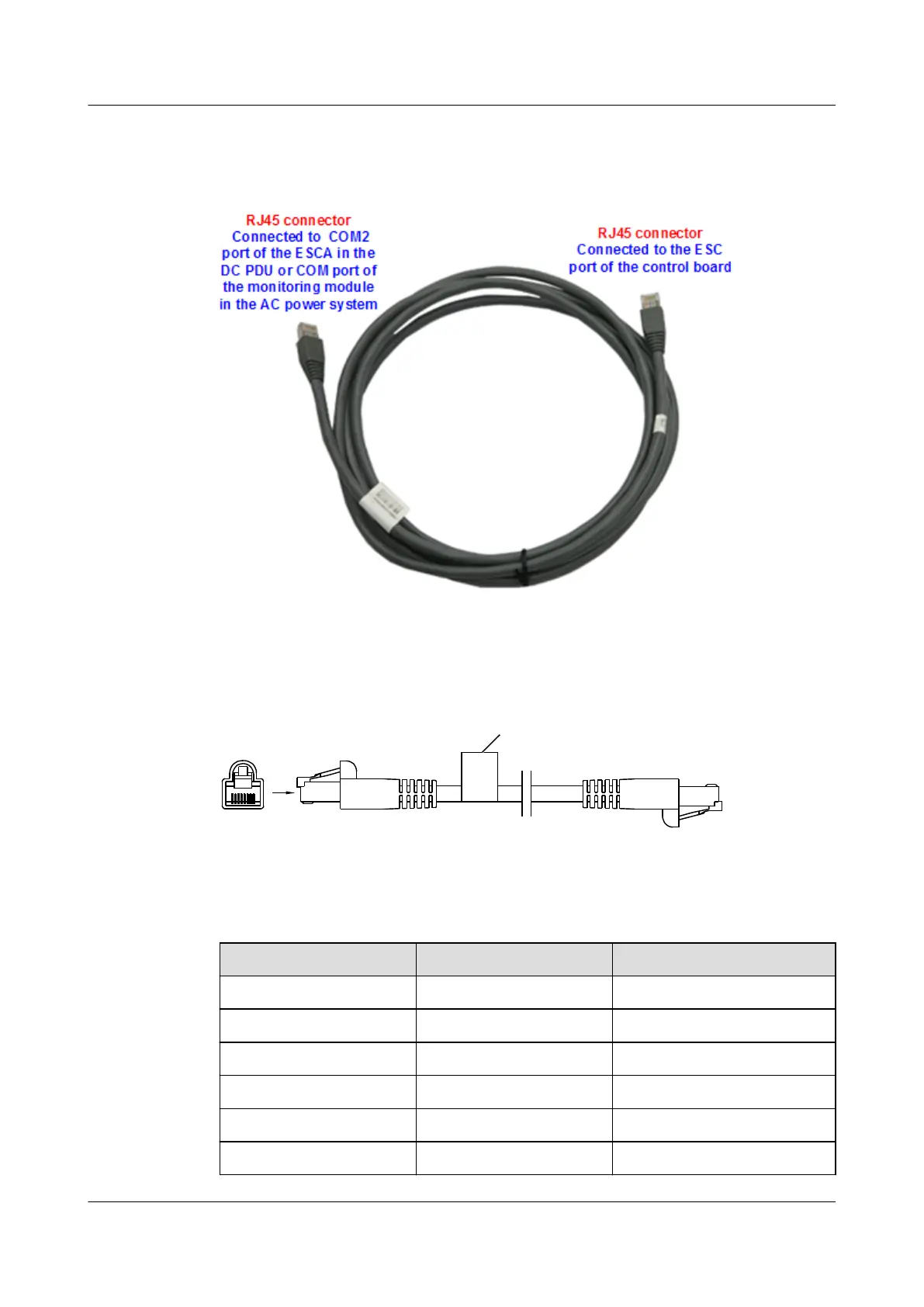

Figure 5-9 Appearance of a network cable
Cable Structure
Main label
X1
X2
View A
A
1 8
Pin Assignments
X1 Pin
Wire Color X2 Pin
2 Orange 2
1 White and orange 1
6 Green 6
3 White and green 3
4 Blue 4
5 White and blue 5
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
5 Cable
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
903
